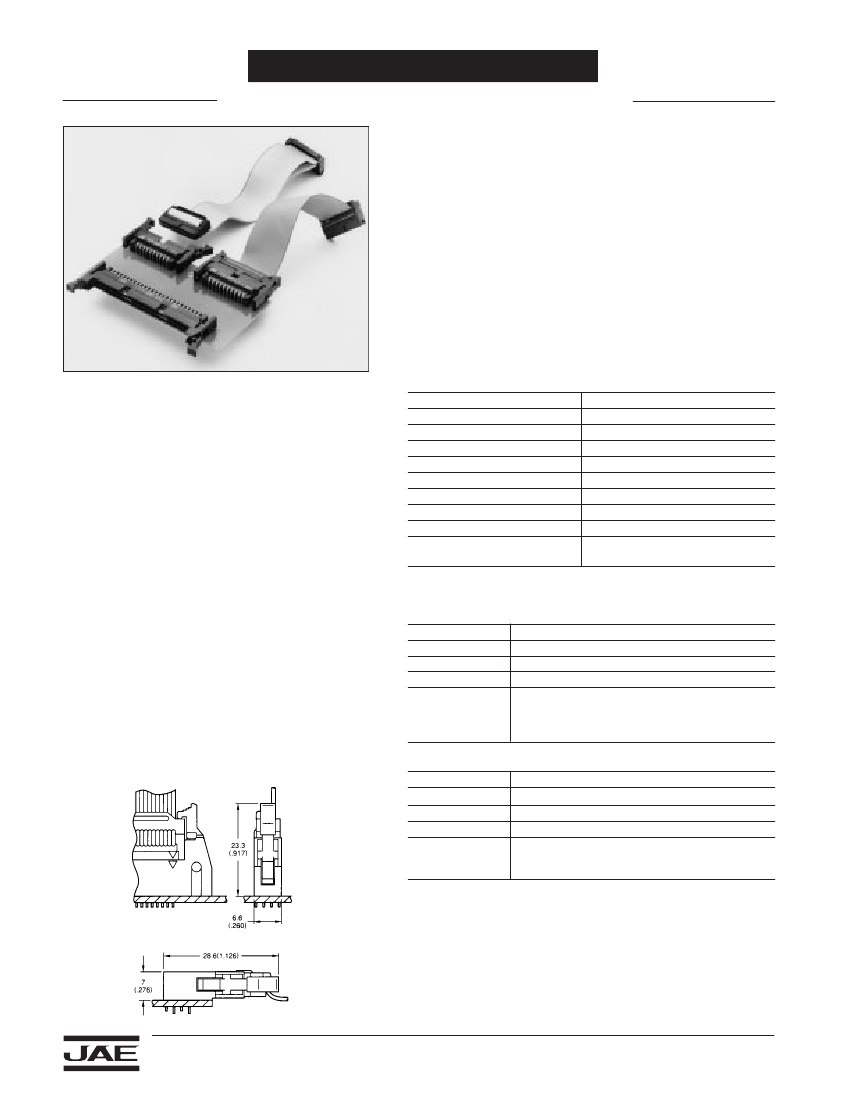

TX1/TX2/TX3 SERIES CONNECTORS
1.27mm (.050") Contact Spacing, PCB-to-Cable Connectors
• • • • • • • • • • • • • •
TX 1 to 3 Series connectors are two-piece PCB connectors
with 1.27mm (.050") contact spacing.
They are designed for board-to-cable applications.
Configurations include IDC sockets (TX1 and TX2) for flat ribbon
cable; and pin headers (TX3) with a latching mechanism.
Applications include computers, business machines, industrial
control machinery, telecommunications, audiovisual appliances,
measuring equipment, and applications wherever high density
packaging is required.
GENERAL SPECIFICATIONS
FEATURES
s
IDC Socket (TX1/TX2)
Number of Contacts
Contact Spacing
Current Rating
Operating Voltage
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
Operating Temperature
Applicable PCB Thickness
Applicable F.R.C.: TX1
TX2
20, 26, 30, 34, 40, 50, 60, 68, 80, 100
1.27mm (.050"), Double row
0.5 Amps
250 VAC r.m.s.
500 VAC r.m.s. (for one minute)
100 megohms min.
25 milliohms max.
-40°C to + 80°C
1.6mm (.063")
0.635mm (.025") pitch: #30 AWG
1.27mm (.050") pitch: #28 AWG
• Flat ribbon cable centers:
0.635mm (.025") for TX1
1.27mm (.050") for TX2
• TX1 socket can be terminated in “daisy-chain”
style in the middle of the cable
• TX2 socket is terminated at the end of the two
stacked cables
• Socket contacts have dual-contact-point tuning
fork design
• All wires can be terminated in a single action
(Insulation is automatically removed)
s
Pin Header With Latch (TX3)
MATERIALS AND FINISHES
TX1/TX2
Description
Insulator
Strain Relief
Cover
Contact
(Note)
• Available in straight and right angle through
hole types
• Self-locking, self-ejecting lever for easy
operation
Connector Profile (Ref.)
Materials/Finishes
PBT (UL94V-0, Black)
Glass-filled Nylon (UL94V-0, Black)
Glass-filled Nylon (UL94V-0, Black)
Beryllium Copper
Connecting area: Gold plating over Nickel
IDC Terminal area: Tin plating
Other areas: Gold flash over Nickel
TX3
Description
Insulator
Expansion Post
Lever (TX3)
Contact
(Note)
Materials/Finishes
PBT (UL94V-0, Black)
Phosphor Bronze/Tin plating
Nylon (UL94V-0, Black)
Phosphor Bronze
Connecting area: Gold plating over Nickel
Terminal area: Tin plating
Note: Contact finish – Gold plating on connecting area is 0.1µm (.000004") min.
Dimensions in mm (inches).
Dimensions and specifications subject to change without notice.
TX1/TX2/TX3 SERIES CONNECTORS
1.27mm (.050") Contact Spacing, PCB-to-Cable Connectors
ORDERING INFORMATION
TX
*
–
**
*
–
D2
**
* –
*
*
*
*
Series
Connector Type
1 – IDC Socket, .635mm (.025") pitch cable
2 – IDC Socket, 1.27mm (.050") pitch cable
3 – Pin Header with latch
No. of Contacts
20, 26, 30, 34, 40, 50, 60, 68, 80, 100
Contact Type
S – Socket (TX1, TX2)
P – Pin (TX3)
Contact Arrangement
D2 – Double Row
Termination
P – IDC
LT – Right Angle Through Hole
ST – Straight Through Hole
Applicable Wire
1 – #30 AWG (TX1)
#28 AWG (TX2)
Latch Type (TX3)
L – Standard Latch
S – Short Latch
Expansion Post (TX3)
H – With Post
N – Without Post
Contact Finish Code
1 – 0.1µm (.000004") thick gold plating min.
Cover Style
C – Closed End (TX2)
D – Daisy Chain (TX1)
Dimensions in mm (inches).
TX1/TX2/TX3 SERIES CONNECTORS
1.27mm (.050") Contact Spacing, PCB-to-Cable Connectors
IDC TYPE SOCKET (FOR FLAT RIBBON CABLE)
TX1—For 0.635mm (.025") Pitch Cable
B
C
0.635 (.025)
(cable pitch)
12.7 (.500)
REF.
10.2 (.402)
±
0.25 (.010)
5.9 (.232)
±
0.2 (.008)
2.54
(.100) 5.8 (.228)
±
0.15 (.006)
4.1
(.161)
Before Termination
4 (.157)
(See Note 1)
A
1.27 (.050)
±
0.1 (.004)
(contact pitch)
4.9
(.193)
0.8
(.031)
Note 1: For 80 and 100 position connectors, two polarizing bosses are provided. For other contact arrangements,
one polarizing boss is provided at the center.
• STRAIN RELIEF: TX1-SR**
2
(.079)
APPLICABLE CABLE WIRE
(0.635mm/.025" pitch)
A
0.8
(.031)
3.6
(.142)
5.9
(.232)
10.2
5.4
(.402) (.213)
B
Connector
7.7
(.303)
1. Conductor: #30 AWG wire, 7 strands of
0.102mm (.004") diameter,
tin plated soft copper.
#30 AWG wire, solid of 0.254mm
(.010") diameter, tin plated
soft copper.
2. Insulation: Soft polyvinyl chroride (PVC)
or Teflon, 0.7mm (.028") max.
thickness.
APPLICABLE IDC TOOL
Strain Relief
Pneumatic, semi-automatic, IDC tool: SP399-2-TX1
Hand IDC tool: SP299-2-TX1
Cable
Socket
TX1 - *S - D2P1 - 1D
No. of
Contacts
20
26
30
34
40
50
60
68
80
100
Part Number
TX1- 20S-D2P1-1D
TX1- 26S-D2P1-1D
TX1- 30S-D2P1-1D
TX1- 34S-D2P1-1D
TX1- 40S-D2P1-1D
TX1- 50S-D2P1-1D
TX1- 60S-D2P1-1D
TX1- 68S-D2P1-1D
TX1- 80S-D2P1-1D
TX1-100S-D2P1-1D
A
±
0.15 (± .006)
11.43 ( .450)
15.24 ( .600)
17.78 ( .700)
20.32 ( .800)
24.13 ( .950)
30.48 ( 1.200)
36.83 ( 1.450)
41.91 ( 1.650)
49.53 ( 1.950)
62.23 ( 2.450)
B
+0.1 +.004
-0.2 -.008
C
(
)
12.065 ( .475)
15.875 ( .625)
18.415 ( .725)
20.955 ( .825)
24.765 ( .975)
31.115 ( 1.225)
37.465 ( 1.475)
42.545 ( 1.675)
50.165 ( 1.975)
62.865 ( 2.475)
Strain Relief
Part Number
TX1-SR 20
TX1-SR 26
TX1-SR 30
TX1-SR 34
TX1-SR 40
TX1-SR 50
TX1-SR 60
TX1-SR 68
TX1-SR 80
TX1-SR100
A
±
0.1 (± .004)
17.43 ( .686)
21.24 ( .836)
23.78 ( .936)
26.32 ( 1.036)
30.13 ( 1.186)
36.48 ( 1.436)
42.83 ( 1.686)
47.91 ( 1.886)
55.53 ( 2.186)
68.23 ( 2.686)
B
±
0.1 (± .004)
13.00 ( .512)
16.81 ( .662)
19.35 ( .762)
21.89 ( .862)
25.70 (1.012)
32.05 (1.262)
38.40 (1.512)
43.48 (1.712)
51.10 (2.012)
63.80 (2.512)
17.4 ( .685)
21.2 ( .835)
23.8 ( .937)
26.3 ( 1.035)
30.1 ( 1.185)
36.5 ( 1.437)
42.8 ( 1.685)
47.9 ( 1.886)
55.5 ( 2.185)
68.2 ( 2.685)
Dimensions in mm (inches).
TX1/TX2/TX3 SERIES CONNECTORS
1.27mm (.050") Contact Spacing, PCB-to-Cable Connectors
IDC TYPE SOCKET (FOR FLAT RIBBON CABLE)
TX2—For 1.27mm (.050") Pitch Cable
B
1.27 (.050)
±
0.1 (.004)
(cable pitch)
12.7 (.500)
REF.
10.2 (.402)
±
0.25 (.010)
5.9 (.232)
±
0.2 (.008)
5.8 (.228)
Before Termination
4 (.157)
(See Note 1)
A
1.27 (.050)
±
0.1 (.004)
(contact pitch)
±
0.15 (.006)
4.1
(.161)
0.8
(.031)
4.9
(.193)
Note 1: For 80 and 100 position connectors, two polarizing bosses are provided. For other contact arrangements,
one polarizing boss is provided at the center.
• STRAIN RELIEF: TX2-SR**
2
(.079)
APPLICABLE CABLE WIRE
(1.27mm/.050" pitch)
3.6
(.142)
2.1
(.083)
A
5.9
(.232)
5.4
(.213)
B
Applicable Connector
1. Conductor: #28 AWG wire, 7 strands of
0.12mm (.005") or 0.127mm (.0049")
diameter, tin plated soft copper.
#28 AWG wire, solid of 0.32mm
(.013") diameter, tin plated
soft copper.
2. Insulation: Soft polyvinyl chroride (PVC)
or Teflon, 0.88 to 1.0mm (.035 to .039")
thickness.
APPLICABLE IDC TOOL
Strain Relief
7.7
(.303)
10.2
(.402)
Pneumatic, semi-automatic, IDC tool: SP399-2-TX2
Hand IDC tool: SP299-2-TX2
Cable
Socket
TX2 - *S - D2P1 - 1C
No. of
Contacts
20
26
30
34
40
50
60
68
80
100
Part Number
TX2- 20S-D2P1-1C
TX2- 26S-D2P1-1C
TX2- 30S-D2P1-1C
TX2- 34S-D2P1-1C
TX2- 40S-D2P1-1C
TX2- 50S-D2P1-1C
TX2- 60S-D2P1-1C
TX2- 68S-D2P1-1C
TX2- 80S-D2P1-1C
TX2- 100S-D2P1-1C
A
±
0.15 (± .006)
11.43 ( .450)
15.24 ( .600)
17.78 ( .700)
20.32 ( .800)
24.13 ( .950)
30.48 ( 1.200)
36.83 ( 1.450)
41.91 ( 1.650)
49.53 ( 1.950)
62.23 ( 2.450)
B
+0.1 +.004
-0.2 -.008
17.4 ( .685)
2.54
(.100)
(
)
Strain Relief
Part Number
TX2-SR 20
TX2-SR 26
TX2-SR 30
TX2-SR 34
TX2-SR 40
TX2-SR 50
TX2-SR 60
TX2-SR 68
TX2-SR 80
TX2-SR100
A
±
0.1 (± .004)
17.43 ( .686)
21.24 ( .836)
23.78 ( .936)
26.32 ( 1.036)
30.13 ( 1.186)
36.48 ( 1.436)
42.83 ( 1.686)
47.91 ( 1.886)
55.53 ( 2.186)
68.23 ( 2.686)
B
±
0.1 (± .004)
13.00 ( .512)
16.81 ( .662)
19.35 ( .762)
21.89 ( .862)
25.70 (1.012)
32.05 (1.262)
38.40 (1.512)
43.48 (1.712)
51.10 (2.012)
63.80 (2.512)
21.2 ( .835)
23.8 ( .937)
26.3 ( 1.035)
30.1 ( 1.185)
36.5 ( 1.437)
42.8 ( 1.685)
47.9 ( 1.886)
55.5 ( 2.185)
68.2 ( 2.685)
Dimensions in mm (inches).
TX1/TX2/TX3 SERIES CONNECTORS
1.27mm (.050") Contact Spacing, PCB-to-Cable Connectors

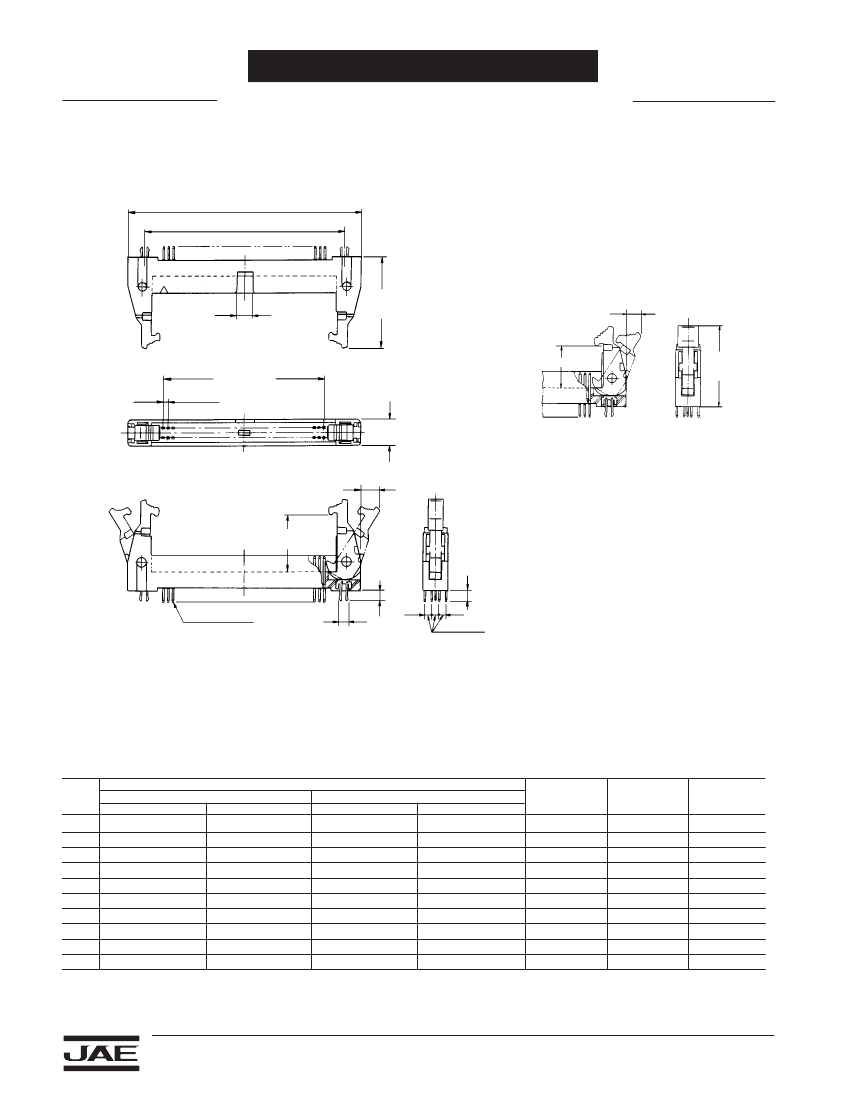

PIN HEADER WITH LATCHING MECHANISM
TX3-ST—Straight Through Hole Type
STANDARD LATCH TYPE
D
C
±
0.2 (.008)
23.3 (.917)
REF.
SHORT LATCH TYPE
3.6 (.142)
REF.
4.2 (.165)
(See Note 2)
6.6 (.260)
1.27 (.050)
±
0.1 (.004)
(pitch)
±
0.2 (.008)
A
±
0.15 (.006)
4.8
4.3
(.189) (.169)
11 (.433)
±
0.25 (.010)
Note: For short lever type, do not use strain relief
on the mating IDC socket connector.
5 (.197)
REF.
14.6 (.575)
±
0.25 (.010)
2.5 (.098)
0.4 (.016) square
2.4 (.094)
(Note 1)
1.905 (.075)
Note 1: Above figure shows the connector with expansion post. Without-expansion-
post type is also available.
Note 2: For 80 and 100 position connectors, two polarizing keyways are provided. For
other contact arrangements, one polarizing keyway is provided at the center.
• Refer to PCB Mounting Hole Dimension Illustration.
No. of
Contacts
20
26
30
34
40
50
60
68
80
100
Part Number
Short Latch Type
Standard Latch Type
With Expansion Post
Without Expansion Post
Without Expansion Post
With Expansion Post
TX3- 20P-D2ST-LH1
TX3- 26P-D2ST-LH1
TX3- 30P-D2ST-LH1
TX3- 34P-D2ST-LH1
TX3- 40P-D2ST-LH1
TX3- 50P-D2ST-LH1
TX3- 60P-D2ST-LH1
TX3- 68P-D2ST-LH1
TX3- 80P-D2ST-LH1
TX3- 100P-D2ST-LH1
TX3- 20P-D2ST-LN1
TX3- 26P-D2ST-LN1
TX3- 30P-D2ST-LN1
TX3- 34P-D2ST-LN1
TX3- 40P-D2ST-LN1
TX3- 50P-D2ST-LN1
TX3- 60P-D2ST-LN1
TX3- 68P-D2ST-LN1
TX3- 80P-D2ST-LN1
TX3- 100P-D2ST-LN1
TX3- 20P-D2ST-SH1
TX3- 26P-D2ST-SH1
TX3- 30P-D2ST-SH1
TX3- 34P-D2ST-SH1
TX3- 40P-D2ST-SH1
TX3- 50P-D2ST-SH1
TX3- 60P-D2ST-SH1
TX3- 68P-D2ST-SH1
TX3- 80P-D2ST-SH1
TX3- 100P-D2ST-SH1
TX3- 20P-D2ST-SN1
TX3- 26P-D2ST-SN1
TX3- 30P-D2ST-SN1
TX3- 34P-D2ST-SN1
TX3- 40P-D2ST-SN1
TX3- 50P-D2ST-SN1
TX3- 60P-D2ST-SN1
TX3- 68P-D2ST-SN1
TX3- 80P-D2ST-SN1
TX3- 100P-D2ST-SN1
2.8 (.110)
±
0.2 (.008)
±
0.25 (.010)
A
11.43 ( .450)
15.24 ( .600)
17.78 ( .700)
20.32 ( .800)
24.13 ( .950)
30.48 ( 1.200)
36.83 ( 1.450)
41.91 ( 1.650)
49.53 ( 1.950)
62.23 ( 2.450)
C
21.59 ( .850)
25.40 ( 1.000)
27.94 ( 1.100)
30.48 ( 1.200)
34.29 ( 1.350)
40.64 ( 1.600)
46.99 ( 1.850)
52.07 ( 2.050)
59.69 ( 2.350)
72.39 ( 2.850)
D
±
0.4 (± .016)
30.4 (1.197)
34.2 (1.346)
36.8 (1.449)
39.3 (1.547)
43.1 (1.697)
49.5 (1.949)
55.8 (2.197)
60.9 (2.398)
68.5 (2.697)
81.2 (3.197)
Dimensions in mm (inches).
20.9 (.823)
REF.
京公网安备 11010802033920号
EEWORLD
