PCS73-120M-RC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> PCS73-120M-RC

Preview

PCS73-120M-RC: Description1 ELEMENT, 12 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size89KB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

PCS73-120M-RC Overview

1 ELEMENT, 12 uH, GENERAL PURPOSE INDUCTOR, SMD

PCS73-120M-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	2929
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	2929
DC Resistance	0.098 Ω
Nominal inductance(L)	12 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	1.52 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

RoHS

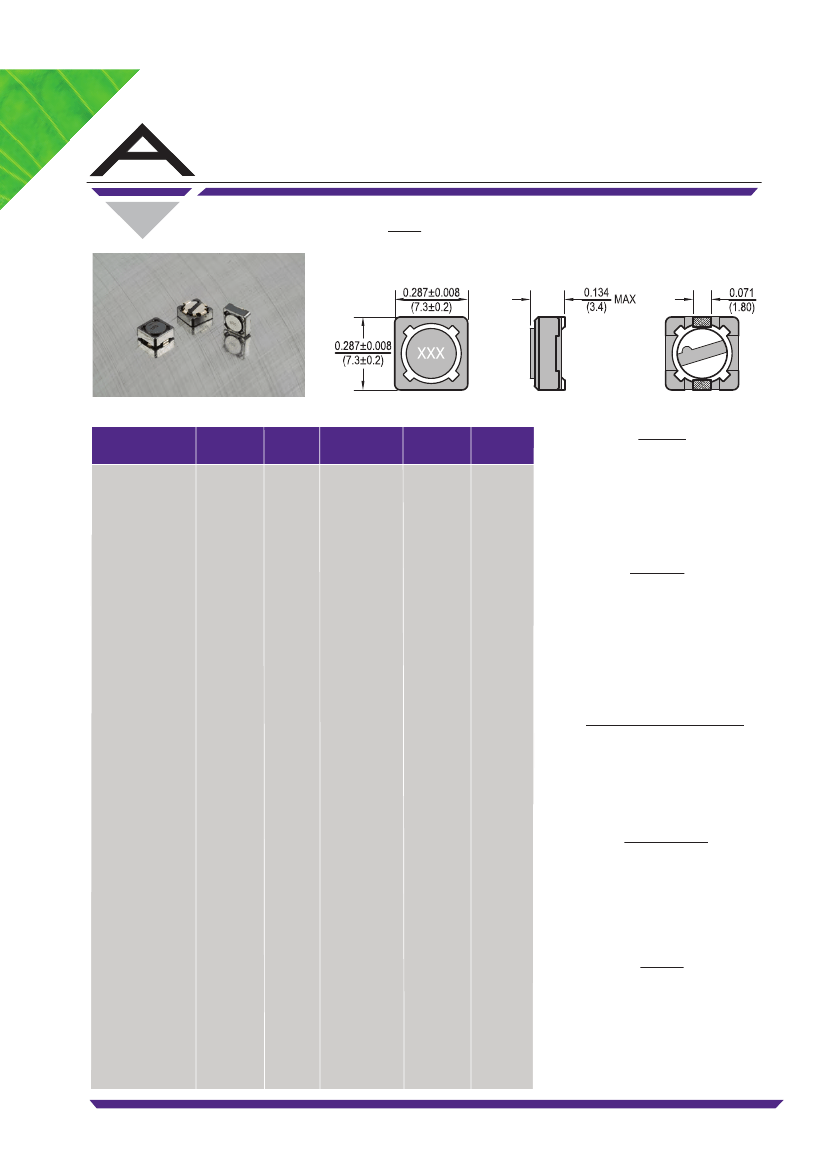

Power Chip Shielded Inductors

Dimensions:

Inches

(mm)

PCS73

Allied

Part

Number

Inductance

(µh)

Tolerance

(%)

Test

Freq.

KHZ, 1V

DCR

(Ω)

MAX

Rated

Current

(A)

Features

•

Magnetically Shielded

Low DC Resistance

High Energy Storage

Low Energy Loss

Suitable for pick and place

PCS73-2R2M-RC

PCS73-3R3M-RC

PCS73-4R7M-RC

PCS73-6R8M-RC

PCS73-100M-RC

PCS73-120M-RC

PCS73-150M-RC

PCS73-180M-RC

PCS73-220M-RC

PCS73-270M-RC

PCS73-330M-RC

PCS73-390M-RC

PCS73-470M-RC

PCS73-560M-RC

PCS73-680M-RC

PCS73-820M-RC

PCS73-101M-RC

PCS73-121M-RC

PCS73-151M-RC

PCS73-181M-RC

PCS73-221M-RC

PCS73-271M-RC

PCS73-331M-RC

PCS73-391M-RC

PCS73-471M-RC

PCS73-561M-RC

PCS73-681M-RC

PCS73-821M-RC

PCS73-102M-RC

2.2

3.3

4.7

6.8

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

390

470

560

680

820

1000

20

1

0.03

0.04

0.03

.060

.072

.098

0.13

0.14

0.19

0.21

0.24

0.32

0.36

0.47

0.52

0.69

0.79

0.89

1.27

1.45

1.65

2.31

2.62

2.94

4.18

4.67

5.73

6.54

9.44

4.00

3.70

3.78

2.00

1.68

1.52

1.33

1.20

1.07

0.96

0.91

0.77

0.76

0.68

0.61

0.57

0.50

0.49

0.43

0.39

0.35

0.32

0.28

0.26

0.24

0.22

0.19

0.18

0.16

Electrical

Inductance Range:

2.2µh to 1000µh

Tolerance:

20% over entrie range, also

available in 10%

Test Frequency:

1KHz, 1V

Operating Temp:

-40ºC ~ 85ºC

IDC:

Inductance Drop 35% Typ. at rated IDC

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 Min.

Solder Composition:

SN/Ag3.0/Cu0.5

Solder Temp:

260ºC ± 5ºC

Immersion time:

10 sec. ± 1 sec.

Test Equipment

(L):

HP 4192A LF Impedance Analyzer

(RDC):

Chen Hwa 502

(IDC):

Chen Hwa 1061 + Chen Hwa 301A

or HP4284A + HP42841A

Physical

Packaging:

1600 pieces per 13 inch reel.

Marking:

EIA Inductance Code

All specifications are subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

15

REVISED 3/01/11

www.alliedcomponents.com
