PCS8D43-150N-RC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PCS8D43-150N-RC

PCS8D43-150N-RC: Description1 ELEMENT, 15 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size91KB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

PCS8D43-150N-RC Overview

1 ELEMENT, 15 uH, GENERAL PURPOSE INDUCTOR, SMD

PCS8D43-150N-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	3333
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	3333
DC Resistance	0.053 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	2.9 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

RoHS

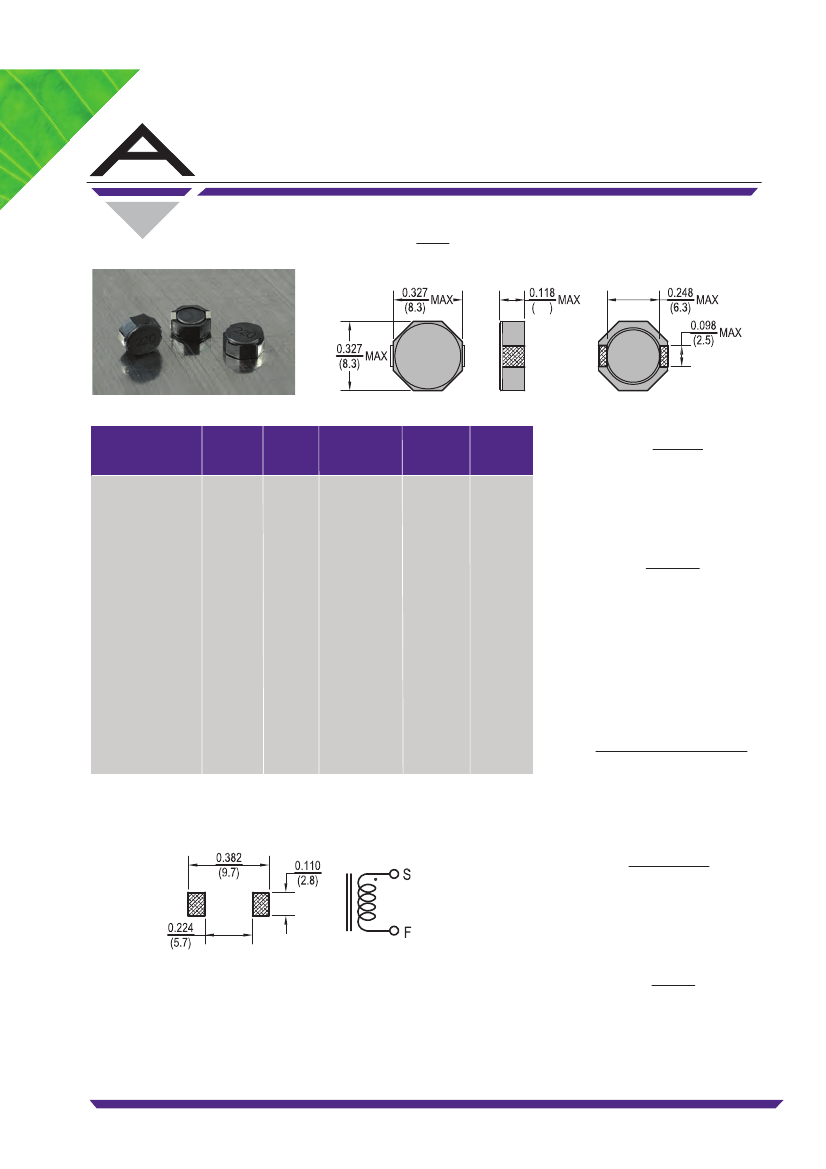

Shielded Power Chip Inductor

Dimensions:

Inches

(mm)

PCS8D43

4.5

Allied

Part

Number

Inductance

(µh)

Tolerance

(%)

Test

Freq.

KHz, 0.1V

RDC

(mΩ)

Max.

Rated

Current

(A) Max

Features

• SMD Power Inductor

• Magnetically shielded

• Low DC resistance

• High Current

• Ideal for DC-DC converter applications

Electrical

PCS8D43-R68N-RC

PCS8D43-1R2N-RC

PCS8D43-2R0N-RC

PCS8D43-3R9N-RC

PCS8D43-4R7N-RC

PCS8D43-6R8N-RC

PCS8D43-100N-RC

PCS8D43-150N-RC

PCS8D43-220N-RC

PCS8D43-330N-RC

PCS8D43-470N-RC

PCS8D43-680N-RC

PCS8D43-101N-RC

.68

1.2

2.0

3.9

4.7

6.8

100

9.5

12.2

125

150

240

360

9.00

8.00

7.00

5.90

5.60

4.40

4.00

2.90

2.60

2.20

1.80

1.50

1.30

Inductance Range:

.68µh to 100µh,

Available in additional values

Tolerance:

30% over entire range

Also, available in tighter tolerances

Operating Temp:

-40ºC ~ +85ºC

Storage Temp:

-40ºC ~ +125ºC

Rated Current:

Current at which inductance

drop by no more than 35% of intial value or the

temperature has risen by 40ºC which ever occurs fi

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 Min.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC +/- 5ºC for

10 sec. +/- 1 sec.

Tolerance: also available in: K=10% and M=20%

All specifications subject to change wtihout notice.

Test Equipment

(L):

HP4287 LCR Meter or equal

(RDC): CH502BC or equal

(Current):

VR126G / 7220 Meter

Physical

Packaging:

800 pieces per 13 inch reel.

Marking:

EIA Inductance Code

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 12/17/10

www.alliedcomponents.com
