PCS8D43-3R9N-RC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> PCS8D43-3R9N-RC

Preview

PCS8D43-3R9N-RC: Description1 ELEMENT, 3.9 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size91KB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

PCS8D43-3R9N-RC Overview

1 ELEMENT, 3.9 uH, GENERAL PURPOSE INDUCTOR, SMD

PCS8D43-3R9N-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	3333
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	3333
DC Resistance	0.019 Ω
Nominal inductance(L)	3.9 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	5.9 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

RoHS

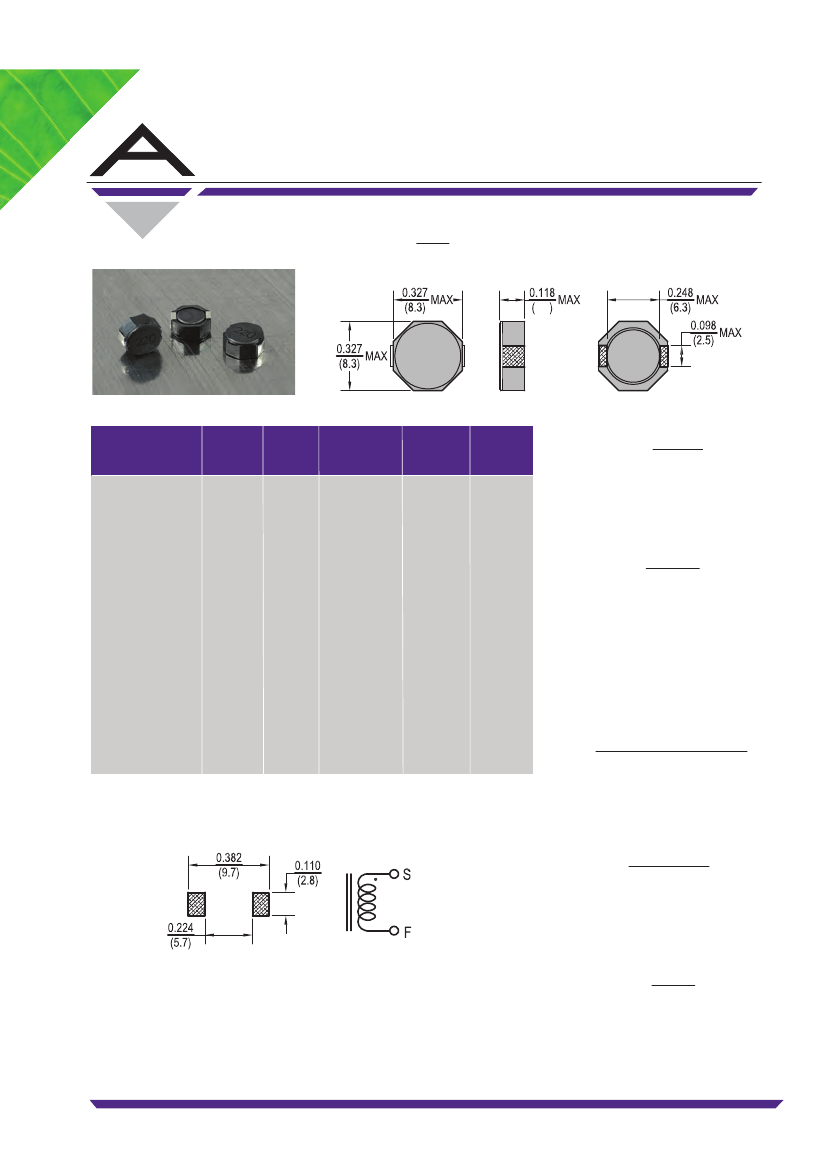

Shielded Power Chip Inductor

Dimensions:

Inches

(mm)

PCS8D43

4.5

Allied

Part

Number

Inductance

(µh)

Tolerance

(%)

Test

Freq.

KHz, 0.1V

RDC

(mΩ)

Max.

Rated

Current

(A) Max

Features

• SMD Power Inductor

• Magnetically shielded

• Low DC resistance

• High Current

• Ideal for DC-DC converter applications

Electrical

PCS8D43-R68N-RC

PCS8D43-1R2N-RC

PCS8D43-2R0N-RC

PCS8D43-3R9N-RC

PCS8D43-4R7N-RC

PCS8D43-6R8N-RC

PCS8D43-100N-RC

PCS8D43-150N-RC

PCS8D43-220N-RC

PCS8D43-330N-RC

PCS8D43-470N-RC

PCS8D43-680N-RC

PCS8D43-101N-RC

.68

1.2

2.0

3.9

4.7

6.8

10

15

22

33

47

68

100

30

100

9.5

12.2

14

19

22

25

36

53

75

125

150

240

360

9.00

8.00

7.00

5.90

5.60

4.40

4.00

2.90

2.60

2.20

1.80

1.50

1.30

Inductance Range:

.68µh to 100µh,

Available in additional values

Tolerance:

30% over entire range

Also, available in tighter tolerances

Operating Temp:

-40ºC ~ +85ºC

Storage Temp:

-40ºC ~ +125ºC

Rated Current:

Current at which inductance

drop by no more than 35% of intial value or the

temperature has risen by 40ºC which ever occurs fi

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 Min.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC +/- 5ºC for

10 sec. +/- 1 sec.

Tolerance: also available in: K=10% and M=20%

All specifications subject to change wtihout notice.

Test Equipment

(L):

HP4287 LCR Meter or equal

(RDC): CH502BC or equal

(Current):

VR126G / 7220 Meter

Physical

Packaging:

800 pieces per 13 inch reel.

Marking:

EIA Inductance Code

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

15

REVISED 12/17/10

www.alliedcomponents.com
