PCSDW125-680M-RC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PCSDW125-680M-RC

PCSDW125-680M-RC: Description2 ELEMENT, 68 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size107KB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

PCSDW125-680M-RC Overview

2 ELEMENT, 68 uH, GENERAL PURPOSE INDUCTOR, SMD

PCSDW125-680M-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	4747
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	4747
DC Resistance	0.28 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum rated current	2.62 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

RoHS

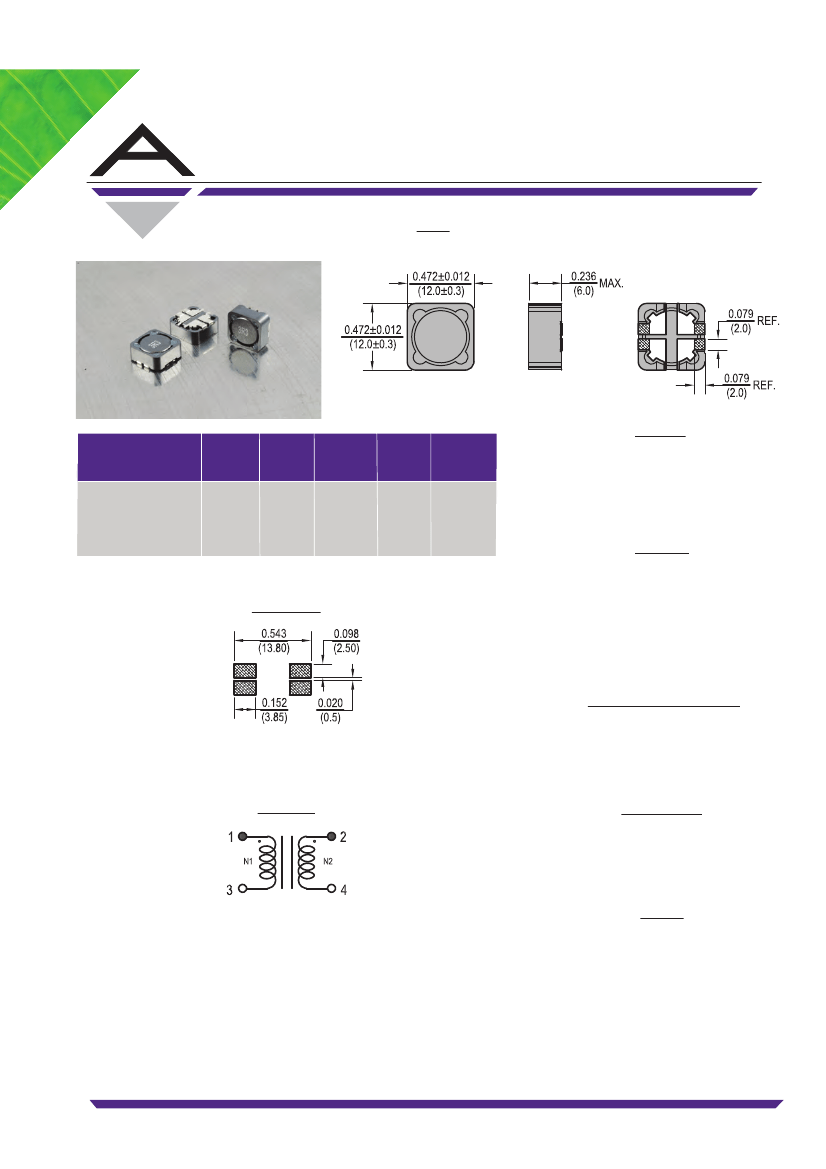

SMD COMMON MODE POWER INDUCTORS

PCSDW125

Dimensions:

Inches

(mm)

Features

Allied

Part

Number

Inductance

(

µh)

Tolerance

(%)

Test

Freq.

KHz, 0.25V

DCR

(Ω)

Rated

Current

(A)

• Small SMD common mode choke

• Suitable for reflow soldering

• Low DCR

• Suitable for pick and place

PCSDW125-3R3M-RC

PCSDW125-220M-RC

PCSDW125-680M-RC

PCSDW125-821M-RC

3.3

100

0.0076

0.1020

0.2800

0.7700

12.700

4.710

2.620

1.490

Electrical

Inductance Range:

3.3µh to 820µh

Tolerance:

20% over entire inductance range

Available in tighter tolerances

Operating Temp:

-55ºC ~ +125ºC

Rated Current:

Current at which the inductance

drops 35% of initial value or

∆

T=40ºC

whichever is lower

Land Pattern

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 Min.

Solder Temp:

260ºC +/- 5ºC

Immersion time:

10 sec. +/- 1 sec.

Schematic

Test Equipment

(L):

HP 4284A LCR meter or equivalent

(DCR):

HP 4338B Millohm meter or equivalent

(Rated Current):

3260N WK LCR Meter &

DC Bias 3265B WK

Physical

Packaging:

500 pieces per 13 inch reel.

Marking:

EIA Inductance Code.

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

05/10/10

www.alliedcomponents.com

PCSDW125-680M-RC Related Products

	PCSDW125-680M-RC	PCSDW125-3R3M-RC	PCSDW125-821M-RC	PCSDW125-220M-RC
Description	2 ELEMENT, 68 uH, GENERAL PURPOSE INDUCTOR, SMD	2 ELEMENT, 3.3 uH, GENERAL PURPOSE INDUCTOR, SMD	General Purpose Inductor, 81uH, 20%, 2 Element, SMD, 4747, CHIP, 4747, ROHS COMPLIANT	2 ELEMENT, 22 uH, GENERAL PURPOSE INDUCTOR, SMD
