PCAAF-16 datasheet, PDF - EEWORLD Datasheet

PCAAF-16: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size827KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

PCAAF-16 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max,

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Nominal attenuation	16 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	20 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	SILVER OVER NICKEL
Maximum voltage standing wave ratio	1.35

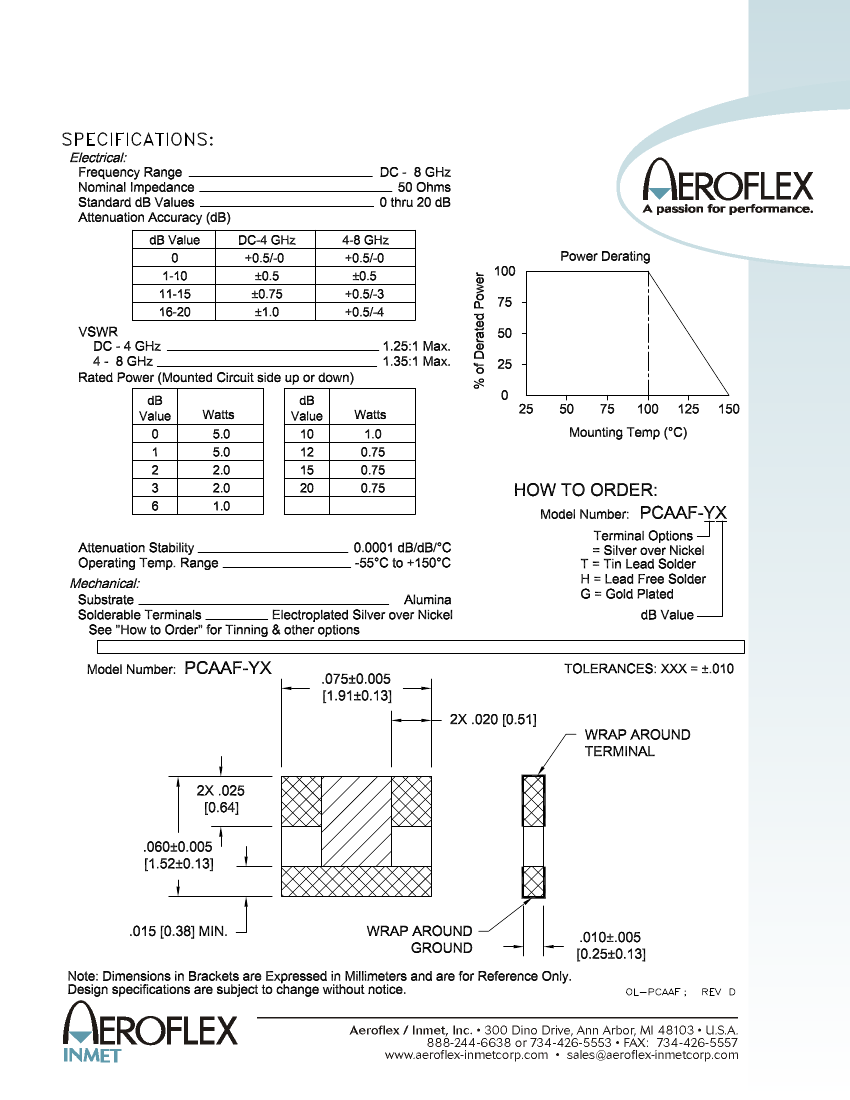

CHIP ATTENUATORS

PCAAF SERIES: DC - 8 GHz
