L115VEWG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L115VEWG

L115VEWG: DescriptionDual Color LED, High Efficiency Red/green, Diffused White, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size123KB，4 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L115VEWG Overview

Dual Color LED, High Efficiency Red/green, Diffused White, T-1, 3mm,

L115VEWG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	HIGH EFFICIENCY RED/GREEN
Configuration	COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED WHITE
Nominal luminous intensity	50.0/40.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	5 mm
method of packing	BULK
peak wavelength	627/565 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.0066 mm
perspective	60 deg

L115VEWG Preview

T-1(3mm) BI-COLOR INDICATOR LAMPS

L115VEGW

L115VEYW

L115VGYW

HIGH EFFICIENCY RED / GREEN

HIGH EFFICIENCY RED / YELLOW

GREEN / YELLOW

Features

UNIFORM

LOW

Description

LIGHT OUTPUT.

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

POWER CONSUMPTION.

WHITE DIFFUSION LENS.

COLOR (MIXED COLOR) AVAILABLE.

BRIGHT VERSION AVAILABLE.

MILKY

LEADS WITH ONE COMMON LEAD.

THIRD

SUPER

I.C.

COMPATIBLE.

LIFE - SOLID STATE RELIABILITY.

LONG

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: CDA0790

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: NOV/18/2001

DRAWN: Y.F.XU

PAGE: 1 OF 4

Selection Guide

Par t No .

Di c e

HIGH EFFICIENCY RED (GaAsP/GaP)

GREEN (GaP)

HIGH EFFICIENCY RED (GaAsP/GaP)

YELLOW (GaAsP/GaP)

GREEN (GaP)

YELLOW (GaAsP/GaP)

L en s Ty p e

Iv (mc d )

@ 20 mA

Min .

L115VEGW

WHITE DIFFUSED

Ty p .

View in g

An g l e

2θ1/2

60°

L115VEYW

WHITE DIFFUSED

60°

L115VGYW

WHITE DIFFUSED

60°

Note:

θ1/2

is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

Electrical / Optical Characteristics at T

)

=25°C

Sy m b o l

peak

∆λ

1/2

Par ameter

Peak Wavelength

Dev ic e

High Efficiency Red

Green

Yellow

High Efficiency Red

Green

Yellow

Ty p .

627

565

590

625

568

588

2.0

2.2

2.1

2.5

Max .

Un i t s

Tes t Co n d itio n s

IF=20mA

Dominate Wavelength

IF=20mA

High Efficiency Red

Spectral Line Halfwidth Green

Yellow

Capacitance

High Efficiency Red

Green

Yellow

High Efficiency Red

Green

Yellow

All

IF=20mA

VF=0V;f=1MHz

Forward Voltage

Reverse Current

IF=20mA

VR = 5V

Absolute Maximum Ratings at T

)

=25°C

Par ameter

Power dissipation

DC Forward Current

Peak Forward Current [1]

Reverse Voltage

Operating/Storage Temperature

Lead Solder Temperature [2]

Notes:

1. 1/10 Duty Cycle, 0.1ms Pulse Width.

2. 4mm below package base.

Hig h Effic ien c y Red

105

160

Gr een

105

140

-40

C To +85

°C

260

C For 5 Seconds

Yello w

105

140

Un i t s

SPEC NO: CDA0790

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: NOV/18/2001

DRAWN: Y.F.XU

PAGE: 2 OF 4

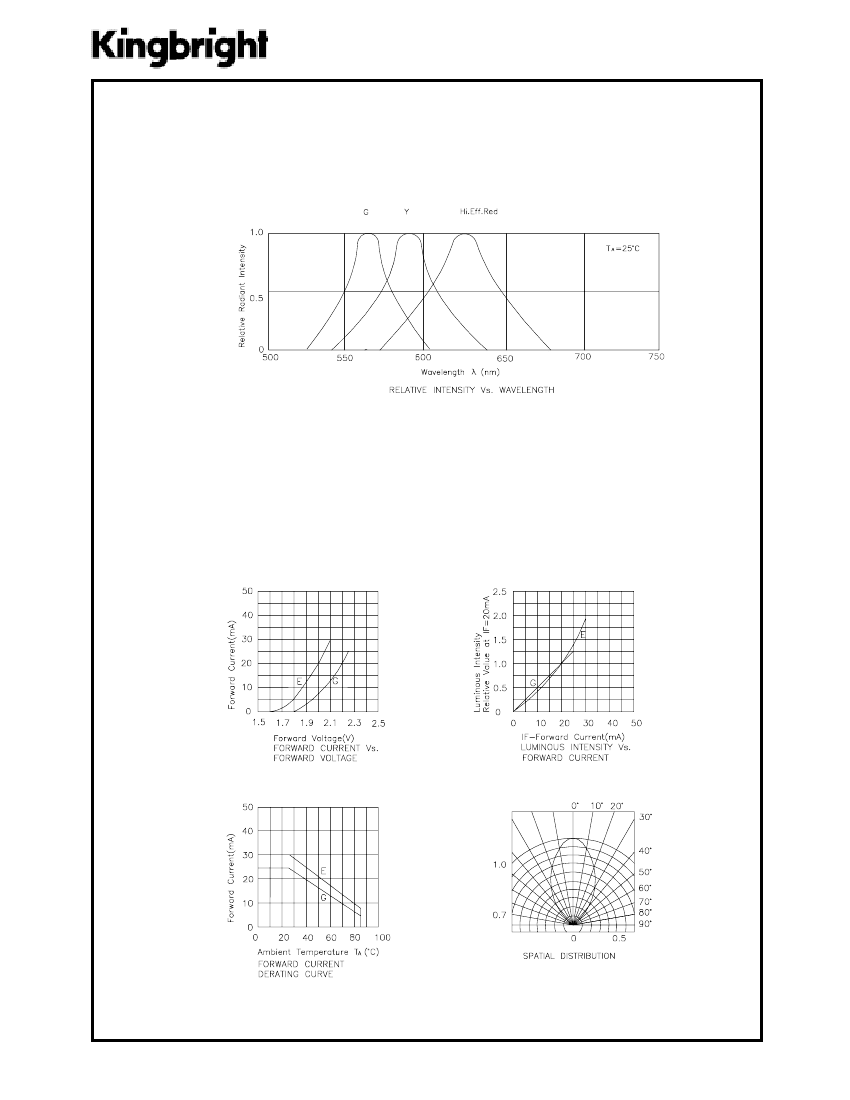

High Efficiency Red / Green L115VEGW

SPEC NO: CDA0790

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: NOV/18/2001

DRAWN: Y.F.XU

PAGE: 3 OF 4

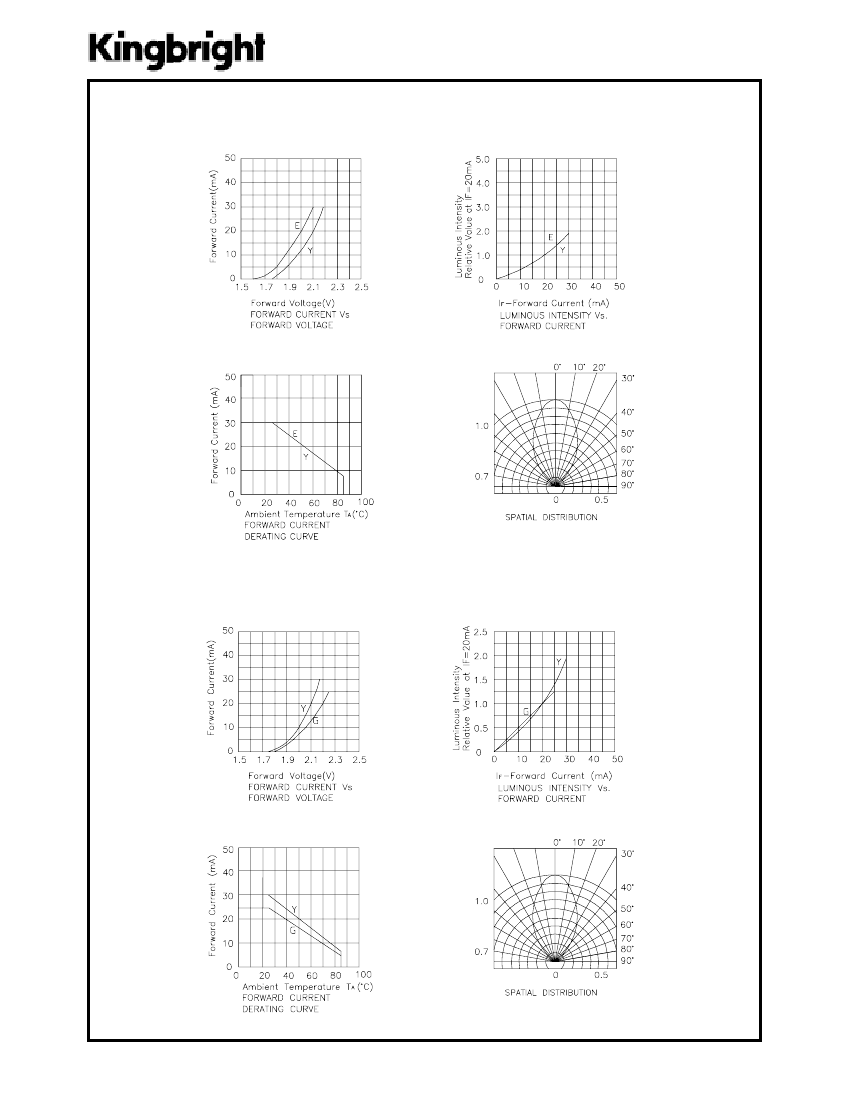

High Efficiency Red / Yellow L115VEYW

Green / Yellow L115VGYW

SPEC NO: CDA0790

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: NOV/18/2001

DRAWN: Y.F.XU

PAGE: 4 OF 4

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
