74ACT11979D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74ACT11979D

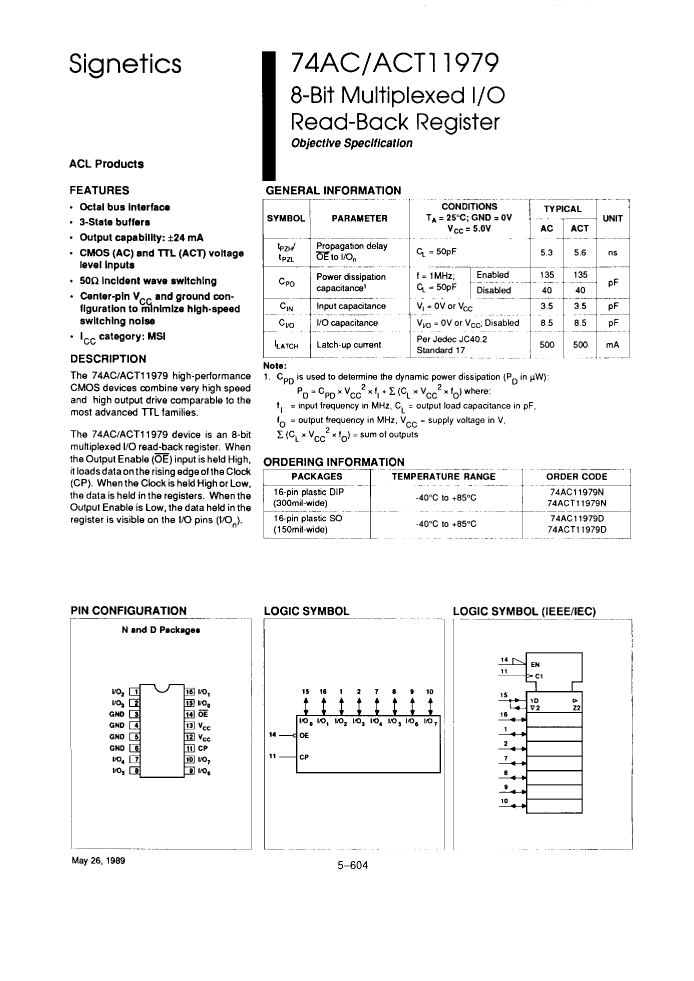

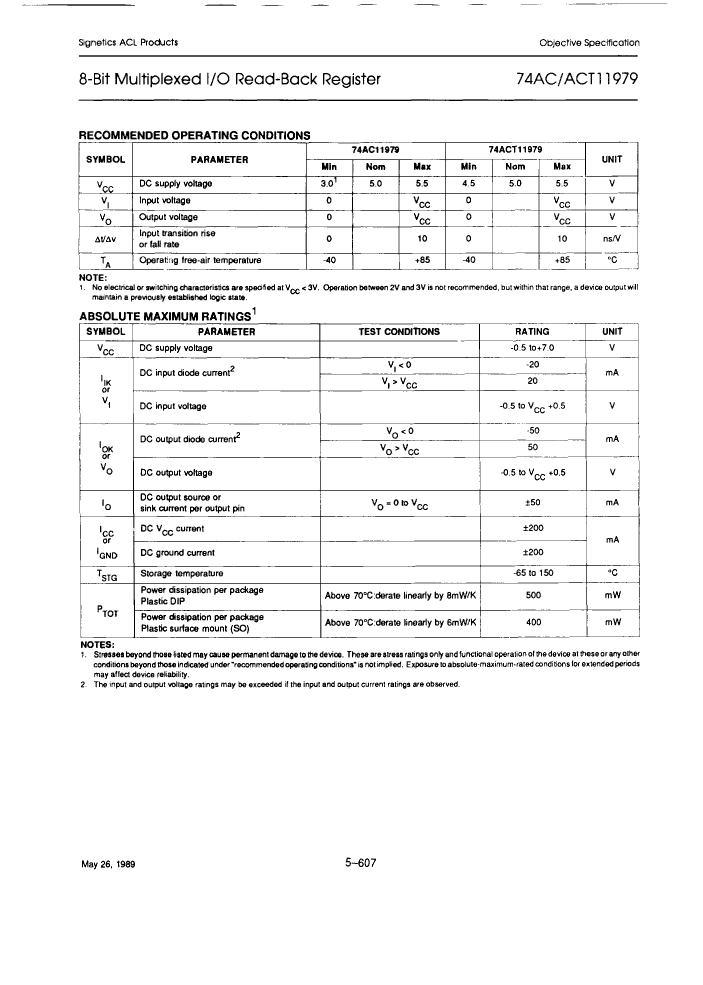

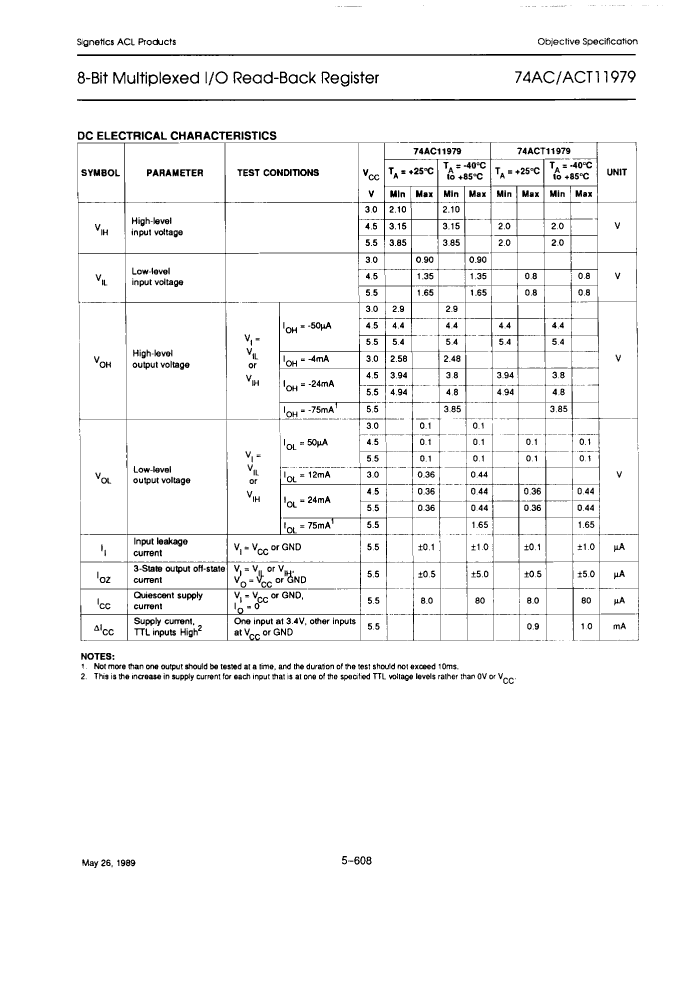

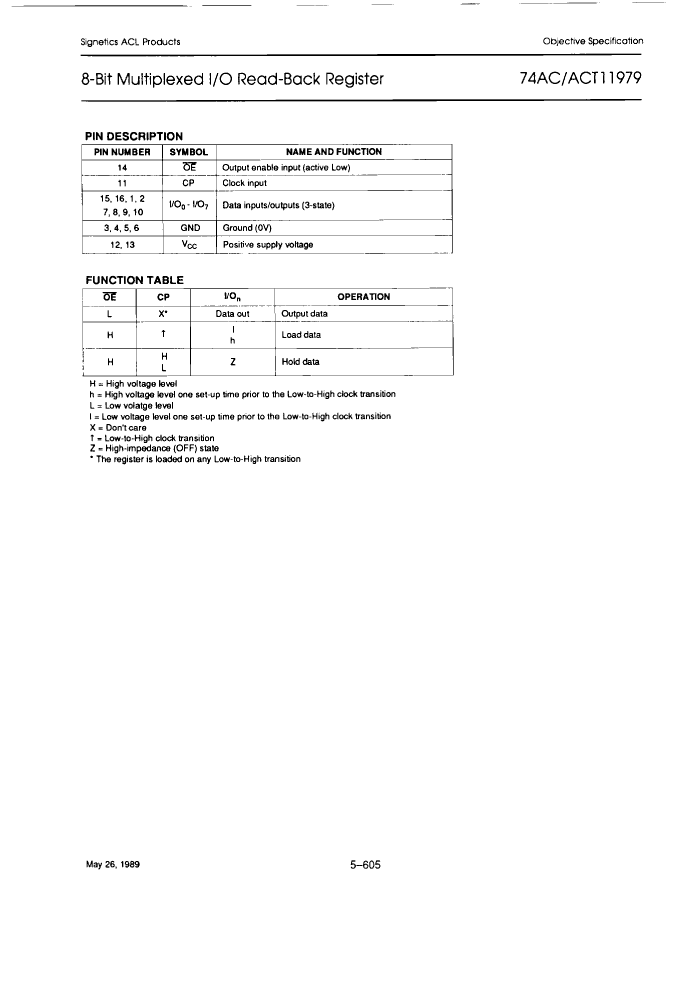

74ACT11979D: DescriptionLogic Circuit, CMOS, PDSO16; Categorylogic logic; File Size115KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74ACT11979D Overview

Logic Circuit, CMOS, PDSO16

74ACT11979D Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-PDSO-G16
Logic integrated circuit type	LOGIC CIRCUIT
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

74ACT11979D Related Products

	74ACT11979D	74AC11979D-T	74AC11979D	74AC11979N	74ACT11979N	74ACT11979D-T
Description	Logic Circuit, CMOS, PDSO16	Logic Circuit, CMOS, PDSO16	Logic Circuit, CMOS, PDSO16	Logic Circuit, CMOS, PDIP16	Logic Circuit, CMOS, PDIP16	Logic Circuit, CMOS, PDSO16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	ACT	AC	AC	AC	ACT	ACT
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16
Logic integrated circuit type	LOGIC CIRCUIT	LOGIC CIRCUIT	LOGIC CIRCUIT	LOGIC CIRCUIT	LOGIC CIRCUIT	LOGIC CIRCUIT
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	3 V	3 V	3 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	YAGEO	YAGEO	-	-	YAGEO	YAGEO
