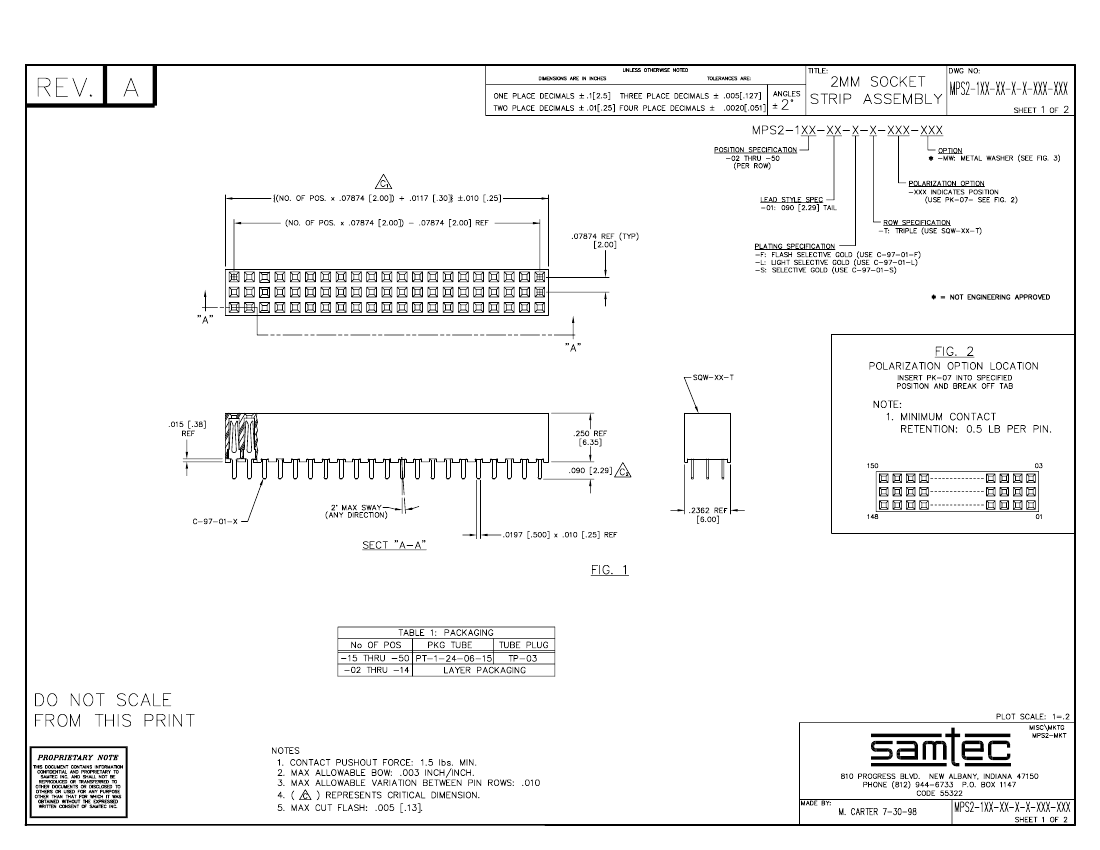

MPS2-145-01-F-T-MW

Description
Board Connector, 135 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking
CategoryThe connector    The connector
File Size74KB,1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

MPS2-145-01-F-T-MW Overview

Board Connector, 135 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking

MPS2-145-01-F-T-MW Parametric

Parameter NameAttribute value
MakerSAMTEC
Reach Compliance Codecompliant
body width0.236 inch
subject depth0.25 inch
body length3.567 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderFEMALE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Manufacturer's serial numberMPS2
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number3
Number of rows loaded3
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thicknessFLASH inch
polarization keyPOLARIZED HOUSING
reliabilityCOMMERCIAL
Terminal length0.09 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts135
