8609-396-81-14-745-485-E2 datasheet, PDF

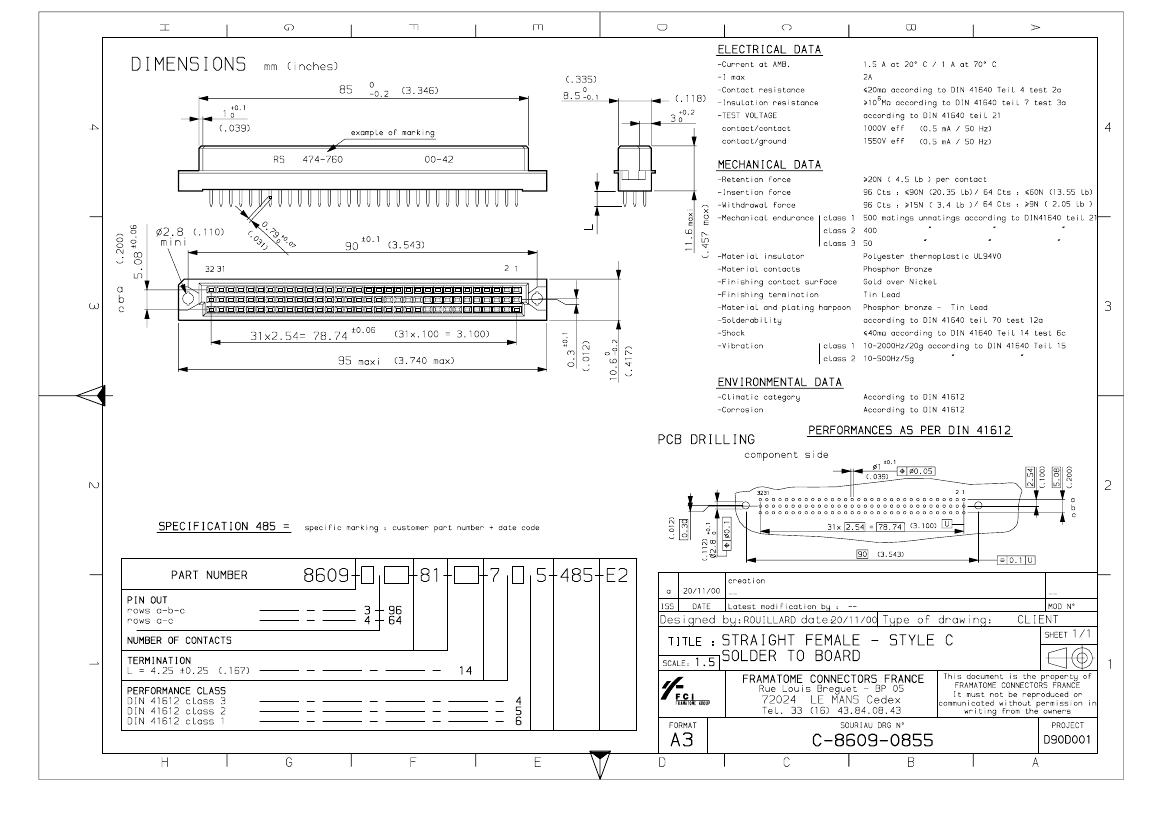

8609-396-81-14-745-485-E2: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609-396-81-14-745-485-E2 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0

PDM: Rev:A

STATUS:

Released

Printed: Sep 30, 2005

.

	8609-396-81-14-745-485-E2	8609-396-81-14-755-485-E2	8609-396-81-14-765-485-E2
Description	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e0	e0	e0
MIL compliance	NO	NO	NO
Manufacturer's serial number	8609	8609	8609
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	96	96	96
UL Flammability Code	94V-0	94V-0	94V-0
