SM802111UMGR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SM802111UMGR

SM802111UMGR: Description111 SERIES, PLL BASED CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), QCC24; Categorylogic logic; File Size351KB，7 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SM802111UMGR Overview

111 SERIES, PLL BASED CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), QCC24

SM802111UMGR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microchip
package instruction	4 X 4 MM, GREEN, QFN-24
Reach Compliance Code	compli
Other features	IT ALSO OPERATES AT 3.3V SUPPLY
series	111
Input adjustment	STANDARD
JESD-30 code	S-XQCC-N24
JESD-609 code	e4
length	4 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER
Humidity sensitivity level	2
Number of functions	1
Number of inverted outputs
Number of terminals	24
Actual output times	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.045 ns
Maximum seat height	0.9 mm
Maximum supply voltage (Vsup)	2.625 V
Minimum supply voltage (Vsup)	2.375 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	4 mm

Preview

Download Datasheet

View All

SM802111

ClockWorks™ GbE Dual 125MHz

Ultra-Low Jitter, LVPECL

Frequency Synthesizer

General Description

The SM802111 is a member of the ClockWorks™ family of

devices from Micrel and provides an extremely low-noise

timing solution for Gigabit Ethernet clock signals. It is

based upon a unique patented RotaryWave

architecture

that provides very-low phase noise.

The device operates from a 3.3V or 2.5V power supply

and synthesizes two LVPECL output clocks at 125MHz.

The SM802111 accepts a 15MHz LVCMOS reference

clock.

Data sheets and support documentation can be found on

Micrel’s web site at:

www.micrel.com.

Features

•

Generates two LVPECL clock outputs at 125MHz

•

2.5V or 3.3V operating range

•

Typical phase jitter @ 125MHz

(1.875MHz to 20MHz): 85fs (typical) at 3.3V

•

Industrial temperature range

•

Green, RoHS, and PFOS compliant

•

Available in 24-pin 4mm

4mm QFN

Applications

•

Gigabit Ethernet

___________________________________________________________________________________________________________

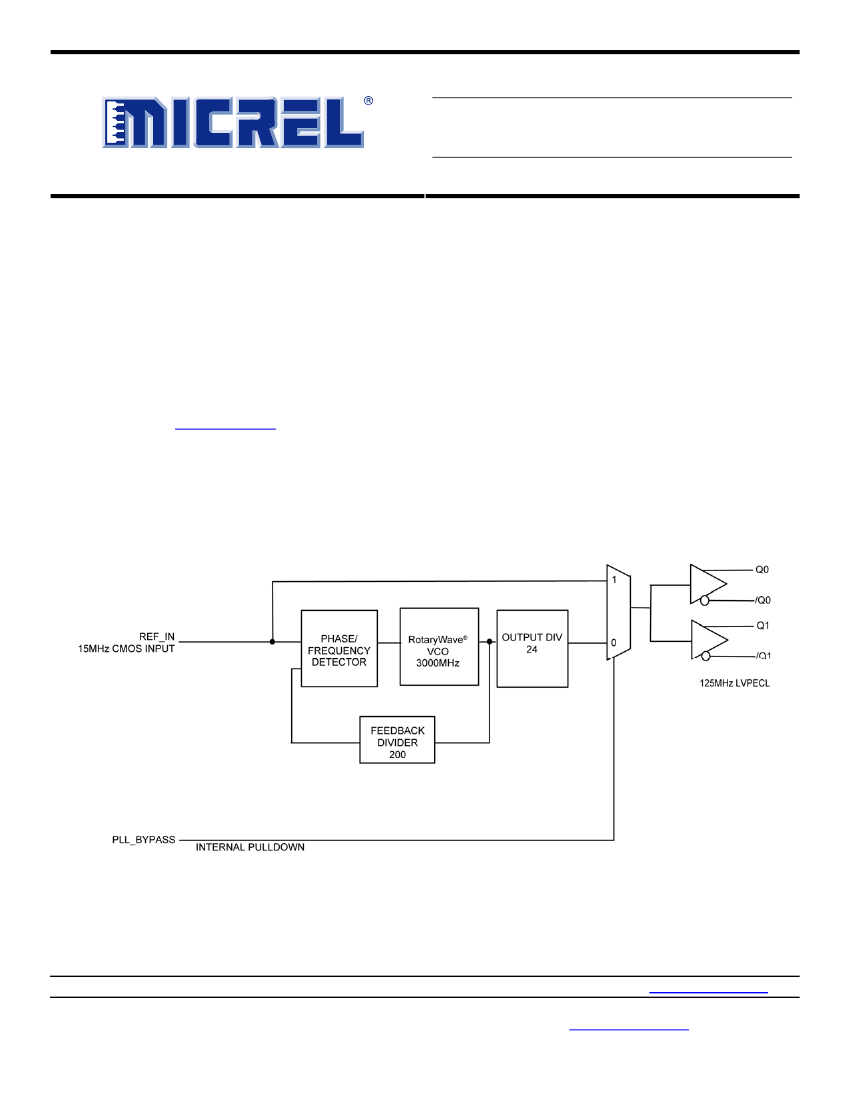

Block Diagram

ClockWorks is a trademark of Micrel, Inc.

RotaryWave is a registered trademark of Multigig, Inc.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (

408

) 944-0800 • fax + 1 (408) 474-1000 •

http://www.micrel.com

April 2011

M9999-041111-A

hbwhelp@micrel.com

or (408) 955-1690

SM802111UMGR Related Products

	SM802111UMGR	SM802111UMG	SM802111
Description	111 SERIES, PLL BASED CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), QCC24	111 SERIES, PLL BASED CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), QCC24	111 SERIES, PLL BASED CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), QCC24
series	111	111	111
length	4 mm	4 mm	4 mm
Number of functions	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	85 °C	85 °C	85 Cel
Minimum operating temperature	-40 °C	-40 °C	-40 Cel
surface mount	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal location	QUAD	QUAD	QUAD
width	4 mm	4 mm	4 mm
Is it Rohs certified?	conform to	conform to	-
Maker	Microchip	Microchip	-
package instruction	4 X 4 MM, GREEN, QFN-24	4 X 4 MM, GREEN, QFN-24	-
Reach Compliance Code	compli	compli	-
Other features	IT ALSO OPERATES AT 3.3V SUPPLY	IT ALSO OPERATES AT 3.3V SUPPLY	-
Input adjustment	STANDARD	STANDARD	-
JESD-30 code	S-XQCC-N24	S-XQCC-N24	-
JESD-609 code	e4	e4	-
Logic integrated circuit type	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER	-
Humidity sensitivity level	2	2	-
Actual output times	2	2	-
Package body material	UNSPECIFIED	UNSPECIFIED	-
encapsulated code	HVQCCN	HVQCCN	-
Package shape	SQUARE	SQUARE	-
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	-
Peak Reflow Temperature (Celsius)	260	260	-
Certification status	Not Qualified	Not Qualified	-
Same Edge Skew-Max（tskwd）	0.045 ns	0.045 ns	-
Maximum seat height	0.9 mm	0.9 mm	-
Maximum supply voltage (Vsup)	2.625 V	2.625 V	-
Minimum supply voltage (Vsup)	2.375 V	2.375 V	-
Nominal supply voltage (Vsup)	2.5 V	2.5 V	-
Terminal surface	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	-
Terminal pitch	0.5 mm	0.5 mm	-
Maximum time at peak reflow temperature	40	40	-
