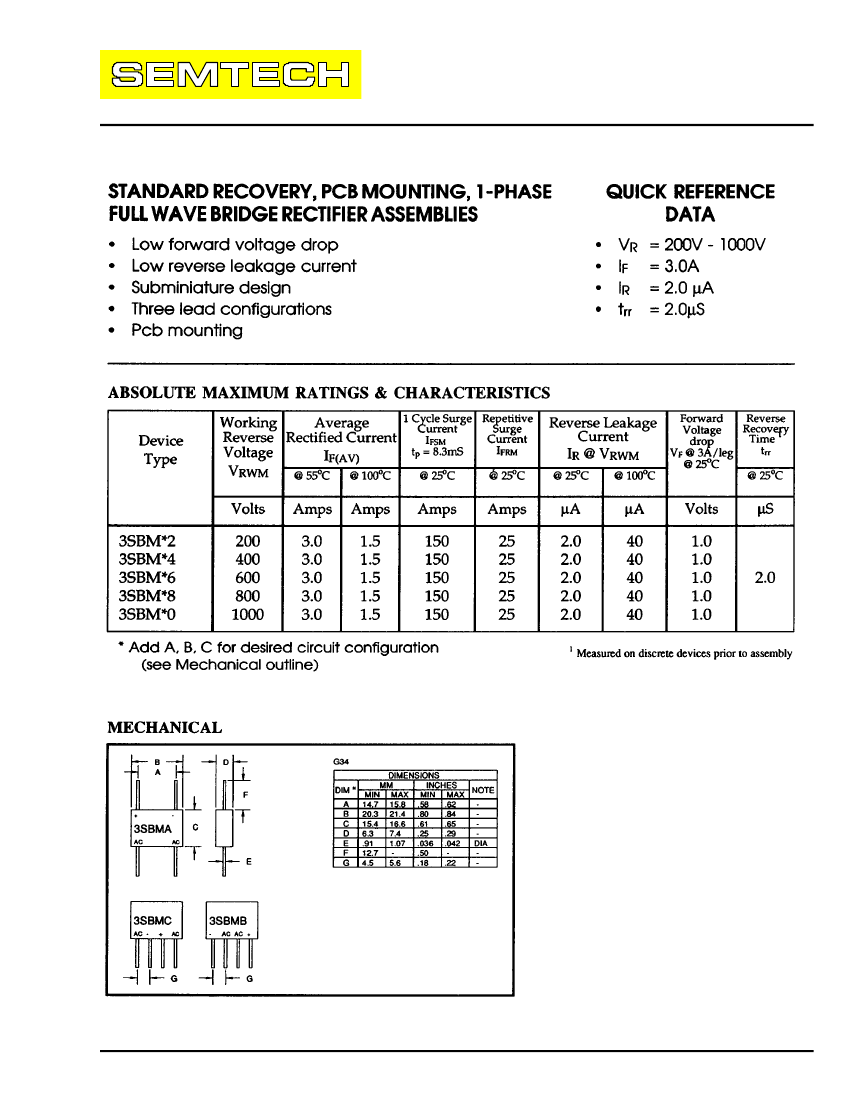

Bridge Rectifier Diode, 1 Phase, 3A, 400V V(RRM), Silicon,

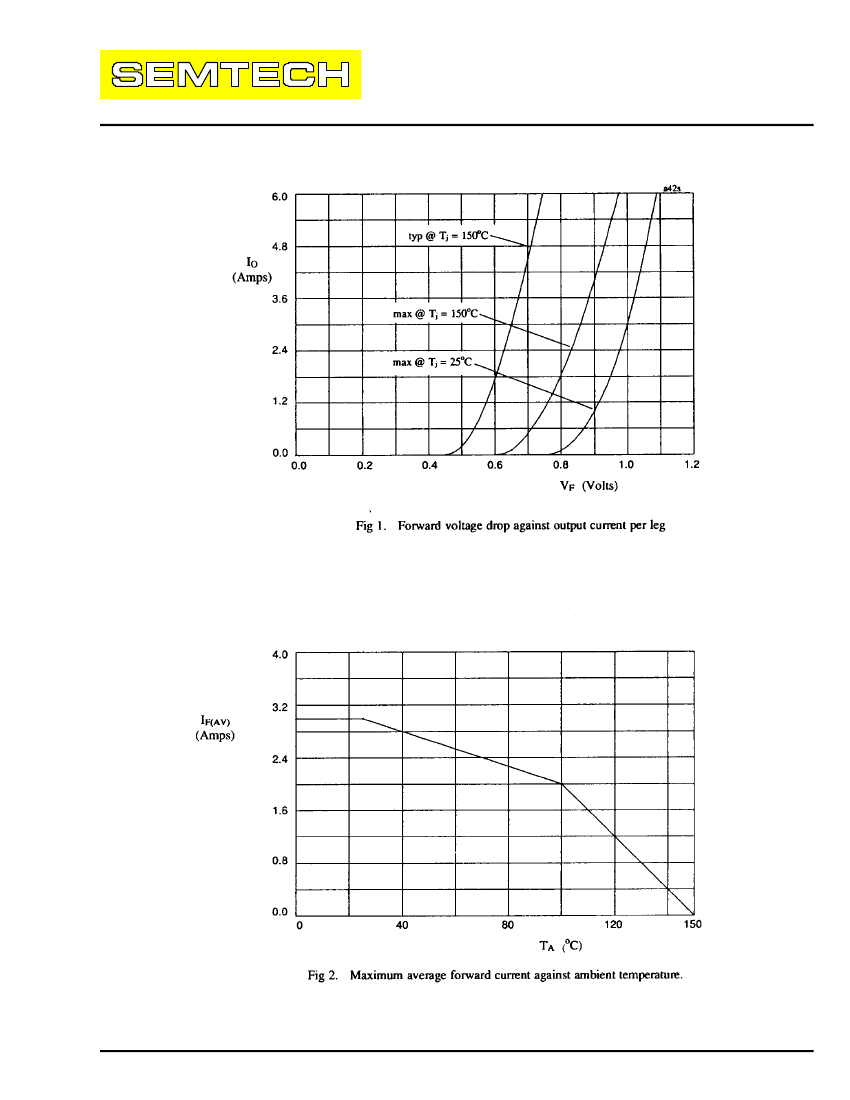

| Parameter Name | Attribute value |
| Maker | SEMTECH |
| Reach Compliance Code | unknown |
| Configuration | BRIDGE, 4 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1 V |
| JESD-30 code | R-PDIP-W4 |
| Maximum non-repetitive peak forward current | 150 A |
| Number of components | 4 |
| Phase | 1 |
| Number of terminals | 4 |
| Maximum operating temperature | 150 °C |
| Maximum output current | 3 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V |
| surface mount | NO |
| Terminal form | WIRE |
| Terminal location | DUAL |
| 3SBMA4 | 3SBMC0 | 3SBMA0 | 3SBMC2 | 3SBMA8 | 3SBMC8 | 3SBMB8 | 3SBMB0 | |
|---|---|---|---|---|---|---|---|---|
| Description | Bridge Rectifier Diode, 1 Phase, 3A, 400V V(RRM), Silicon, | Bridge Rectifier Diode, 1 Phase, 3A, 1000V V(RRM), Silicon, | Bridge Rectifier Diode, 1 Phase, 3A, 1000V V(RRM), Silicon, | Bridge Rectifier Diode, 1 Phase, 3A, 200V V(RRM), Silicon, | Bridge Rectifier Diode, 1 Phase, 3A, 800V V(RRM), Silicon, | Bridge Rectifier Diode, 1 Phase, 3A, 800V V(RRM), Silicon, | Bridge Rectifier Diode, 1 Phase, 3A, 800V V(RRM), Silicon, | Bridge Rectifier Diode, 1 Phase, 3A, 1000V V(RRM), Silicon, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Configuration | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1 V | 1 V | 1 V | 1 V | 1 V | 1 V | 1 V | 1 V |
| JESD-30 code | R-PDIP-W4 | R-PSIP-W4 | R-PDIP-W4 | R-PSIP-W4 | R-PDIP-W4 | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 |
| Maximum non-repetitive peak forward current | 150 A | 150 A | 150 A | 150 A | 150 A | 150 A | 150 A | 150 A |
| Number of components | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 100 °C | 150 °C | 150 °C | 100 °C |
| Maximum output current | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V | 1000 V | 1000 V | 200 V | 800 V | 800 V | 800 V | 1000 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | DUAL | SINGLE | DUAL | SINGLE | DUAL | SINGLE | SINGLE | SINGLE |
| Maker | SEMTECH | SEMTECH | SEMTECH | SEMTECH | - | - | SEMTECH | SEMTECH |
| package instruction | - | R-PSIP-W4 | R-PDIP-W4 | R-PSIP-W4 | - | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
