MSD634-FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> MSD634-FREQ

MSD634-FREQ: DescriptionHCMOS Output Clock Oscillator, 1.8MHz Min, 156.25MHz Max; CategoryPassive components oscillator; File Size153KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

MSD634-FREQ Overview

HCMOS Output Clock Oscillator, 1.8MHz Min, 156.25MHz Max

MSD634-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Connor-Winfield
Reach Compliance Code	unknown
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	MSD634
Installation features	SURFACE MOUNT
Maximum operating frequency	156.25 MHz
Minimum operating frequency	1.8 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	50 pF
physical size	13.97mm x 8.89mm x 4.06mm
longest rise time	3 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

THE CONNOR-WINFIELD CORP.

2111 COMPREHENSIVE DRIVE.

AURORA, IL 60505.

FAX (630) 851-5040.

PHONE (630) 851-4722.

WWW.CONWIN.COM

PRODUCT

D ATA

SHEET

CRYSTAL CONTROLLED OSCILLATORS

SURFACE MOUNT “J” LEADED HCMOS

CLOCK OSCILLATOR

ABSOLUTE MAXIMUM RATINGS

PARAMETER

Storage Temperature

Supply Voltage

UNITS

(Vcc)

MINIMUM

-55

-0.5

NOMINAL

MAXIMUM

125

UNITS

°C

Vdc

TABLE 2.0

NOTE

TABLE 1.0

NOTE

1227

MSD634

125.0 MHZ

MSD634

DESCRIPTION

OPERATING SPECIFICATIONS

PARAMETER

Frequency Range

Total Frequency Tolerance

Operating Temperature Range

Supply Voltage

Supply Current

Period Jitter

Integrated Phase Jitter (BW=12kHz to

20MHz)

SSB Phase Noise at 10Hz offset

SSB Phase Noise at 100Hz offset

SSB Phase Noise at 1KHz offset

SSB Phase Noise at 10KHz offset

SSB Phase Noise at 100KHz offset

(Vcc)

(Icc)

(Fo)

MINIMUM

1.5

-100

-40

4.50

NOMINAL

5.00

-60

-90

-125

-135

-140

MAXIMUM

156.25

100

5.50

UNITS

MHz

ppm

°C

Vdc

ps rms

dBc/Hz

The Connor-Winfield MSD634

is a hermetically sealed surface

mount 5.0V Crystal Controlled

Oscillator (XO) HCMOS/TTL

Compatible. The MSD634 is

designed for applications

requiring low jitter and tight

frequency stability.

INPUT CHARACTERISTICS

PARAMETER

Tri-state Enable Voltage

Tri-state Disable Voltage

(Vih)

(Vil)

MINIMUM

70%Vcc

NOMINAL

MAXIMUM

30%Vcc

UNITS

Vdc

TABLE 3.0

NOTE

FEATURES

5.0V OPERATION

LOW JITTER <1ps RMS

HCMOS OUTPUT

CHARACTERISTICS

PARAMETER

LOAD

Voltage

Current

(High)

(Low)

(High)

(Low)

Duty Cycle at 50% of Vcc

Rise / Fall Time 10% to 90%

(Voh)

(Vol)

(Ioh)

MINIMUM

90%(Vcc)

-16

NOMINAL

MAXIMUM

10%(Vcc)

UNITS

Vdc

FREQUENCY TOLERANCE: ±100ppm

TABLE 40

NOTE

TEMPERATURE RANGE: -40 to 85°C

TRI-STATE ENABLE/DISABLE

FUNCTION

TAPE AND REEL PACKAGING

RoHS 5/6 COMPLIANT

1.5

PACKAGE CHAR ACTERISTICS

Package

TABLE 50

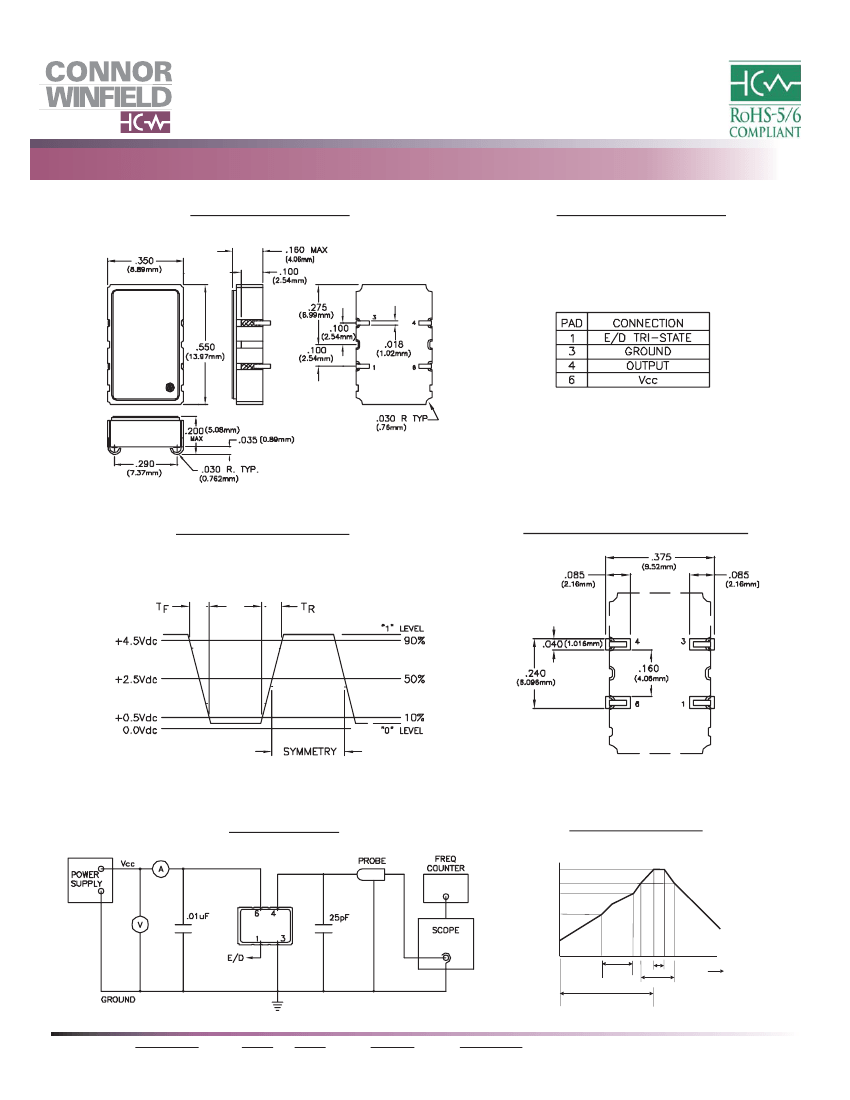

Hermetically sealed, ceramic package with gold plated J leads.

ORDERING INFORMATION

Note:

1) Inclusive of calibration, frequency vs. temperature stability, supply voltage change, load change,

shock and vibration, 20 years aging.

2) Oscillator output is enabled with no connection on pad 1

MSD634 - 125.0M

HCMOS

CLOCK

SERIES

CENTER

FREQUENCY

Specifications subject to change without notice.

DATA SHEET #:

Hc167

PAGE

REV:

DATE:

07/10/12

MSD634-FREQ Related Products

	MSD634-FREQ	MSD634-156.25M	MSD634-125.0M
Description	HCMOS Output Clock Oscillator, 1.8MHz Min, 156.25MHz Max	HCMOS Output Clock Oscillator, 156.25MHz Nom, J-LEADED, 6/4 PIN	HCMOS Output Clock Oscillator, 125MHz Nom, J-LEADED, 6/4 PIN
Maker	Connor-Winfield	Connor-Winfield	Connor-Winfield
Reach Compliance Code	unknown	unknown	unknown
maximum descent time	3 ns	3 ns	3 ns
Frequency Adjustment - Mechanical	NO	NO	NO
frequency stability	100%	100%	100%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Oscillator type	HCMOS	HCMOS	HCMOS
Output load	50 pF	50 pF	50 pF
physical size	13.97mm x 8.89mm x 4.06mm	13.97mm x 8.89mm x 5.08mm	13.97mm x 8.89mm x 5.08mm
longest rise time	3 ns	3 ns	3 ns
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %
package instruction	-	J-LEADED, 6/4 PIN	J-LEADED, 6/4 PIN
Other features	-	TRI-STATE; ENABLE/DISABLE FUNCTION; TR	TRI-STATE; ENABLE/DISABLE FUNCTION; TR
Nominal operating frequency	-	156.25 MHz	125 MHz
Maximum supply voltage	-	5.5 V	5.5 V
Minimum supply voltage	-	4.5 V	4.5 V
Base Number Matches	-	1	1
