AEV13012

Description
Power/Signal Relay, SPST, Momentary, 0.415A (Coil), 12VDC (Coil), 5000mW (Coil), 30A (Contact), 400VDC (Contact), DC Input, DC Output, Panel Mount
CategoryMechanical and electronic products    relay
File Size195KB，9 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric Compare View All

AEV13012 Overview

Power/Signal Relay, SPST, Momentary, 0.415A (Coil), 12VDC (Coil), 5000mW (Coil), 30A (Contact), 400VDC (Contact), DC Input, DC Output, Panel Mount

AEV13012 Parametric

Parameter NameAttribute value
MakerPanasonic
Reach Compliance Codeunknown
ECCN codeEAR99
body width38 mm
body height62.5 mm
Body length or diameter73 mm
Maximum coil current (DC)0.415 A
Coil operating voltage (DC)9 V
Coil power5000 mW
Coil release voltage (DC)1 V
Maximum coil voltage (DC)12 V
Coil/Input Power TypeDC
Maximum contact current (DC)30 A
Contact (DC) maximum rated R load30A@400VDC
Maximum contact voltage (DC)400 V
Contact/Output Power TypeDC
Electrical life30000 Cycle(s)
Manufacturer's serial numberAEV
Installation featuresPANEL MOUNT
operating hours50 ms
Maximum operating temperature80 °C
Minimum operating temperature-40 °C
method of packingBOX
physical size73mm X 38mm X 62.5mm
Relay actionMOMENTARY
Relay functionSPST
Relay typePOWER/SIGNAL RELAY
release time30 ms
sealHERMETICALLY SEALED
surface mountNO
Termination typeSCREW

AEV13012 Preview

EV (AEV)
Capsule contact
Mechanism and
High-capacity Cut-off
Compact Relay
EV RELAYS (AEV)
TYPICAL APPLICATIONS
High DC voltage applications such as
• Electric vehicle
• Hybrid vehicle
• Fuel-cell vehicle
• Battery charge and discharge
systems
• Construction equipment
FEATURES
• Compact and lightweight
Charged with hydrogen gas for high arc
cooling capacity, short gap cutoff has
been achieved at high DC voltages.
• Safety
High safety achieved with construction
that prevents explosions by keeping the
arc from leaking.
• High contact reliability
Since the contact portion is sealed in
hydrogen gas, there is no contact
oxidation. It is also dustproof and
waterproof.
10A
20A
80A
120A
New
200A
300A
RoHS compliant
ORDERING INFORMATION
AEV
Contact arrangement
1: 1 Form A (Screw terminal, 10A TM, with terminal protection cover)
5: 1 Form A (20A TM type)
Contact rating
1: 10 A
2: 20 A
8: 80 A
4: 120 A
7: 200 A
9: 300 A
Coil voltage
12: 12V DC
24: 24V DC
Coil terminal structure
Nil: Plug-in (Faston) (for 20 A type), Connector (for 80 A, 120 A and 300 A), Lead wire (for 200 A)
2: Plug-in (Faston) (for 10 A type with terminal protection cover)
0
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB233E 201209-T
EV (AEV)
TYPES
Type
10 A
20 A
80 A
120 A
New
200 A
300 A
10 A
80 A
120 A
ew
200 A
N
300 A
Nominal coil voltage
Contact arrangement
Part number
AEV110122
AEV52012
AEV18012
AEV14012
AEV17012
AEV19012
AEV110242
AEV18024
AEV14024
AEV17024
AEV19024
12 V DC
1 Form A
24 V DC
1 Form A
Standard packing; Carton: 25pcs. Case: 100pcs (for 10 A type)
Carton: 25pcs. Case: 50pcs (for 20 A type)
Carton: 1pc. Case: 20pcs (for 80 A type)
Carton: 1pc. Case: 20pcs (for 120 A type)
Carton: 1pc. Case: 10pcs (for 200 A type)
Carton: 1pc. Case: 5pcs (for 300 A type)
RATING
1. Coil data
Type
10 A
20 A
80 A
120 A
200 A
300 A
10 A
80 A
120 A
200 A
300 A
12 V DC
Nominal coil
voltage
Pick-up voltage
(at 20°C
68°F)
Max. 9 V DC
Max. 9 V DC
Max. 9 V DC
Max. 9 V DC
Max. 9 V DC
Max. 9 V DC
Max. 18 V DC
Max. 18 V DC
Max. 18 V DC
Max. 18 V DC
Max. 18 V DC
Drop-out voltage
(at 20°C
68°F)
Min. 1 V DC
Min. 0.5 V DC
Min. 1 V DC
Min. 1 V DC
Min. 1 V DC
Min. 2 V DC
Min. 2 V DC
Min. 2 V DC
Min. 2 V DC
Min. 2 V DC
Min. 4 V DC
Nominal operating current
[±10%] (at 20°C
68°F)
0.103 A
0.327 A
0.353 A
0.353 A
0.500 A
3.2 A (Inrush)
0.052 A
0.176 A
0.176 A
0.250 A
1.85 A (Inrush)
Nominal operating power
(at 20°C
68°F)
1.24 W
3.9 W
4.2 W
4.2 W
6.0 W
37.9 W (Inrush, approx. 0.1 sec.)
3.6 W (Stable)
1.24 W
4.2 W
4.2 W
6.0 W
44.4 W (Inrush, approx. 0.1 sec.)
3.8 W (Stable)
16 V DC
Max. applied
voltage
24 V DC
32 V DC
ASCTB233E 201209-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
EV (AEV)
2. Specifications
Characteristics
Item
Contact arrangement
Nominal switching capacity
(resistive load)
Short term current
Min. switching capacity
(resistive load)*
1
Max. cut-off current*
5
Contact rating
Overload opening/closing
rating*
5
30A 400V DC
(Min. 50
cycles)*
2, 5
60A 400V DC
(Min. 50
cycles)*
2, 5
120A 400V DC
(Min. 50
cycles)*
2, 5
–120A 200V DC
(Min. 50
cycles)*
2, 5
Max. 0.067V
(By voltage drop
6 V DC 20A)
Specifications
10A type
20A type
80A type
1 Form A
10A 400V DC
15A 2min,
30A 30sec
(2mm
2
)
1A 12V DC*
1
—
20A 400V DC
40A 10min,
60A 1min (3mm
2
)
1A 12V DC*
1
—
80A 400V DC
120A 15min,
180A 2min
(15mm
2
)
1A 12V DC*
1
800A 300V DC
(Min. 1 cycle)*
2, 5
120A 400V DC
(Carry current)
225A 3min,
400A 30sec.
(38mm
2
)
1A 12V DC*
1
1,200A 300V DC
(Min. 1 cycle)*
2, 5
800A 300V DC
(Min. 5 cycles)*
2, 5
120A 400V DC
(Min. 50
cycles)*
2, 5
–120A 200V DC
(Min. 50
cycles)*
2, 5
Max. 0.03V
(By voltage drop
6 V DC 20A)
200A 400V DC
300A 15min,
(60mm
2
)
1A 12V DC*
1
2,000A 350V DC
(Min. 1 cycle)*
2, 5
300A 400V DC
400A 10min,
600A 1min.
(100mm
2
)
1A 24V DC*
1
2,500A 300V DC
(Min. 3 cycles)*
3, 5
600A 400V DC
(Min. 300 cycles)
120 A type
200 A type
300 A type
—
Reverse direction cut-off*
5
—
Max. 0.5V
(By voltage drop
6 V DC 10A)
—
Max. 0.2V
(By voltage drop
6 V DC 20A)
–200A 200V DC
(Min. 1,000
cycles)*
2, 5
Max. 0.1V
(200 A Carry
current)
–300A 200V DC
(Min. 100 cycles)
Max. 0.06V
(300 A Carry
current)
Contact voltage drop (Initial)
Insulation resistance (Initial)
Breakdown
voltage
(Initial)
Between open
contacts
Between
contact and coil
Min. 100MΩ (at 500 V DC, Measurement at same location as “Initial breakdown voltage” section.)
2,500Vrms/min. (Detection current: 10mA)
2,500Vrms/min. (Detection current: 10mA)
Max. 30ms
(Nominal coil
voltage applied to
the coil, excluding
contact bounce
time.)
Max. 10ms
(Nominal coil
voltage applied to
the coil, without
diode.)
Electrical
characteristics
Operate time (at 20°C
68°F)
Max. 50ms
(Nominal coil voltage applied to the coil, excluding contact bounce time.)
Release time (at 20°C
68°F)
Max. 30ms
(Nominal coil voltage applied to the coil, without diode.)
Min. 196m/s
2
{20
G} (Half-wave
pulse of sine
wave: 11ms;
detection time:
10µs)
Shock
resistance
Functional
For ON: Min. 196m/s
2
{20 G} (Half-wave pulse of sine wave: 11ms; detection time: 10µs)
For OFF: Min. 98m/s
2
{10 G} (Half-wave pulse of sine wave: 11ms; detection time: 10µs)
Destructive
Mechanical
characteristics
Vibration
resistance
Destructive
Functional
Min. 490 m/s
2
{50 G} (Half-wave pulse of sine wave: 6ms)
10 to 200 Hz, Min.43 m/s {4.4 G} (Detection time: 10µs)
2
10 to 200 Hz, Min.43 m/s
2
{4.4 G}
(Time of vibration for each direction; X, Y, Z direction: 4 hours)
10 to 200 Hz,
Min. 44 m/s
2
{4.5 G} (Detection
time: 10µs)
10 to 200 Hz,
Min. 44 m/s
2
{4.5 G} (Time of
vibration for each
direction; X, Y, Z
direction: 4 hours)
200A 400V DC
300A 400V DC
Min. 3,000*
2
Min. 1,000
Ambient temperature:
–40 to +85°C
–40 to +185°F
(Storage: Max.85°C
185°F),
Humidity: 5 to 85% R.H. (Not freezing
and condensing at low temperature)
600 g
21.16 oz
750 g
26.46 oz
Mechanical
Expected life
Electrical (resistive load)
Min. 10
5
10A 400V DC
Min. 75,000*
2
20A 400V DC
Min. 3,000*
2
80A 400V DC
Min. 1,000*
2
Min. 2×10
5
30A 400V DC
Min. 3,000*
2
Conditions
Conditions for operation,
transport and storage
Ambient temperature:
–40 to +80°C
–40 to +176°F
(Storage: Max. 85°C
185°F),
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
90 g
3.17 oz
180 g
6.35 oz
400 g
14.11 oz
400 g
14.11 oz
Mass (Approx.)
Notes: *1. This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. The electrical load performance value for the 10A, 20A, 80A, 120A and 200A types applies when a varistor is connected in parallel to the coil. Please be warned
that working life will be reduced when a diode is used.
*3. Condition: Nominal switching 10 cycles, each cut-off 2,500 A
*4. The coil voltage 12 V DC type and 24 V DC type have the same specifications.
*5. at L/R 1ms
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB233E 201209-T
EV (AEV)

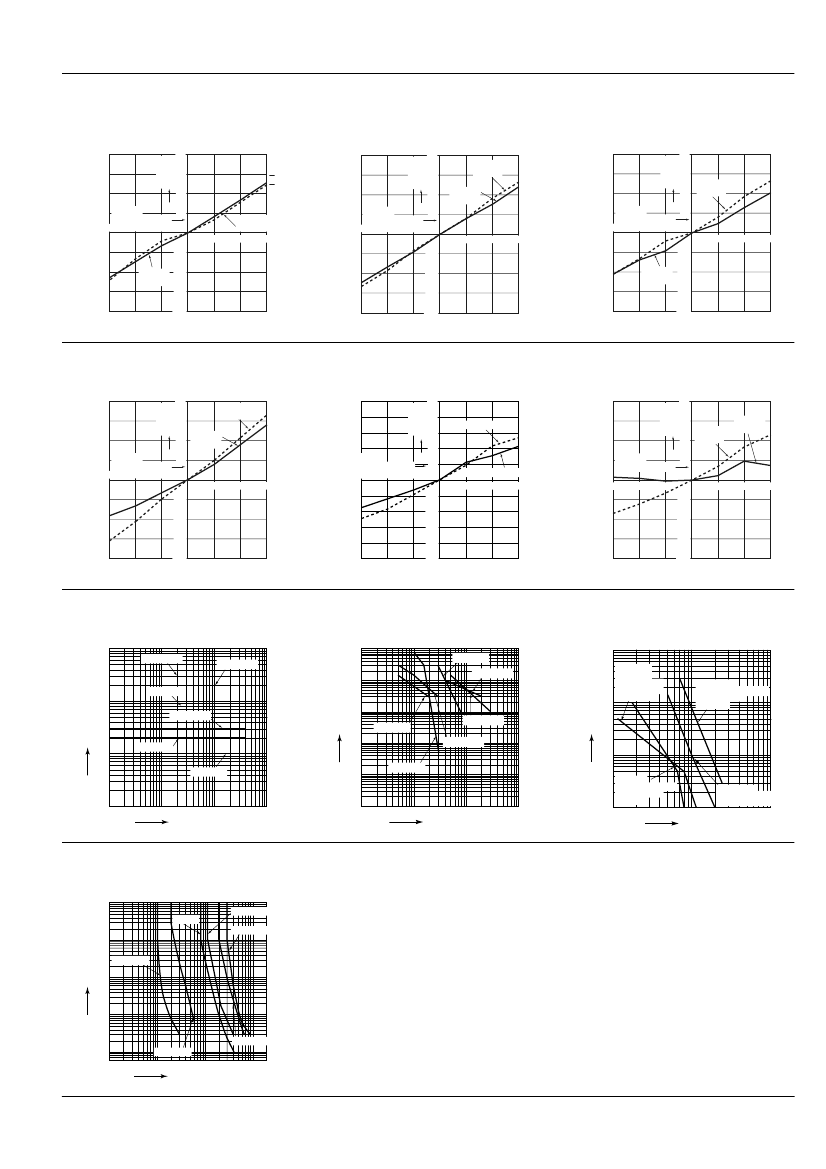

REFERENCE DATA
1.-(1) Ambient temperature characteristics
(10 A type)
Sample: EV relay 10 A, 3 pcs.
Variation
ratio, %
40
30
20
Ambient
10
temperature,
°C
-20
0
-40
20
-10
Pick-Up -20
voltage
-30
-40
40
X
X
1.-(2) Ambient temperature characteristics
(20 A type)
Sample: EV relay 20 A, 3 pcs.
Variation
ratio, %
40
30
20
Ambient
10
temperature,
°C
-20
0
-40
20
-10
-20
-30
-40
40
60
80
Drop-out
voltage
Pick-Up
voltage
1.-(3) Ambient temperature characteristics
(80 A type)
Sample: EV relay 80 A, 3 pcs.
Variation
ratio, %
40
30
20
Ambient
10
temperature,
°C
-20
0
-40
20
-10
Pick-Up -20
voltage
-30
-40
40
60
80
Drop-out
voltage
Drop-out
voltage
60
80
1.-(4) Ambient temperature characteristics
(120 A type)
Sample: EV relay 120 A, 3 pcs.
Variation
ratio, %
40
30
Pick-Up
20 voltage
Drop-out
voltage
1.-(5) Ambient temperature characteristics
(200 A type)
Sample: EV relay 200 A, 3 pcs.
Variation
ratio, %
50
40
Drop-out voltage
30
20
Ambient
temperature,
°C
-20
0
-40
10
Pick-Up voltage
20
-10
-20
-30
40
60
80
1.-(6) Ambient temperature characteristics
(300 A type)
Sample: EV relay 300 A, 3 pcs.
Variation
ratio, %
-20
0
-10
-20
-30
-40
40
Pick-Up
Drop-out voltage
20 voltage
30
Ambient
10
temperature,
°C
-20
0
-40
20
-10
-20
-30
-40
40
60
80
Ambient
10
temperature,
°C
-40
20
40
60
80
-40
-50
2. Max. value for switching capacity
When 400 V DC resistive load
1000
300 A type
Contact current, A
200 A type
3. Switching life curve (Forward direction)
When 400 V DC resistive load
100000
80 A type
10000
200 A type
4. Cut-off life curve (Forward direction)
1000
120 A type,
400 V DC
resistive load
(for Min. 600 A,
300 V DC)
80 A type
Life, cycle
100
120 A type
Life, cycle
100
1000
20 A type
100
10 A type
10 A type
10
300 A type
120 A type
10
300 A type,
400 V DC resistive load
(for Min. 900 A,
300 V DC)
10
20 A type
1
1
10
100
Contact voltage, V
1000
1
1
10
100
Contact current, A
1000
1
100
80 A type,
400 V DC resistive load
(for Min. 600 A,
300 V DC)
200 A type,
400 V DC resistive load
(for Min. 900 A, 350 V DC)
1000
Cut-off current, A
10000
5. Carrying performance curve (80°C
176°F)
*For 200 A and 300 A, at 85°C
185°F
10
5
80 A type
10
4
Time, sec
10 A type
120 A type
300 A type
1000
100
200 A type
10
1
20 A type
10
100
1000
Carrying current, A
ASCTB233E 201209-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
EV (AEV)

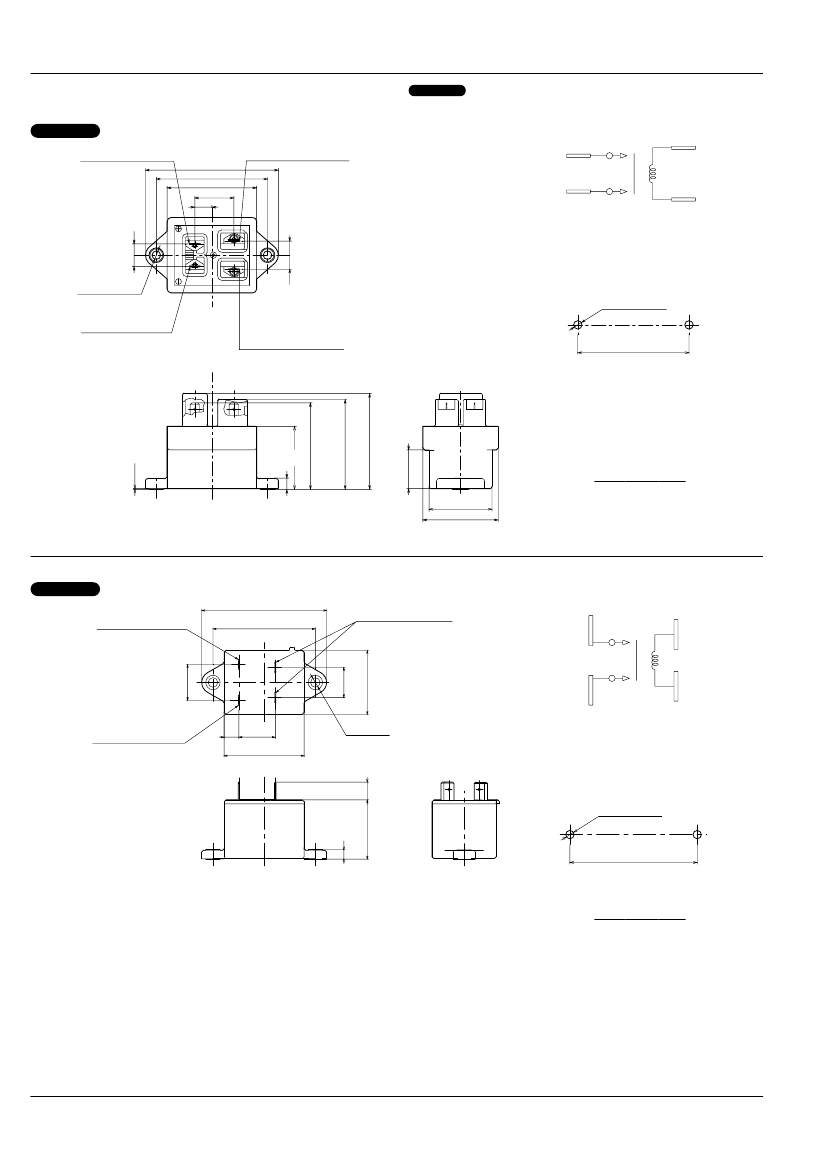

DIMENSIONS
(mm
inch)
1. 10 A type
CAD Data
1-Load input terminal (+)
#187 tab, 0.5t
66.8
2.630
55.9±0.3
2.201±.012
45.0
1.772
19.6
.772
8.6
.339
1
5
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
External dimensions
5-Coil terminal (No polarity)
#187 tab, 0.5t
1 (+)
Schematic (TOP VIEW)
5:Coil
2 (−)
6:Coil
Load side has polarities (+) and (−)
11.3±0.3
.445±.012
Mounting dimensions
2×4.5±0.2 dia.
2×.177±.008 dia.
2
6
14.1±0.3
.555±.012
Mounting hole:
2×4.2±0.1 dia.
2×.165±.004 dia.
2-Load input terminal (–)
#187 tab, 0.5t
6-Coil terminal (No polarity)
#187 tab, 0.5t
55.9±0.1
2.201±.004
0.4
.016
31.7
1.248
49.7
Max. 45 45.5
1.957
1.772 1.791
19.5
.768
31.6
1.244
37.9
1.492
5.7
.224
General tolerance;
less than 10
.394:
±0.3
±.012
10 to 50
.394 to 1.969:
±0.6
±.024
more than 50
1.969:
±1.0
±.039
2. 20 A type
CAD Data
1-Load input terminal (+)
#250 tab, 0.8t
External dimensions
78.0
3.071
64.0
2.520
Coil terminal (No polarity)
#250 tab, 0.8t
Schematic (TOP VIEW)
1 (+)
Coil
22.5
.886
19.0 40.0
.748 1.575
2 (−)
Coil
2-Load input terminal (–)
#250 tab, 0.8t
9.2
.362
22.8
.898
50.0
1.969
2-6 dia.
2-.236 dia.
Load side has polarities (+) and (−)
Mounting dimensions
11.1
.437
Mounting hole:
2×6.0±0.2 dia.
2×.236±.008 dia.
5.8
.228
37.0±1.0
1.457±.039
64.0±0.1
2.520±.004
General tolerance;
less than 10
.394:
±0.3
±.012
10 to 50
.394 to 1.969:
±0.6
±.024
more than 50
1.969:
±1.0
±.039
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB233E 201209-T
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AEV13012 Related Products

AEV13012 AEV16012 AEV16024
Description Power/Signal Relay, SPST, Momentary, 0.415A (Coil), 12VDC (Coil), 5000mW (Coil), 30A (Contact), 400VDC (Contact), DC Input, DC Output, Panel Mount Power/Signal Relay, SPST, Momentary, 0.415A (Coil), 12VDC (Coil), 5000mW (Coil), 60A (Contact), 400VDC (Contact), DC Input, DC Output, Panel Mount Power/Signal Relay, SPST, Momentary, 0.208A (Coil), 24VDC (Coil), 5000mW (Coil), 60A (Contact), 400VDC (Contact), DC Input, DC Output, Panel Mount
Maker Panasonic Panasonic Panasonic
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
body width 38 mm 38 mm 38 mm
body height 62.5 mm 62 mm 62 mm
Body length or diameter 73 mm 80 mm 80 mm
Maximum coil current (DC) 0.415 A 0.415 A 0.208 A
Coil operating voltage (DC) 9 V 9 V 18 V
Coil power 5000 mW 5000 mW 5000 mW
Coil release voltage (DC) 1 V 1 V 2 V
Maximum coil voltage (DC) 12 V 12 V 24 V
Coil/Input Power Type DC DC DC
Maximum contact current (DC) 30 A 60 A 60 A
Contact (DC) maximum rated R load 30A@400VDC 60A@400VDC 60A@400VDC
Maximum contact voltage (DC) 400 V 400 V 400 V
Contact/Output Power Type DC DC DC
Electrical life 30000 Cycle(s) 1000 Cycle(s) 1000 Cycle(s)
Manufacturer's serial number AEV AEV AEV
Installation features PANEL MOUNT PANEL MOUNT PANEL MOUNT
operating hours 50 ms 50 ms 50 ms
Maximum operating temperature 80 °C 80 °C 80 °C
Minimum operating temperature -40 °C -40 °C -40 °C
method of packing BOX BOX BOX
physical size 73mm X 38mm X 62.5mm 80mm X 38mm X 62mm 80mm X 38mm X 62mm
Relay action MOMENTARY MOMENTARY MOMENTARY
Relay function SPST SPST SPST
Relay type POWER/SIGNAL RELAY POWER/SIGNAL RELAY POWER/SIGNAL RELAY
release time 30 ms 30 ms 30 ms
seal HERMETICALLY SEALED HERMETICALLY SEALED HERMETICALLY SEALED
surface mount NO NO NO
Termination type SCREW SCREW SCREW

Recommended Resources

Touch digital code lock circuit

Wireless mouse circuit diagram design

Touch type timer energy saving lamp circuit

LA4185 power amplifier circuit

555 pulse electrotherapy instrument circuit

820e computer motherboard circuit diagram_33

Qt Learning Path Chapter 18 Standard Dialog Box Events
[p=22, null, left][color=#555555][font=Tahoma, Helvetica, SimSun, sans-serif][size=14px][color=#333333][backcolor=rgb(247, 247, 247)][font=Tahoma, Arial, Helvetica, sans-serif]Events are sent by the s...
兰博 Embedded System
EEWORLD University ---- Detailed explanation of FreeRTOS source code
FreeRTOS source code detailed explanation : https://training.eeworld.com.cn/course/4312"FreeRTOS Source Code Detailed Explanation and Application Development: Based on STM32" is supplemented by a larg...
老白菜 MCU
CS viewer
Does anyone know how to use CS viewer?...
xiejian24919 Embedded System
Could someone please upload the StellarisWare Software from TI's official website?
As the title says! I spent a long time on the official website! But they still asked me to wait for the email! Oh! It's urgent. If anyone has this code, please upload it! My email address is [email]gu...
历史的天空 Microcontroller MCU
This is my first time using a PCI card. I would like to ask about testing issues.
I now have a newly made PCI card. The hardware function program has been completed and the hardware function test needs to be performed. I would like to ask how to perform the hardware function test o...
blc9 Embedded System
Request information on SCA60C angle sensor
[i=s] This post was last edited by paulhyde on 2014-9-15 03:52 [/i] Please give me some information about SCA60C...
斩丶魂 Electronics Design Contest
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. 3FIS088-354GG
  2. 5KP300CA
  3. SZ016M1800B7S11022
  4. 294-75.0M-16-S-TR
  5. SON-UN989-11-6981-F-T-1
  6. DBP-M989LF-03-2840-D
  7. FMXMC7S308JHE-125.000000M-TG
  8. GUS-QS0BLF-001001-DA
  9. KPLT5000M3X
  10. 2CW032150YQ
  11. A2001H-10P-LE
  12. MPP824K4240916LC

Popular Articles

  1. Analysis of Freescale MCU PWM module (3)
  2. Importance of regular maintenance of explosion-proof motors_Contents of daily maintenance of explosion-proof motors
  3. Let's learn mini2440 bare metal development (Part 2) -- Analysis of S3C2440.s that comes with MDK
  4. Flower watering control system based on 51 single chip microcomputer wifi internet of things
  5. OPPO Find X4 Pro design patent: front camera under the screen, rear square sub-screen
  6. PIC12F629 decoding PT2262IR (asm program)
  7. In-depth analysis of the composition structure of electric vehicles
  8. 02-JZ2440 Bare Metal Learning Storage Manager
  9. After mobile phone manufacturers abandoned TOF, Sony sought its own way out
  10. Design and production of clock circuit based on 89C51

Technical ResourceMore

  1. Xilinx Floating Point IP
  2. HPM6300 product information
  3. Discrete Mathematics ROSEN 8TH Extracurricular Supplementary Guide
  4. Develop a master/slave communication protocol
  5. EVE Simulator User Guide
  6. MATLAB Case 28 Grey Neural Network Prediction Algorithm—Order Demand Prediction.rar
  7. Courseware download: Universal Serial Bus USB technology evolution and test solutions
  8. Develop AliOS Things based on STM32L4 IoT Discovery Kit
  9. MATLAB Case 30 Implementation of Neural Network GUI--Neural Network Fitting Based on GUI.rar
  10. MATLAB Case 26 Particle Swarm Optimization Algorithm-Optimization of Nonlinear Function Extreme Value.rar

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2101  210  1353  2692  2148  43  5  28  55  44
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
