UNISONIC TECHNOLOGIES CO., LTD
81CXXX/81NXXX
VOLTAGE DETECTORS WITH
BUILT-IN DELAY TIME
DESCRIPTION
The UTC
81CXXX
and
81NXXX
series are good performance
voltage detector and manufactured by CMOS technologies with
highly accurate, low power consumption. A delay circuit is built-in
to each detector, therefore, peripherals are unnecessary and high
density mounting is possible. Detect voltage is extremely accurate
with minimal temperature drift. Both CMOS and N-channel open
drain output configurations are available.
3
1
CMOS IC
3
1
2
2
SOT-23-3
(JEDEC TO-236)
SOT-23
1
1
SOT-223
SOT-89
FEATURES
* Highly Accurate:
* Built-In Delay time :
Detect voltage ± 2%
1ms ~ 50ms
50ms ~ 200ms
200ms ~ 400ms
1
* Detect Voltage Temperature
Characteristics:
TYP± 100ppm/°C
* Wide Operating Voltage Range : 0.7V ~ 10.0V
* Low Current Consumption :
TYP 1.0μA (V
IN
=2.0V)
TO-92

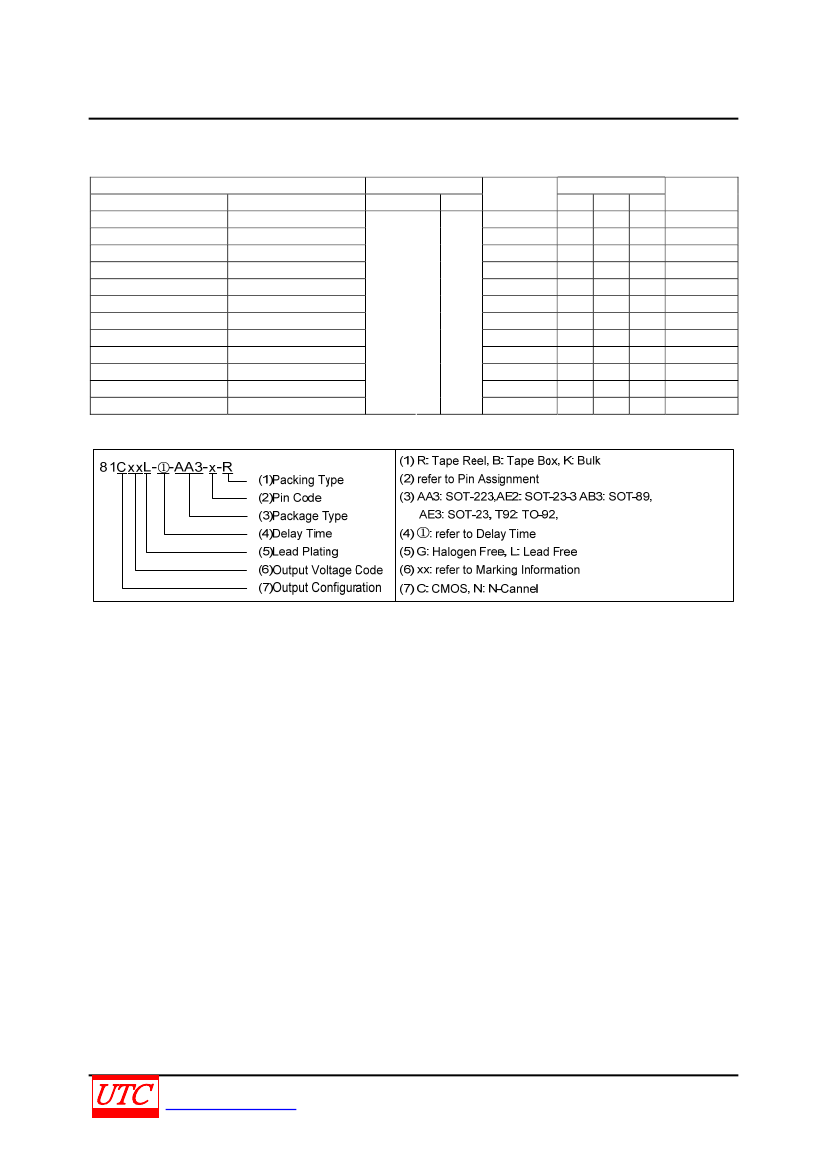

ORDERING INFORMATION
CMOS:
Ordering Number
①:Delay
Time
Lead Free
Halogen Free
Duration
Code
81CxxL-①-AA3-B-R
81CxxG-①-AA3-B-R
81CxxL-①-AB3-E-R
81CxxG-①-AB3-E-R
81CxxL-①-AE3-3-R
81CxxG-①-AE3-3-R
81CxxL-①-AE3-5-R
81CxxG-①-AE3-5-R
81CxxL-①-AE3-2-R
81CxxG-①-AE3-2-R
1~50 ms
P
81CxxL-①-AE2-3-R
81CxxG-①-AE2-3-R
50~200 ms
Q
81CxxL-①-AE2-5-R
81CxxG-①-AE2-5-R
200~400 ms
R
81CxxL-①-AE2-2-R
81CxxG-①-AE2-2-R
81CxxL-①-T92-D-B
81CxxG-①-T92-D-B
81CxxL-①-T92-E-B
81CxxG-①-T92-E-B
81CxxL-①-T92-D-K
81CxxG-①-T92-D-K
81CxxL-①-T92-E-K
81CxxG-①-T92-E-K
Package
SOT-223
SOT-89
SOT-23
SOT-23
SOT-23
SOT-23-3
SOT-23-3
SOT-23-3
TO-92
TO-92
TO-92
TO-92
Pin Assignment
1
2
3
O
G
I
O
I
G
O
G
I
G
O
I
I
O
G
O
G
I
G
O
I
I
O
G
I
G
O
O
I
G
I
G
O
O
I
G
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Box
Tape Box
Bulk
Bulk
www.unisonic.com.tw
Copyright © 2011 Unisonic Technologies Co., Ltd
1 of 16
QW-R502-039,N
81CXXX/81NXXX
ORDERING INFORMATION(Cont.)
N-Channel:
Ordering Number
①:Delay
Time
Lead Free
Halogen Free
Duration
Code
81NxxL-①-AA3-B-R
81NxxG-①-AA3-B-R
81NxxL-①-AB3-E-R
81NxxG-①-AB3-E-R
81NxxL-①-AE3-3-R
81NxxG-①-AE3-3-R
81NxxL-①-AE3-5-R
81NxxG-①-AE3-5-R
81NxxL-①-AE3-2-R
81NxxG-①-AE3-2-R
1~50 ms
H
81NxxL-①-AE2-3-R
81NxxG-①-AE2-3-R
50~200 ms
J
81NxxL-①-AE2-5-R
81NxxG-①-AE2-5-R
200~400 ms
K
81NxxL-①-AE2-2-R
81NxxG-①-AE2-2-R
81NxxL-①-T92-D-B
81NxxG-①-T92-D-B
81NxxL-①-T92-E-B
81NxxG-①-T92-E-B
81NxxL-①-T92-D-K
81NxxG-①-T92-D-K
81NxxL-①-T92-E-K
81NxxG-①-T92-E-K
Note: 1. Pin assignment: I:V
IN
O:V
OUT
G:V
SS
2. xx: Output Voltage, refer to Marking Information.
Package
SOT-223
SOT-89
SOT-23
SOT-23
SOT-23
SOT-23-3
SOT-23-3
SOT-23-3
TO-92
TO-92
TO-92
TO-92
Pin Assignment
1
2
3
O
G
I
O
I
G
O
G
I
G
O
I
I
O
G
O
G
I
G
O
I
I
O
G
I
G
O
O
I
G
I
G
O
O
I
G
CMOS IC
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Box
Tape Box
Bulk
Bulk
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 16
QW-R502-039,N
81CXXX/81NXXX

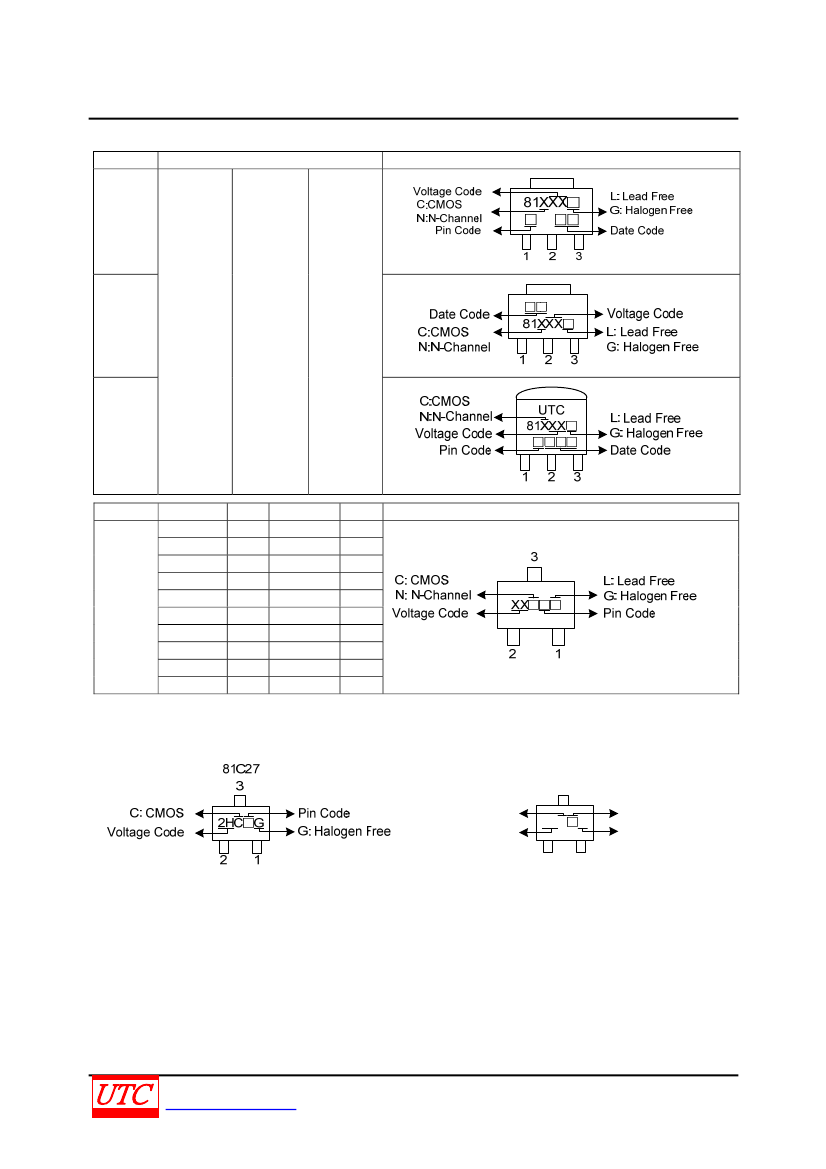

MARKING INFORMATION
PACKAGE
VOLTAGE CODE
MARKING
CMOS IC
SOT-223
SOT-89
TO-92
10:1.0V
11:1.1V
12:1.2V
13:1.3V
14:1.4V
15:1.5V
16:1.6V
17:1.7V
18:1.8V
19:1.9V
20:2.0V
21:2.1V
22:2.2V
23:2.3V
24:2.4V
25:2.5V
26:2.6V
27:2.7V
28:2.8V
29:2.9V
30:3.0V
31:3.1V
32:3.2V
33:3.3V
34:3.4V
35:3.5V
36:3.6V
37:3.7V
38:3.8V
39:3.9V
40:4.0V
41:4.1V
42:4.2V
43:4.3V
44:4.4V
45:4.5V
46:4.6V
47:4.7V
48:4.8V
49:4.9V
50:5.0V
PACKAGE INTEGER* CODE DECIMAL** CODE
1.
1
.0
A
2.
2
.1
B
3.
3
.2
C
4.
4
.3
D
SOT-23
5.
5
.4
E
SOT-23-3
6.
6
.5
F
.6
G
.7
H
.8
J
.9
K
* Represents the integer of the Detect Voltage
** Represents the decimal number of the Detect Voltage
MARKING
EXAMPLE:
81N27
3
N: N-Channel
Voltage Code
2HN G
2
1
Pin Code
G: Halogen Free
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 16
QW-R502-039,N
81CXXX/81NXXX
BLOCK DIAGRAM
CMOS IC
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 16
QW-R502-039,N
81CXXX/81NXXX
ABSOLUTE MAXIMUM RATINGS
(Ta=25°C)
PARAMETER
SYMBOL
V
IN
I
OUT
CMOS IC
RATINGS
UNIT
Input Voltage
12
V
Output Current
50
mA
CMOS
V
SS
-0.3 ~ V
IN
+0.3
V
Output Voltage
V
OUT
N-Ch open drain
V
SS
-0.3 ~ 9
V
SOT-223
800
mW
SOT-23/ SOT-23-3
150
mW
Power Dissipation
P
D
SOT-89
500
mW
TO-92
300
mW
Operating Temperature
T
OPR
-30 ~ +80
°C
Storage Temperature
T
STG
-40 ~ +125
°C
Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL DATA
PARAMETER
SOT-223
Junction to Case
SOT-23/ SOT-23-3
SOT-89
TO-92
θ
JC
SYMBOL
RATINGS
20
200
45
100
UNIT
°C/W
°C/W
°C/W
°C/W
ELECTRICAL CHARACTERISTICS
(Ta=25℃)
Detection voltage (1.0V ~ 1.9V)
PARAMETER
SYMBOL
Detect Voltage
Hysteresis Range
Operating Voltage
Supply Current
V
DF
V
HYS
V
IN
I
SS
CIRCUIT
1
1
1
2
3
Output Current
I
OUT
4
V
DF
Temperature Characteristics
Transient Delay Time
(V
DR
V
OUT
inversion)
ΔV
DF
ΔT
OPR ×
V
DF
TEST CONDITIONS
V
DF
=1.6V ~ 6.0V
V
IN
=1.5V
V
IN
=5.0
N-ch
V
DS
=0.5V, V
IN
=1.0V
P-ch
V
DS
=2.1V, V
IN
=8.0V
(CMOS output)
MIN
TYP
MAX UNIT
V
DF
(T)
V
DF
(T)
V
DF
(T)
V
×0.98
×1.02
V
DF
V
DF
V
DF
V
×0.02 ×0.05 ×0.08
0.7
10.0
V
0.9
2.6
μA
2.0
4.2
μA
2.2
-15.4
±100
mA
mA
ppm/°C
200
ms
t
DLY
*
5
V
IN
changes from
0.6V ~ 10V
50
