SP6577: DescriptionWide Band Low Power Amplifier, 5MHz Min, 500MHz Max, 1 Func, FP4, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size68KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

SP6577 Overview

Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max, 1 Func, FP4, 4 PIN

SP6577 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, 4 PIN
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	15 dB
Maximum input power (CW)	13 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD(UNSPEC)
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	55 mA
Maximum voltage standing wave ratio	2

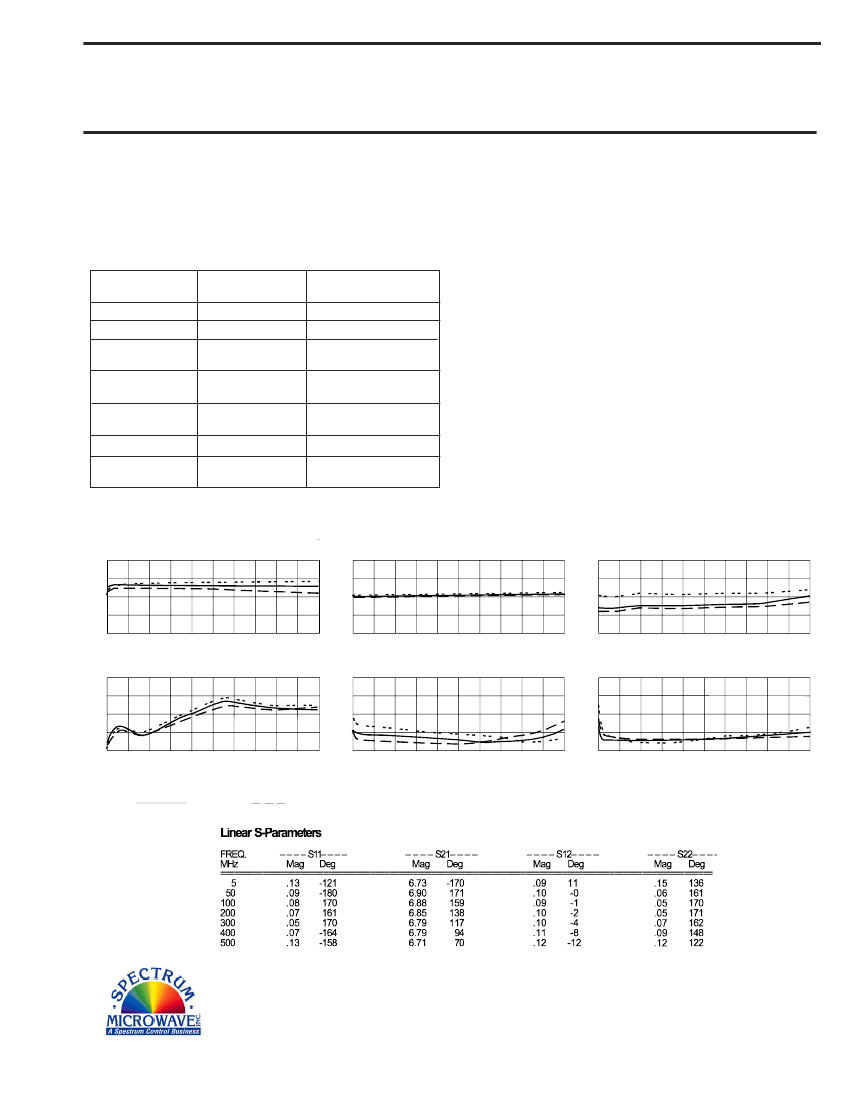

SP6577 Preview

RF AMPLIFIER

MODEL

TM6577

Features

High Gain: 16.5 dB Typical

Output Power: +17 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6577, 4 Pin TO-8 (T4)

TN6577, 4 Pin Surface Mount (SM3)

FP6577, 4 Pin Flatpack (FP4)

BX6577, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +48 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +42 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +32 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

5 - 500 MHz

16.5

+17

-18.5

<1.5:1

3.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

15.0 Min.

+15.0 Min.

-17 Max.

2.0:1 Max.

5.5 Max.

+15

55 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. +13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 500 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

+20

+19

+18

+17

+16

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

11/16/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
