BAS70A-AE3-R: Description0.07 A, 70 V, SILICON, SIGNAL DIODE; Categorysemiconductor Discrete semiconductor; File Size135KB，5 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/

Download Datasheet Parametric Compare View All

BAS70A-AE3-R Overview

0.07 A, 70 V, SILICON, SIGNAL DIODE

BAS70A-AE3-R Parametric

Parameter Name	Attribute value
Number of terminals	3
Number of components	1
Processing package description	LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-3
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Craftsmanship	SCHOTTKY
structure	SINGLE
Diode component materials	SILICON
Maximum power consumption limit	0.2000 W
Diode type	SIGNAL DIODE
Maximum reverse recovery time	0.0050 us
Maximum repetitive peak reverse voltage	70 V
Maximum average forward current	0.0700 A

Preview

Download Datasheet

View All

UNISONIC TECHNOLOGIES CO., LTD

BAS70x

SCHOTTKY BARRIER

DIODES

DESCRIPTION

Planar Schottky barrier diodes encapsulated in the SOT-23

small plastic SMD package. Single diodes and dual diodes

with different pin configuration are available.

DIODE

FEATURES

*·Low Turn-on voltage

* Fast switching

*·Ultra-small surface mount package

*·Also available in lead free version

*Pb-free plating product number: BAS70xL

ORDERING INFORMATION

Order Number

Normal

Lead Free Plating

BAS70-AE3-R

BAS70L-AE3-R

BAS70A-AE3-R

BAS70AL-AE3-R

BAS70C-AE3-R

BAS70CL-AE3-R

BAS70S-AE3-R

BAS70SL-AE3-R

Package

SOT-23

Pin Assignment

A2A1

K2K1

K2A1

Packing

Tape Reel

Note: Pin Assignment: A: Anode K: Cathode x:NC

BAS70L-AE3-R

(1)Packing Type

(2)Package Type

(3)Lead Plating

(1) R: Tape Reel

(2) AE3: SOT-23

(3) L: Lead Free Plating, Blank: Pb/Sn

www.unisonic.com.tw

1 of 3

QW-R601-017,B

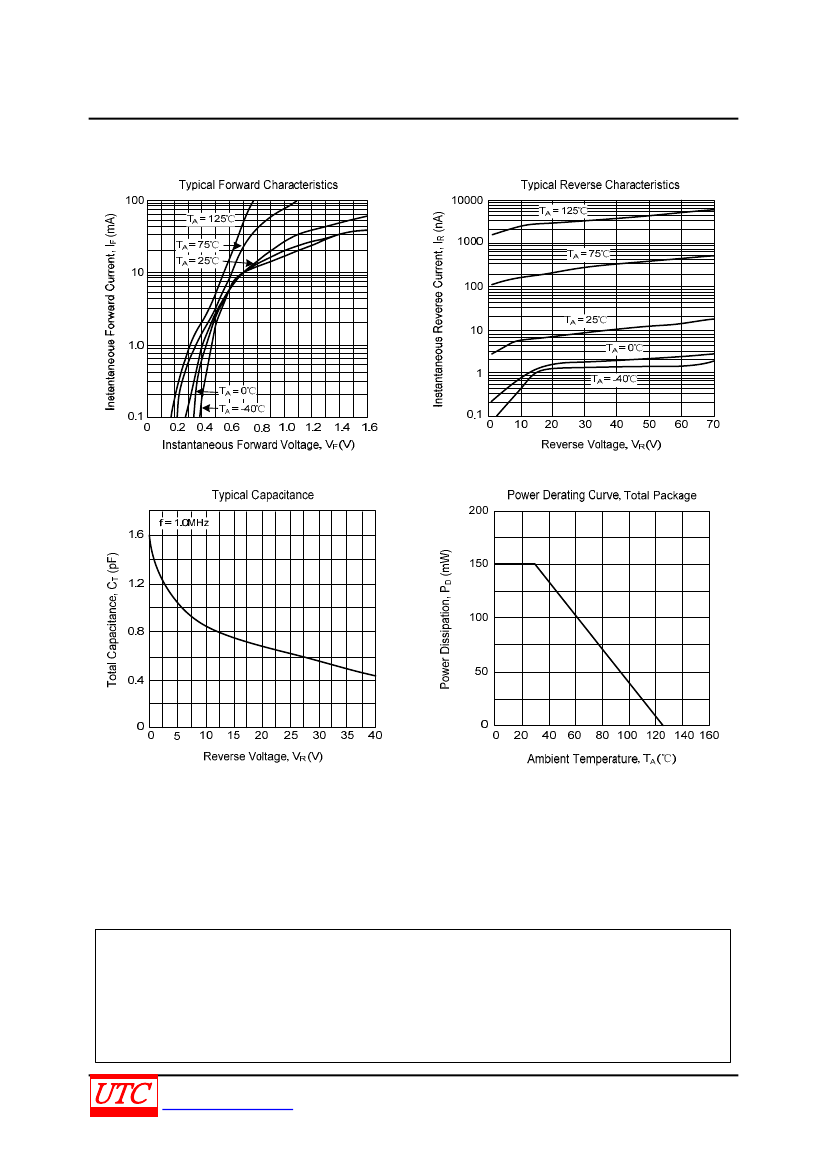

BAS70A-AE3-R Related Products

	BAS70A-AE3-R	BAS70SL-AE3-R	BAS70X_08	BAS70C-AE3-R	BAS70L-AE3-R	BAS70-AE3-R	BAS70AL-AE3-R	BAS70CL-AE3-R	BAS70X	BAS70S-AE3-R
Description	0.07 A, 70 V, SILICON, SIGNAL DIODE	0.07 A, 70 V, SILICON, SIGNAL DIODE	0.07 A, 70 V, SILICON, SIGNAL DIODE	0.07 A, 70 V, SILICON, SIGNAL DIODE	0.07 A, 70 V, SILICON, SIGNAL DIODE	0.07 A, 70 V, SILICON, SIGNAL DIODE	0.07 A, 70 V, SILICON, SIGNAL DIODE	0.07 A, 70 V, SILICON, SIGNAL DIODE	0.07 A, 70 V, SILICON, SIGNAL DIODE	0.07 A, 70 V, SILICON, SIGNAL DIODE
Number of terminals	3	3	3	3	3	3	3	3	3	3
Number of components	1	1	1	1	1	1	1	1	1	1
surface mount	Yes	YES	Yes	Yes	YES	Yes	YES	YES	Yes	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	SIGNAL DIODE	RECTIFIER DIODE	SIGNAL DIODE	SIGNAL DIODE	RECTIFIER DIODE	SIGNAL DIODE	RECTIFIER DIODE	RECTIFIER DIODE	SIGNAL DIODE	RECTIFIER DIODE
Maximum reverse recovery time	0.0050 us	0.005 µs	0.0050 us	0.0050 us	0.005 µs	0.0050 us	0.005 µs	0.005 µs	0.0050 us	0.005 µs
Maximum repetitive peak reverse voltage	70 V	70 V	70 V	70 V	70 V	70 V	70 V	70 V	70 V	70 V
