BT134W500 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BT134W500

Preview

BT134W500: DescriptionTRIAC, 500V V(DRM), 1A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size299KB，6 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

BT134W500 Overview

TRIAC, 500V V(DRM), 1A I(T)RMS

BT134W500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of commutation voltage - minimum value	10 V/us
Critical rise rate of minimum off-state voltage	100 V/us
Maximum DC gate trigger current	35 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	15 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.7 V
Maximum operating temperature	120 °C
Maximum rms on-state current	1 A
Off-state repetitive peak voltage	500 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

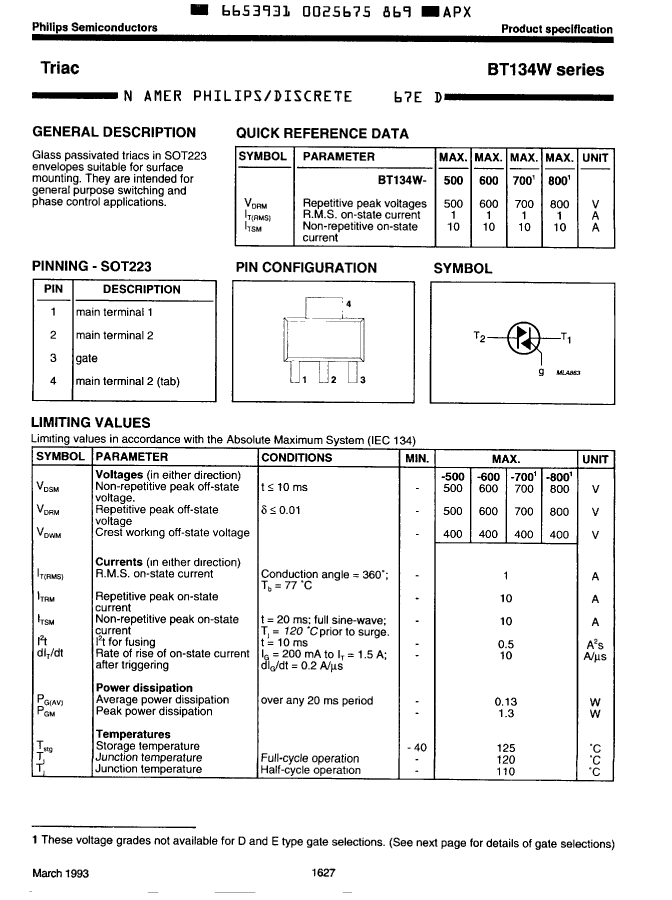

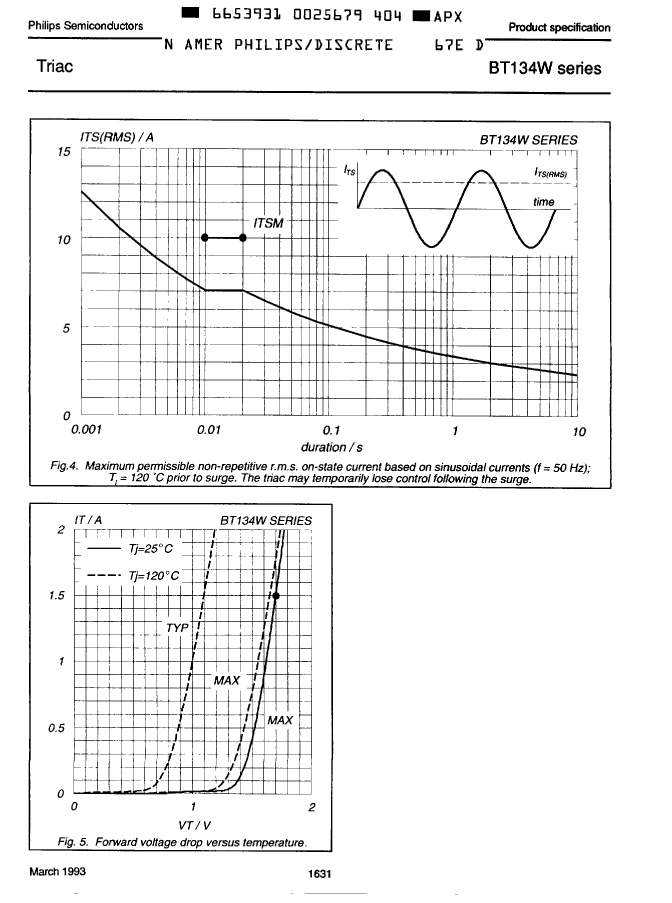

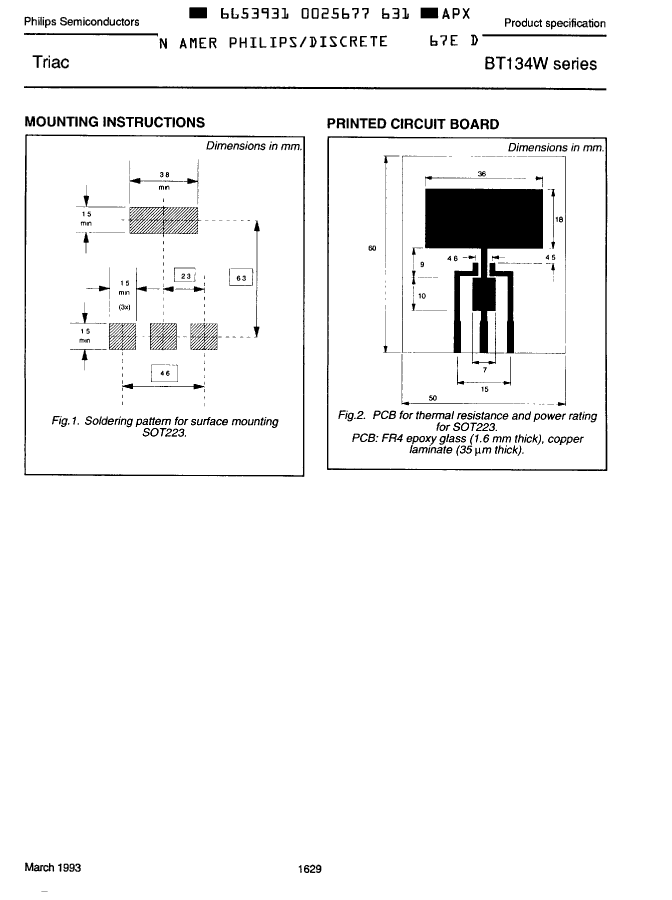

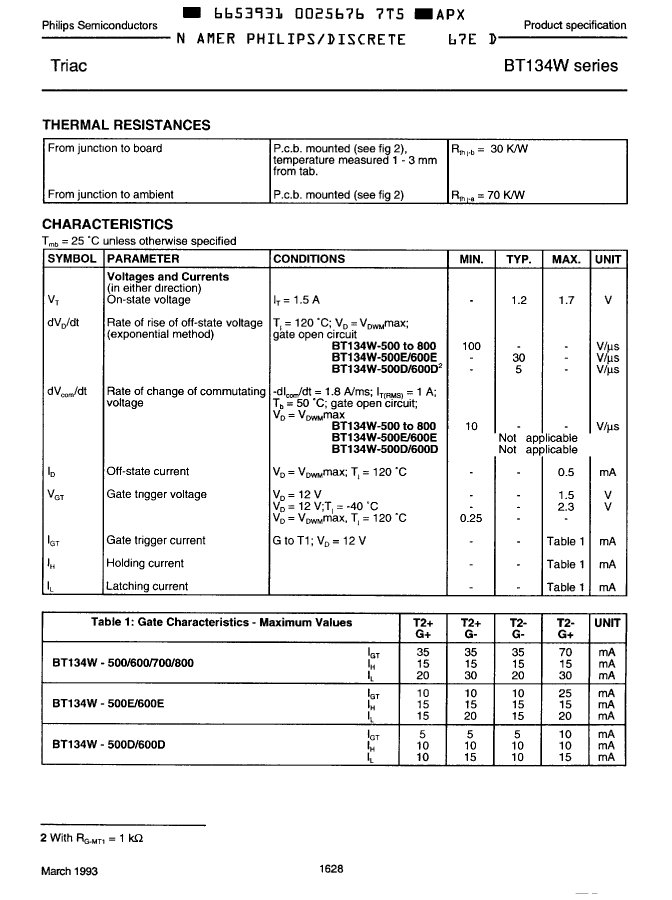

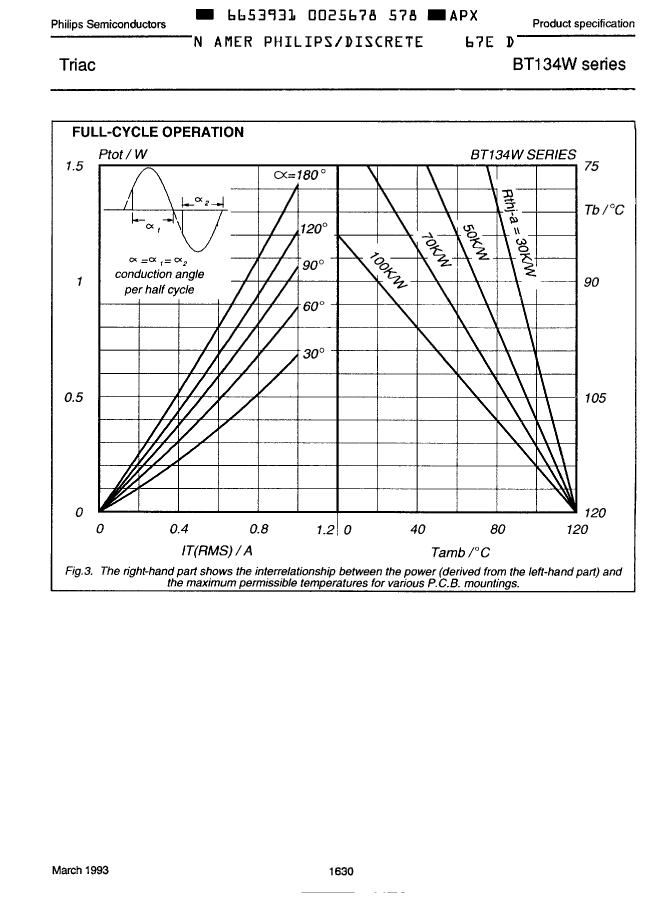

BT134W500 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BT134W500 Related Products

	BT134W500	BT134W500D	BT134W500E	BT134W700	BT134W600D	BT134W600E	BT134W800
Description	TRIAC, 500V V(DRM), 1A I(T)RMS	TRIAC, 500V V(DRM), 1A I(T)RMS	TRIAC, 500V V(DRM), 1A I(T)RMS	TRIAC, 700V V(DRM), 1A I(T)RMS,	TRIAC, 600V V(DRM), 1A I(T)RMS	TRIAC, 600V V(DRM), 1A I(T)RMS	TRIAC, 800V V(DRM), 1A I(T)RMS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Critical rise rate of minimum off-state voltage	100 V/us	5 V/us	30 V/us	100 V/us	5 V/us	30 V/us	100 V/us
Maximum DC gate trigger current	35 mA	5 mA	10 mA	35 mA	5 mA	5 mA	35 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	15 mA	10 mA	15 mA	15 mA	10 mA	10 mA	15 mA
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA
Maximum on-state voltage	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V
Maximum operating temperature	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C
Maximum rms on-state current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Off-state repetitive peak voltage	500 V	500 V	500 V	700 V	600 V	600 V	800 V
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
