BUK436W-800A,127 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> BUK436W-800A,127

BUK436W-800A,127: Description4A, 800V, 3ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247; CategoryDiscrete semiconductor The transistor; File Size222KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BUK436W-800A,127 Overview

4A, 800V, 3ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247

BUK436W-800A,127 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	800 V
Maximum drain current (ID)	4 A
Maximum drain-source on-resistance	3 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-247
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	16 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

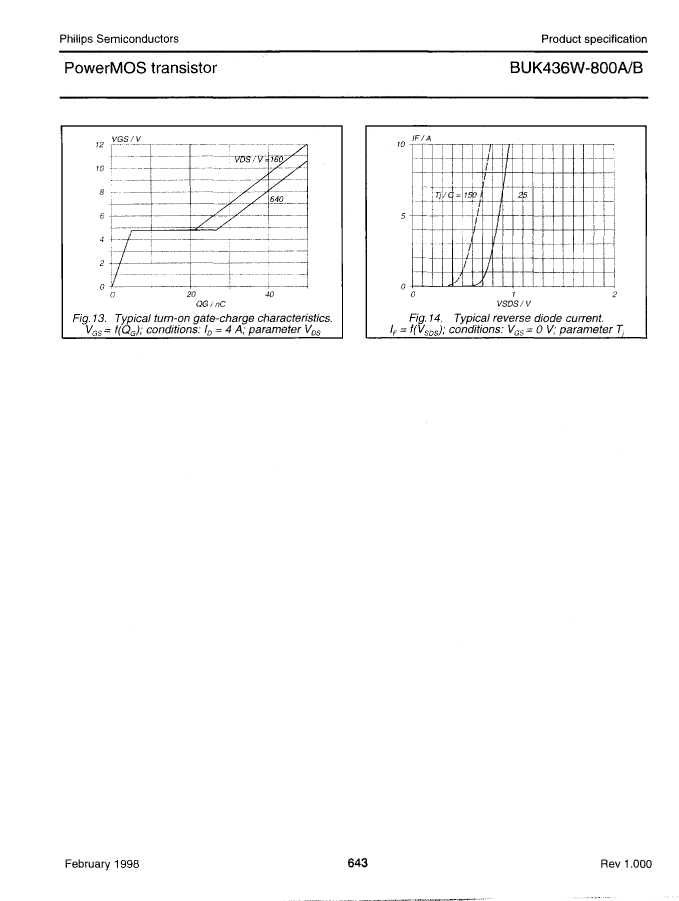

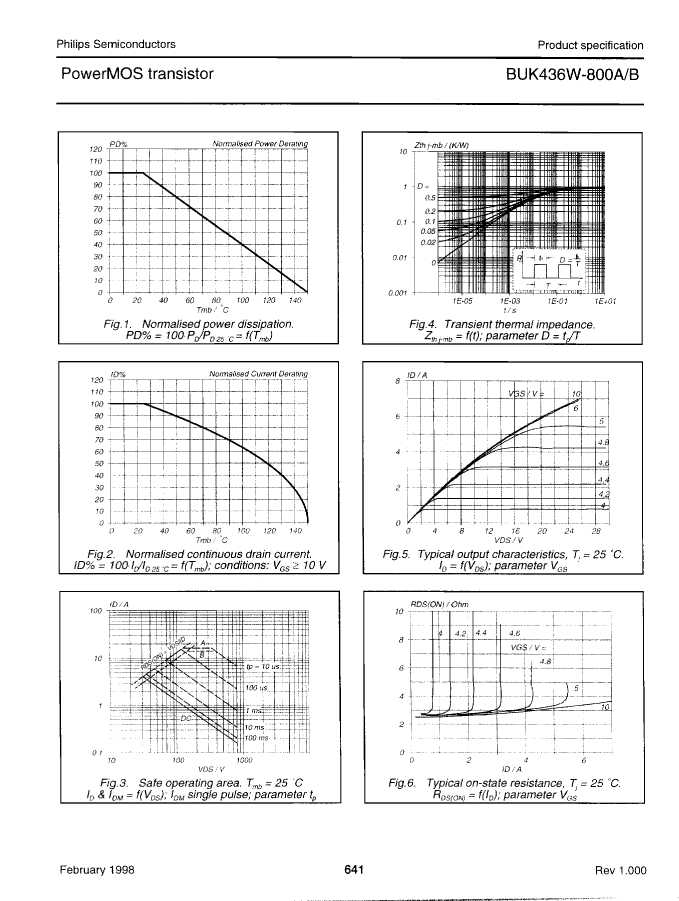

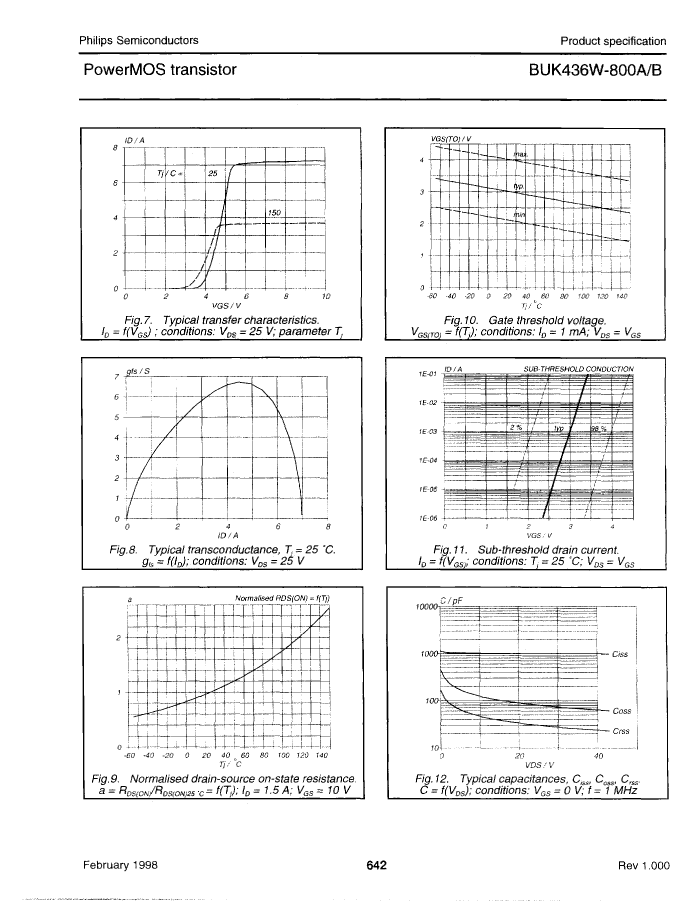

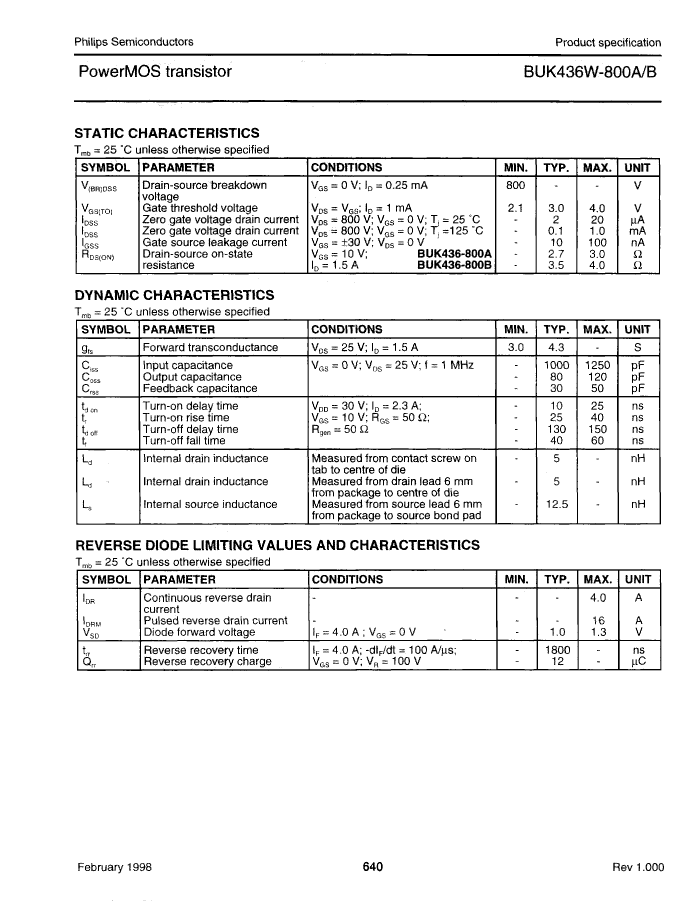

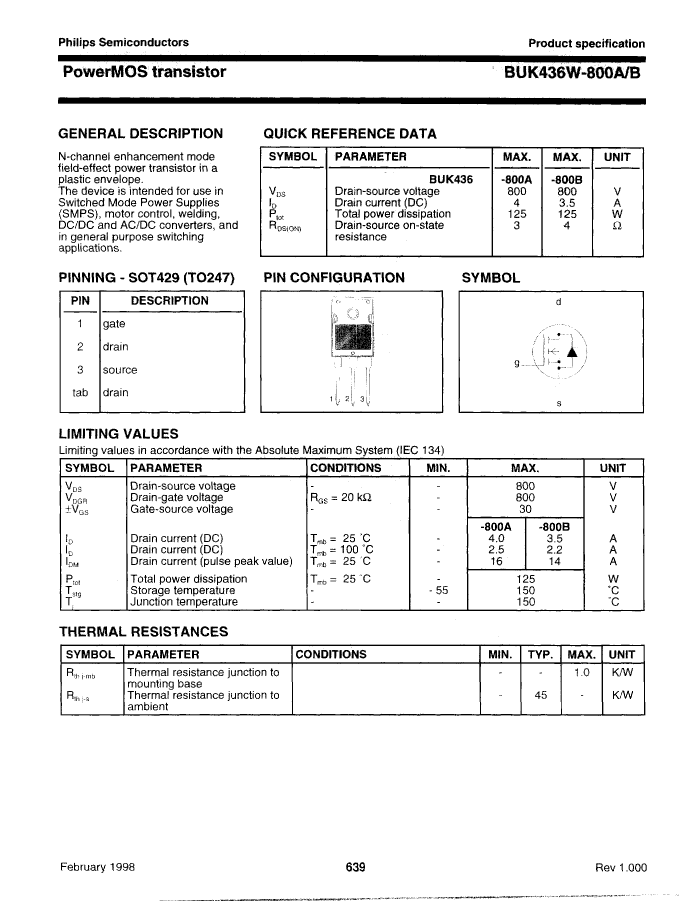

BUK436W-800A,127 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BUK436W-800A,127 Related Products

	BUK436W-800A,127	BUK436W-800A	BUK436W-800A127	BUK436W-800B	BUK436W-800B127	BUK436W-800B,127
Description	4A, 800V, 3ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247	TRANSISTOR 4 A, 800 V, 3 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, FET General Purpose Power	TRANSISTOR 4 A, 800 V, 3 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, FET General Purpose Power	TRANSISTOR 3.5 A, 800 V, 4 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, FET General Purpose Power	TRANSISTOR 3.5 A, 800 V, 4 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, FET General Purpose Power	3.5A, 800V, 4ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247
Maker	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Shell connection	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	800 V	800 V	800 V	800 V	800 V	800 V
Maximum drain current (ID)	4 A	4 A	4 A	3.5 A	3.5 A	3.5 A
Maximum drain-source on-resistance	3 Ω	3 Ω	3 Ω	4 Ω	4 Ω	4 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-247	TO-247	TO-247	TO-247	TO-247	TO-247
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	16 A	16 A	16 A	14 A	14 A	14 A
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum operating temperature	150 °C	-	150 °C	-	150 °C	150 °C
