BTRS-5640G: Description1310 nm TX / 1550 nm RX , 3.3V / 622 Mbps RoHS Compliant Single-Fiber Transceiver; CategoryWireless rf/communication Optical fiber; File Size135KB，7 Pages; ManufacturerOptoway; Websitehttp://www.optoway.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BTRS-5640G Overview

1310 nm TX / 1550 nm RX , 3.3V / 622 Mbps RoHS Compliant Single-Fiber Transceiver

BTRS-5640G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE
Reach Compliance Code	compli
Other features	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1480 NM TO 1580 NM

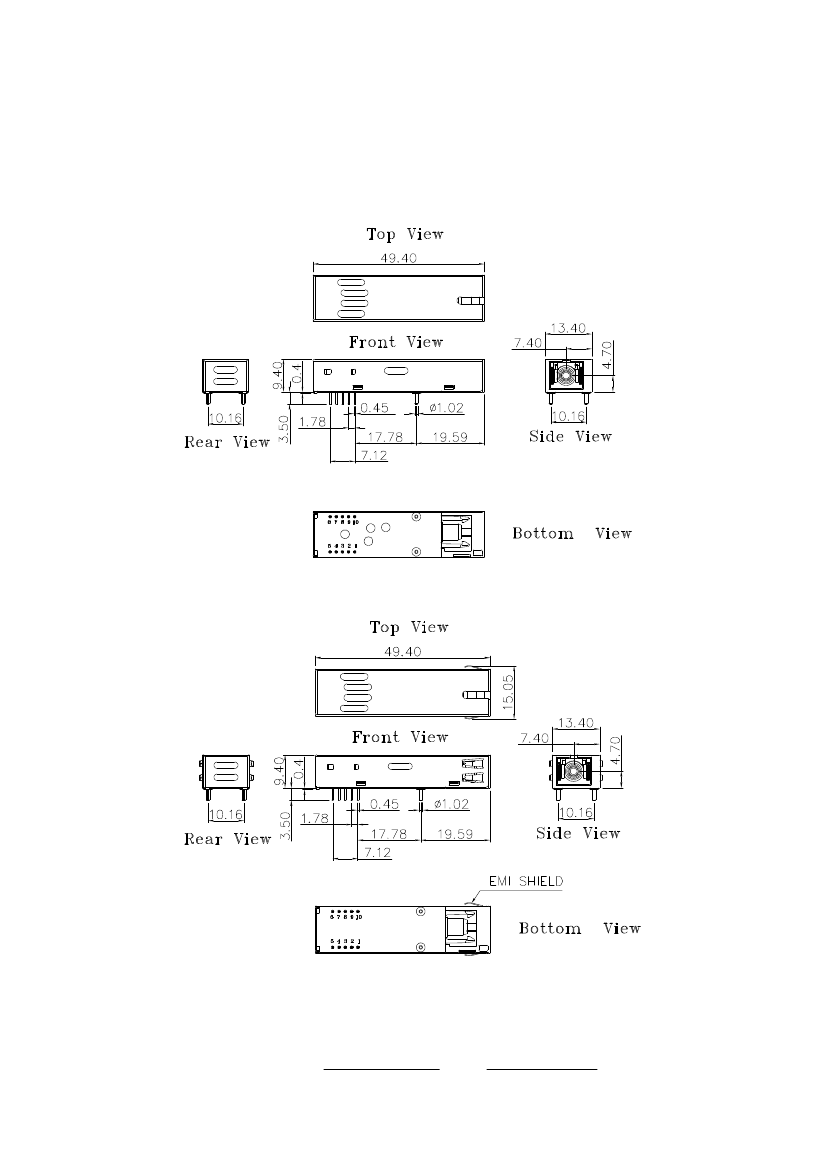

body width	13.4 mm
body height	9.8 mm
Body length or diameter	49.4 mm
Built-in features	AMPLIFIER
Communication standards	SDH, SONET
Data rate (receive)	622 Mbps
Data rate (send)	622 Mbps
Emitter/Detector Type	LASER
Fiber optic equipment types	TRANSCEIVER
Fiber type	9/125, SMF
Installation features	PANEL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1345 nm
Minimum operating wavelength	1285 nm
Nominal operating wavelength	1310 nm
Nominal optical power output	0.562 mW
minimum return loss	20 dB
Sensitivity	-28 dBm
Maximum supply voltage	3.47 V
Minimum supply voltage	3.13 V
Nominal supply voltage	3.3 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

Optoway

FEATURES

BTRS-5640G

***********************************************************************************************************************************************************************

BTRS-5640G / BTRS-5640-SPG / BTRS-5640AG / BTRS-5640A-SPG

1310 nm TX / 1550 nm RX , 3.3V / 622 Mbps

RoHS Compliant

Single-Fiber Transceiver

**********************************************************************************************************************************************************************

DESCRIPTION

Single Fiber Bi-Directional Transceiver

1310 nm Transmitter

1550 nm Receiver

Distance Up to 40 km

Single +3.3 V Power Supply

Speed up to 650 Mb/s

RoHS Compliant

PECL Differential Inputs and Outputs

0 to 70

C Operating Temperature: BTR-5640G

-20 to 85

C Operating Temperature: BTR-5640AG

Wave Solderable and Aqueous Washable

Class 1 Laser International Safety Standard IEC-60825

Compliant

The BTRS-5640G series is high performance module for

single fiber communications by using 1310 nm transmitter

and 1550 nm receiver. The transmitter section uses a

multiple quantum well laser and is a class 1 laser compliant

according to International Safety Standard IEC-60825. The

receiver section uses an integrated 1550 nm detector

preamplifier (IDP) mounted in an optical header and a

limiting post-amplifier IC. A PECL logic interface

simplifies interface to external circuitry.

LASER SAFETY

This single mode transceiver is a Class 1 laser product. It

complies with IEC-60825 and FDA 21 CFR 1040.10 and

1040.11. The transceiver must be operated within the

specified temperature and voltage limits. The optical ports

of the module shall be terminated with an optical connector

or with a dust plug.

APPLICATIONS

WDM 622 Mb/s Links

SONET/SDH Equipment Interconnect

Fast Ethernet & Fiber Channel Links

ORDER INFORMATION

P/No.

Bit Rate

(Mb/s)

622

Distance

(km)

(nm)

1310

(nm)

1550

Voltage

(V)

3.3

Package

Temp

(

0 to 70

-20 to 85

Power

(dBm)

0 to -5

RX Sens.

RoHS

(dBm) Compliant

-28

Yes

BTRS-5640G

BTRS-5640AG

2X5 SC

Note: 1. BTRX-XXXXXG is receptacle type package with standard case

2. BTRX-XXXXXEG is receptacle type package with extended case

3. BTRX-XXXXX-APBBBG is pigtail type package with different connector, A=S is SC connector, A=F is FC

connector, A=T is ST connector, A=L is LC connector, A=M is MU connector; BBB is the length of fiber in cm.

***********************************************************************************************************************************************************************

OPTOWAY TECHNOLOGY INC.

No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303

Tel: 886-3-5979798

Fax: 886-3-5979737

E-mail: sales@optoway.com.tw http: // www.optoway.com.tw 10/1/2009 V4.0

BTRS-5640G Related Products

	BTRS-5640G	BTRS-5640A-SPG	BTRS-5640-SPG	BTRS-5640AG	BTRS-5640G_09
Description	1310 nm TX / 1550 nm RX , 3.3V / 622 Mbps RoHS Compliant Single-Fiber Transceiver	1310 nm TX / 1550 nm RX , 3.3V / 622 Mbps RoHS Compliant Single-Fiber Transceiver	1310 nm TX / 1550 nm RX , 3.3V / 622 Mbps RoHS Compliant Single-Fiber Transceiver	1310 nm TX / 1550 nm RX , 3.3V / 622 Mbps RoHS Compliant Single-Fiber Transceiver	1310 nm TX / 1550 nm RX , 3.3V / 622 Mbps RoHS Compliant Single-Fiber Transceiver
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	-
package instruction	ROHS COMPLIANT PACKAGE	ROHS COMPLIANT PACKAGE	ROHS COMPLIANT PACKAGE	ROHS COMPLIANT PACKAGE	-
Reach Compliance Code	compli	compli	compli	compli	-
Other features	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1480 NM TO 1580 NM	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1480 NM TO 1580 NM	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1480 NM TO 1580 NM	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1480 NM TO 1580 NM	-
Built-in features	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	-
Communication standards	SDH, SONET	SDH, SONET	SDH, SONET	SDH, SONET	-
Data rate (receive)	622 Mbps	622 Mbps	622 Mbps	622 Mbps	-
Data rate (send)	622 Mbps	622 Mbps	622 Mbps	622 Mbps	-
Emitter/Detector Type	LASER	LASER	LASER	LASER	-
Fiber optic equipment types	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	-
Fiber type	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	-
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	-
Maximum operating wavelength	1345 nm	1345 nm	1345 nm	1345 nm	-
Minimum operating wavelength	1285 nm	1285 nm	1285 nm	1285 nm	-
Nominal operating wavelength	1310 nm	1310 nm	1310 nm	1310 nm	-
Nominal optical power output	0.562 mW	0.562 mW	0.562 mW	0.562 mW	-
minimum return loss	20 dB	20 dB	20 dB	20 dB	-
Sensitivity	-28 dBm	-28 dBm	-28 dBm	-28 dBm	-
Maximum supply voltage	3.47 V	3.47 V	3.47 V	3.47 V	-
Minimum supply voltage	3.13 V	3.13 V	3.13 V	3.13 V	-
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	-
surface mount	NO	NO	NO	NO	-
Base Number Matches	1	1	1	1	-
