MODS-A-8P8C-E-S datasheet, PDF

Datasheet> All Categories > The connector> The connector> MODS-A-8P8C-E-S

MODS-A-8P8C-E-S: DescriptionTelecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking Mech, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

MODS-A-8P8C-E-S Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking Mech, Jack, ROHS COMPLIANT

MODS-A-8P8C-E-S Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHIELDED
Board mount options	SPLIT BOARD LOCK
body width	0.535 inch
subject depth	0.835 inch
body length	0.626 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	90 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

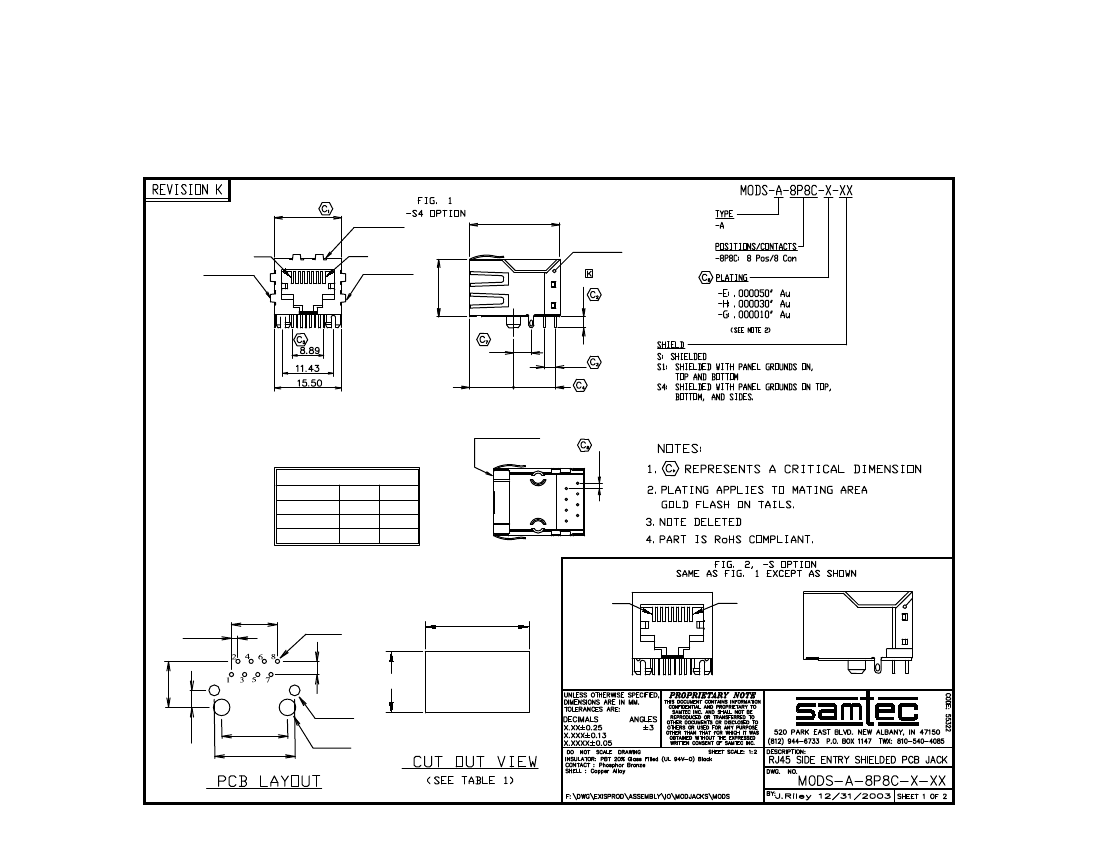

Preview

Download Datasheet

View All

1.27

"A"

"B"

MODS-A-8P8C-E-S Related Products

	MODS-A-8P8C-E-S	MODS-A-8P8C-H-S1	MODS-A-8P8C-H-S	MODS-A-8P8C-E-S1	MODS-A-8P8C-E-S4	MODS-A-8P8C-G-S1	MODS-A-8P8C-G-S
Description	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking Mech, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown	unknow	unknow
Other features	SHIELDED	RJ45	RJ45	RJ45	SHIELDED	RJ45	SHIELDED
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50)	GOLD (30)	GOLD (30)	GOLD (50)	GOLD (50)	GOLD (10)	GOLD (15)
Contact completed and terminated	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD FLASH
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD AND PANEL	BOARD	BOARD AND PANEL	BOARD	BOARD AND PANEL	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8	8	8	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	-	MODS	MODS	MODS	MODS-A	MODS	MODS-A
