HM2P70PDH2M5GF datasheet, PDF - EEWORLD Datasheet

HM2P70PDH2M5GF: DescriptionBoard Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size183KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P70PDH2M5GF Overview

Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	22 GROUND SHIELD CONTACTS IN 1 ROW ALSO AVAILABLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HM
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	132
UL Flammability Code	94V-0

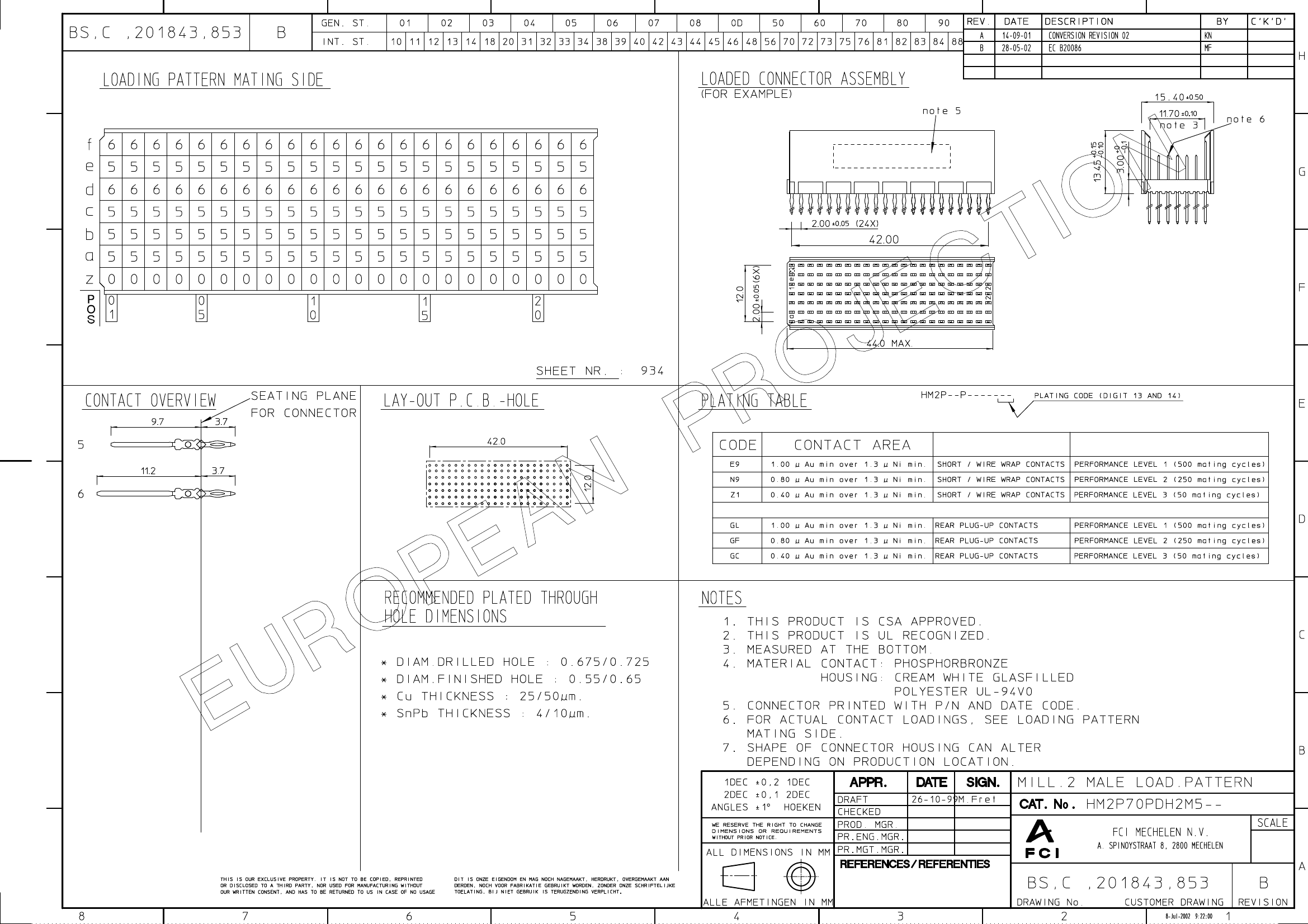

PDM: Rev:B

STATUS:

Released

Printed: Oct 01, 2002

	HM2P70PDH2M5GF	HM2P70PDH2M5GC	HM2P70PDH2M5GL
Description	Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Other features	22 GROUND SHIELD CONTACTS IN 1 ROW ALSO AVAILABLE	22 GROUND SHIELD CONTACTS IN 1 ROW ALSO AVAILABLE	22 GROUND SHIELD CONTACTS IN 1 ROW ALSO AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	HM	HM	HM
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	6	6	6
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	132	132	132
UL Flammability Code	94V-0	94V-0	94V-0
