1650 nm DFB LASER DIODE MODULES
UNCOOLED MQW DFB LD WITH RECEPTACLE
FEATURES
1650 nm Uncooled Laser Diode with MQW Structure
High Reliability, Long Operation Life
Single Frequency Operation with High SMSR
0 to 70
o
C operation without active cooling
Build-in InGaAs monitor
Build-in single stage isolator
DL-5500-1650
********************************************************************************************************************************************************
DL-5500-1650 Series
*******************************************************************************************************************************************************
APPLICATION
Trunk Line, FitL
DESCRIPTION
DL-5500-1650 series are designed for coupling a single mode optical fiber with 1650 nm MQW DFB uncooled
laser diode. DL-5500-1650 series are the best kits as light sources for telecom and datacom applications.
ELECTRICAL AND OPTICAL CHARACTERISTICS (T
C
=25 °C)
Symbol
I
th
V
OP
P
f
Parameter
Threshold Current
Operating Voltage
Optical Output Power
Part No:DL-552XX-1650
DL-553XX -1650
Center Wavelength
Side Mode Suppression Ratio
Rise And Fall Times
Part No:DL-55XX-1650
DL-55XXS-1650
Tracking Error
PD Monitor Current
PD Dark Current
CW
CW, I
F
=Ith+25mA
CW, I
F
=Ith+25mA
1.0
2.0
1640
30
2.0
3.0
1660
mW
nm
dB
226
150
1.5
ps
dB
μA
0.1
μA
Test Conditions
Min.
Typ.
10
1.2
Max.
15
1.5
Unit
mA
V
λc
SMSR
t
r
, t
f
CW, I
th
+25mA
CW, I
th
+25mA
I
F
=I
th
, I
th
+25mA,20~80%
1650
35
ΔP
f
/ P
f
I
m
I
D
APC, 0~+70 ºC
CW, I
th
+25mA,V
RD
=1V
V
RD
=5V
-1.5
100
C
t
PD Capacitance
V
RD
=5V, f=1MHz
10
15
pF
ABSOLUTE MAXIMUM RATINGS (T
C
=25 ºC)
Symbol
P
o
V
RL
V
RD
I
FD
T
opr
T
stg
Parameter
Optical Output Power
(552XX/553XX)
LD Reverse Voltage
PD Reverse Voltage
PD Forward Current
Operating Temperature
Storage Temperature
Ratings
1.5/3
2
10
1.0
0 to 70
-40~+85
Unit
mW
V
V
mA
ºC
ºC
*******************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax:886-3-5979737
e-mail: sales@optoway.com.tw
http: // www.optoway.com.tw
4/10/2009 V3.0
Optoway

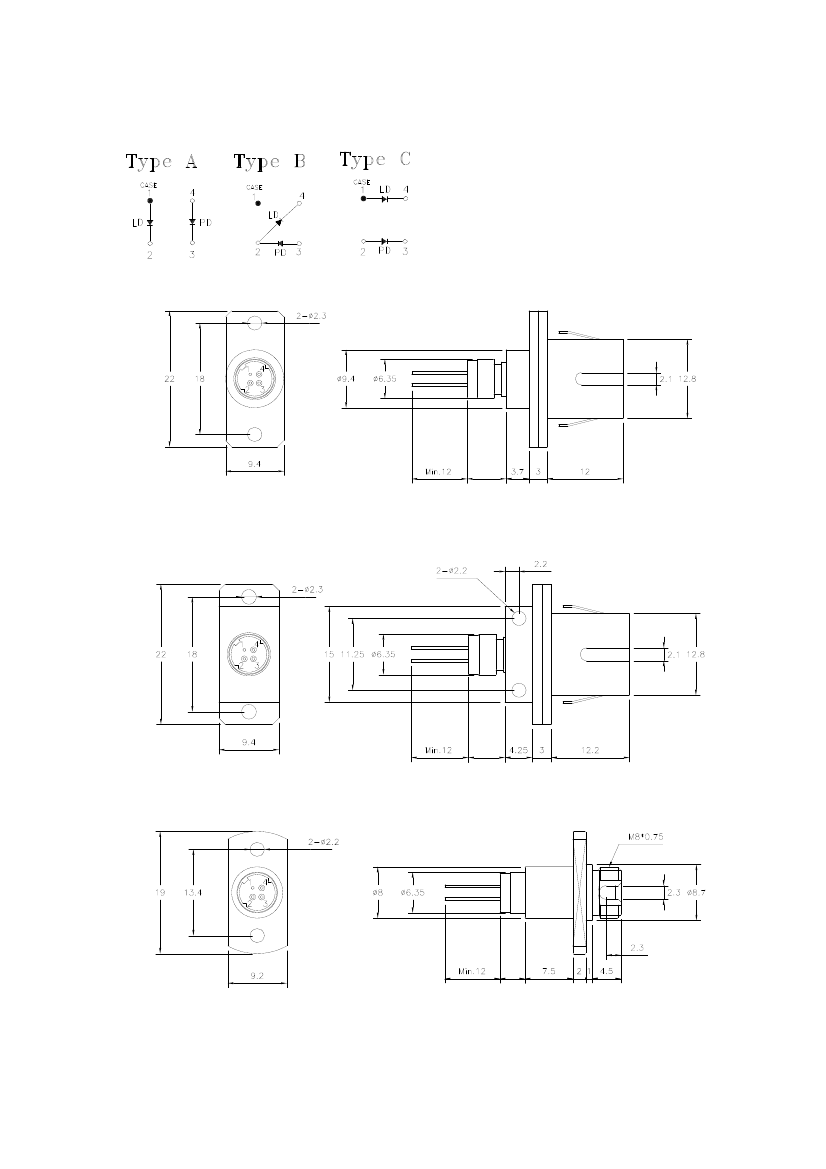

MECHANICAL DIMENSION (mm) and PIN ASSIGNMENT
DL-5500-1650
********************************************************************************************************************************************************
Max.L
SC RECEPTACLE
(DL-55XXX-1650-SS)
Max.L
SC RECEPTACLE (BOARD MOUNT)
(DL-55XXX-1650-SBS)
Max.L
FC RECEPTACLE
(DL-55XXX-1650-FS)
*******************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax:886-3-5979737
e-mail: sales@optoway.com.tw
http: // www.optoway.com.tw
4/10/2009 V3.0
Optoway
DL-5500-1650
********************************************************************************************************************************************************
Max.L
FC RECEPTACLE (BOARD MOUNT)
(DL-55XXX-1650-FBS)
Max.L
ST RECEPTACLE
(DL-55XXX-1650-TS)
Max. L
Dimension
F
6.2
8.2
P//N
552XX-1650-XS
553XX-1650-XS
S
8.6
10.6
SB
8.0
10.0
FB
8.9
10.9
T
7.7
9.7
Note:
Specifications subject to change without notice.
ORDER INFORMATION
Part No.: D L
−
5 5
□ □ □
−
1 6 5 0
−
□
S
Code
2
3
Pout (mW)
1
2
Code Pin Assignment
0
Type A
5
Type B
8
Type C
Code
F
FB
T
S
SB
Code
Blank
S
Connector Type
FC/PC
FC/PC (Board Mount)
ST/PC
SC/PC
SC/PC (Board Mount)
Speed
1.25 Gbps
2.5 Gbps
Code
S
Isolator
Single-Stage
*******************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax:886-3-5979737
e-mail: sales@optoway.com.tw
http: // www.optoway.com.tw
4/10/2009 V3.0
Optoway
Revision History
Version
1.0
2.0
DL-5500-1650
********************************************************************************************************************************************************
Subject
Initial datasheet
1. Combine 1.25G and 2.5G characteristics in one data sheet
2. Revise FC RECEPTACLE (BOARD MOUNT) thread thru dim.:
M2 =
> UNC-2B
3. Revise drawing
Revise mechanical dimension and order information
Release Date
2004/8/1
2007/12/1
3.0
2009/4/10
*******************************************************************************************************************************************************
