CD74HCT4066E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> CD74HCT4066E

CD74HCT4066E: DescriptionSPST, 4 Func, 1 Channel, CMOS, PDIP14; CategoryAnalog mixed-signal IC The signal circuit; File Size140KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CD74HCT4066E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HCT4066E	-	-	View	Buy Now

CD74HCT4066E Overview

SPST, 4 Func, 1 Channel, CMOS, PDIP14

CD74HCT4066E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
normal position	NO
Number of channels	1
Number of functions	4
Number of terminals	14
Maximum on-state resistance (Ron)	142 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Maximum connection time	24 ns
switch	MAKE-BEFORE-BREAK
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

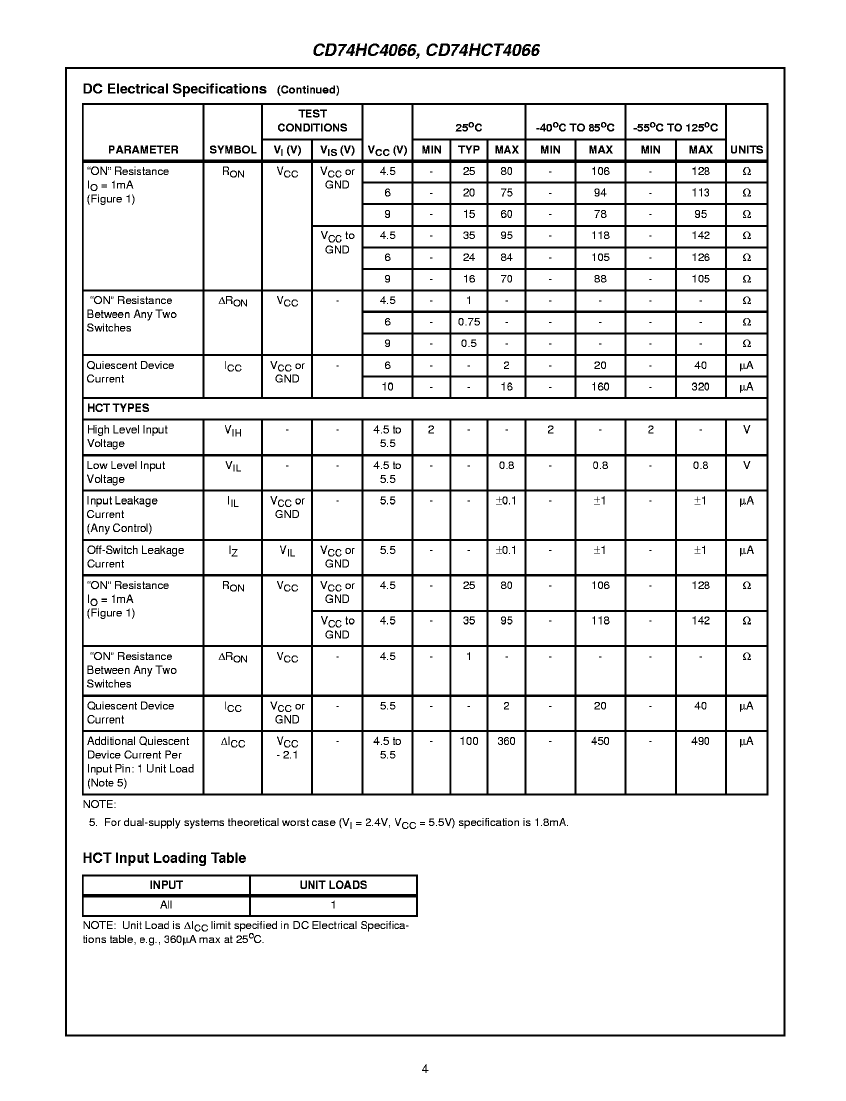

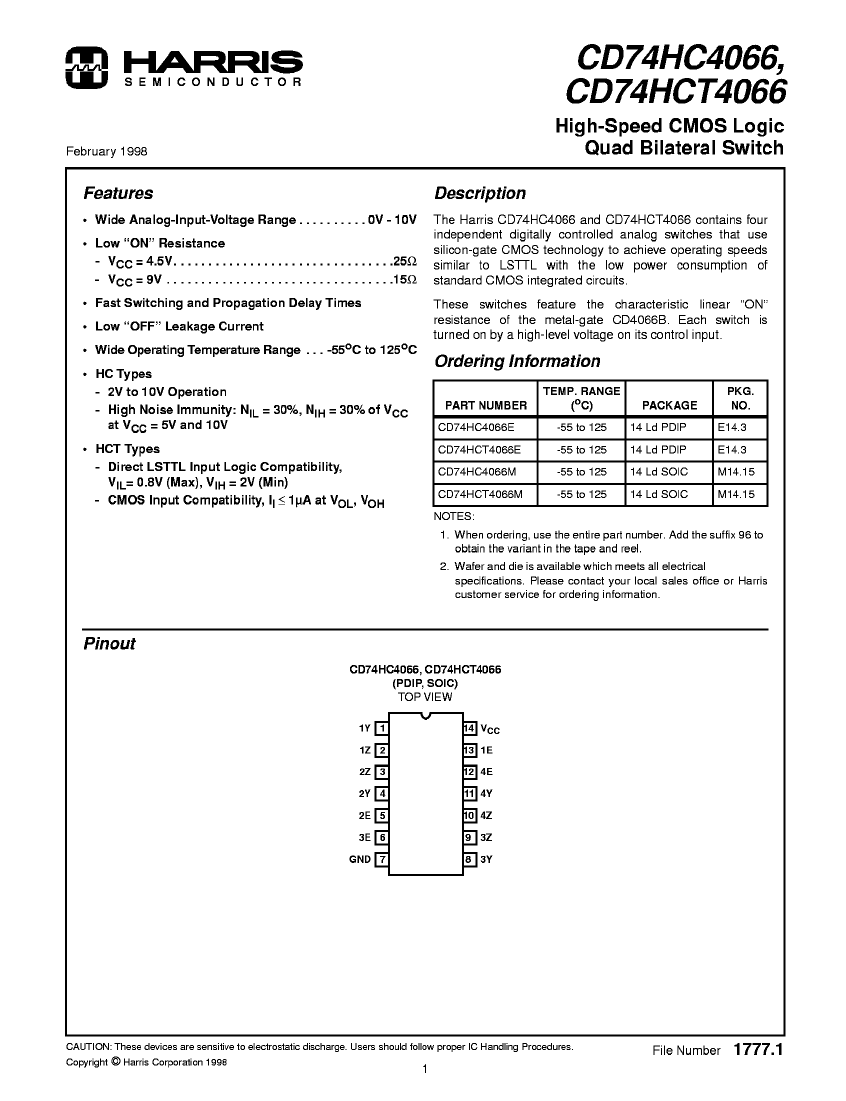

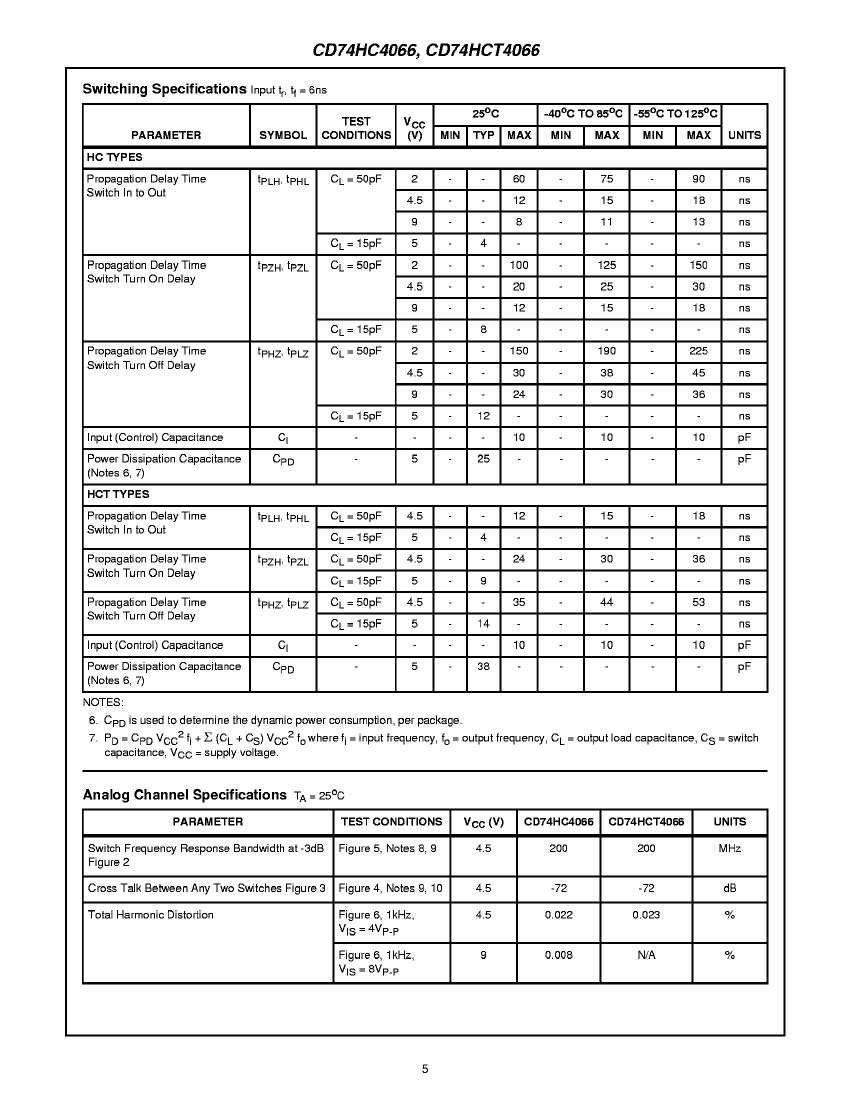

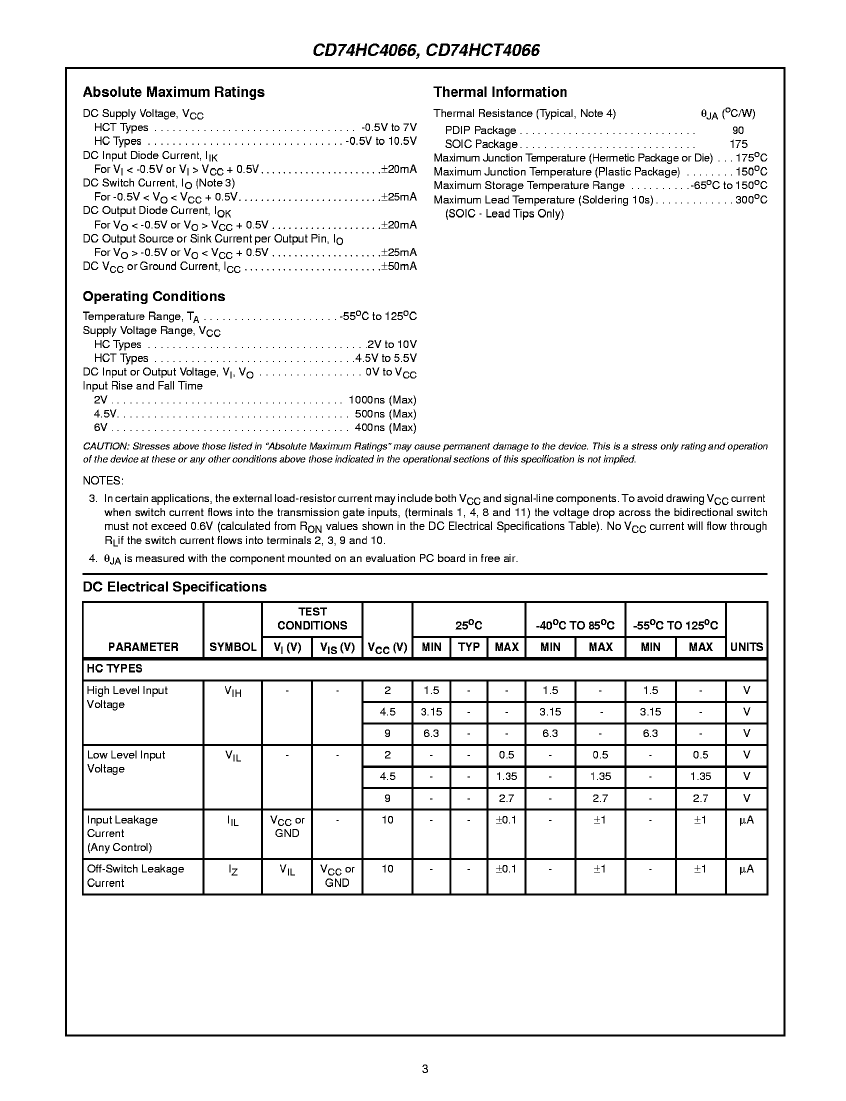

Preview

Download Datasheet

View All

CD74HCT4066E Related Products

	CD74HCT4066E	CD74HC4066E	CD74HCT4066M96	CD74HCT4066M	CD74HC4066M96	CD74HC4066M
Description	SPST, 4 Func, 1 Channel, CMOS, PDIP14	SPST, 4 Func, 1 Channel, CMOS, PDIP14	SPST, 4 Func, 1 Channel, CMOS, PDSO14	SPST, 4 Func, 1 Channel, CMOS, PDSO14	SPST, 4 Func, 1 Channel, CMOS, PDSO14	SPST, 4 Func, 1 Channel, CMOS, PDSO14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Harris	Harris	Harris	Harris	Harris	Harris
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e0	e0	e0	e0	e0	e0
normal position	NO	NO	NO	NO	NO	NO
Number of channels	1	1	1	1	1	1
Number of functions	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14
Maximum on-state resistance (Ron)	142 Ω	142 Ω	142 Ω	142 Ω	142 Ω	142 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	SOP14,.25	SOP14,.25	SOP14,.25	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	2/10 V	5 V	5 V	2/10 V	2/10 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	6 V	5 V	5 V	6 V	6 V
surface mount	NO	NO	YES	YES	YES	YES
Maximum connection time	24 ns	20 ns	24 ns	24 ns	20 ns	20 ns
switch	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
