1490 nm DFB LASER DIODE MODULES
UNCOOLED MQW DFB LD WITH RECEPTACLE
FEATURES
²
²
²
²
²
1490 nm Uncooled Laser Diode with MQW Structure
High Reliability, Long Operation Life
Single Frequency Operation with High SMSR
0 to 70
o
C operation without active cooling
Build-in InGaAs monitor
DL-5500-1490
**********************************************************************************************************************************************************
DL-5500-1490 Series
**********************************************************************************************************************************************************
APPLICATION
Trunk Line, FitL
DESCRIPTION
DL-5500-1490 series are designed for coupling a single mode optical fiber with 1490 nm MQW DFB uncooled
laser diode. DL-5500-1490 series are the best kits as light sources for telecom and datacom applications.
ELECTRICAL AND OPTICAL CHARACTERISTICS (T
C
=25
°C)
Symbol
I
th
V
OP
P
f
Parameter
Threshold Current
Operating Voltage
Optical Output Power
Part No:DL-552XX-1490
DL-553XX-1490
DL-554XX-1490
Center Wavelength
Side Mode Suppression Ratio
Rise And Fall Times
Part No:DL-55XX-1490
DL-55XXS-1490
Tracking Error
PD Monitor Current
PD Dark Current
CW
CW, I
F
=Ith+20mA
CW, I
F
=Ith+20mA
1.0
2.0
3.0
1483
30
2.0
3.0
-
1495
mW
Test Conditions
Min.
Typ.
10
1.2
Max.
15
1.5
Unit
mA
V
λc
SMSR
t
r
, t
f
CW, I
th
+20mA
CW, I
th
+20mA
I
F
=I
th
, I
th
+20mA,20~80%
1490
35
nm
dB
ΔP
f
/ P
f
I
m
I
D
APC, 0~+70
ºC
CW, I
th
+20mA,V
RD
=1V
V
RD
=5V
-1.5
100
226
150
1.5
ps
dB
μA
μA
0.1
C
t
PD Capacitance
V
RD
=5V, f=1MHz
10
15
pF
ABSOLUTE MAXIMUM RATINGS (T
C
=25
ºC)
Symbol
P
o
V
RL
V
RD
I
FD
T
opr
T
stg
Parameter
Optical Output Power
(552XX/553XX/554XX)
LD Reverse Voltage
PD Reverse Voltage
PD Forward Current
Operating Temperature
Storage Temperature
Ratings
1.5/3/4
2
10
1.0
0 to 70
-40~+85
Unit
mW
V
V
mA
ºC
ºC
**********************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax:886-3-5979737
e-mail: sales@optoway.com.tw
http: // www.optoway.com.tw
12/1/2007 V2.0
Optoway

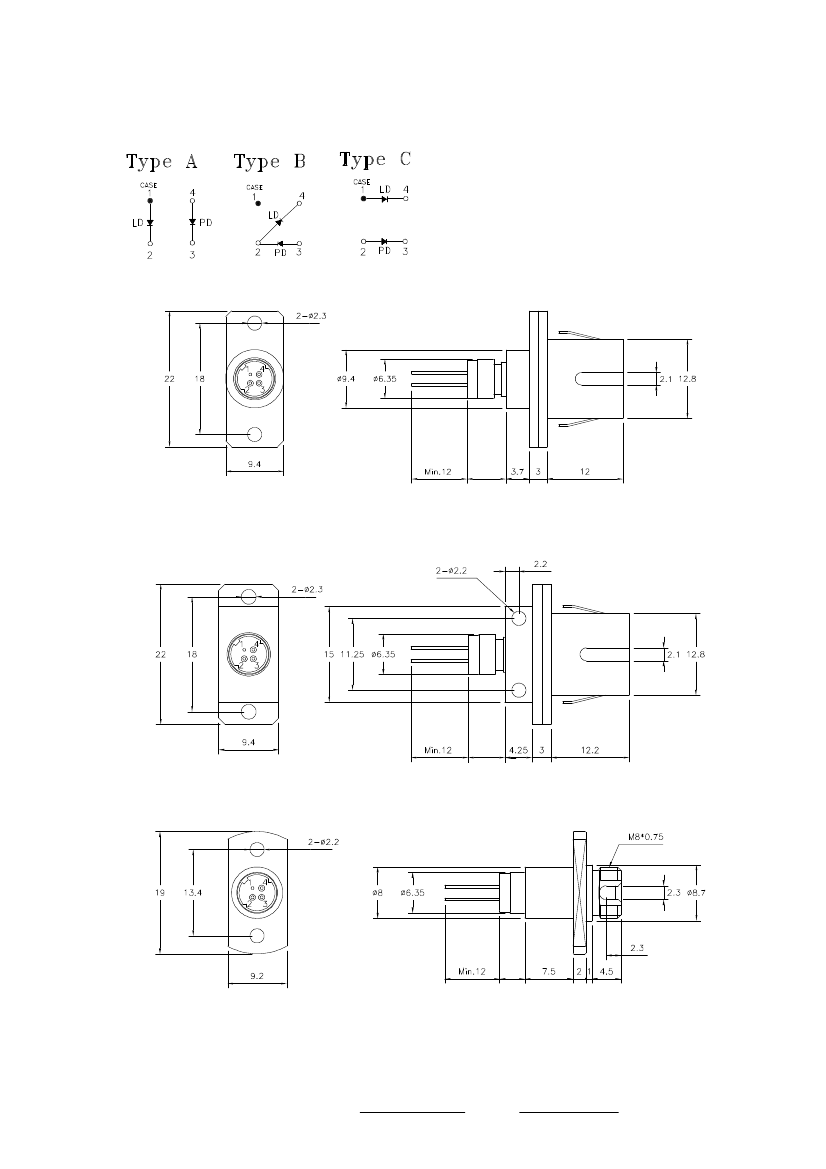

MECHANICAL DIMENSION (mm) and PIN ASSIGNMENT
DL-5500-1490
**********************************************************************************************************************************************************
Max.L
SC RECEPTACLE
(DL-55XXX-1490-SX)
Max.L
SC RECEPTACLE (BOARD MOUNT)
(DL-55XXX-1490-SBX)
Max.L
FC RECEPTACLE
(DL-55XXX-1490-FX)
**********************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax:886-3-5979737
e-mail: sales@optoway.com.tw
http: // www.optoway.com.tw
12/1/2007 V2.0
Optoway
DL-5500-1490
**********************************************************************************************************************************************************
Max.L
FC RECEPTACLE (BOARD MOUNT)
(DL-55XXX-1490-FBX)

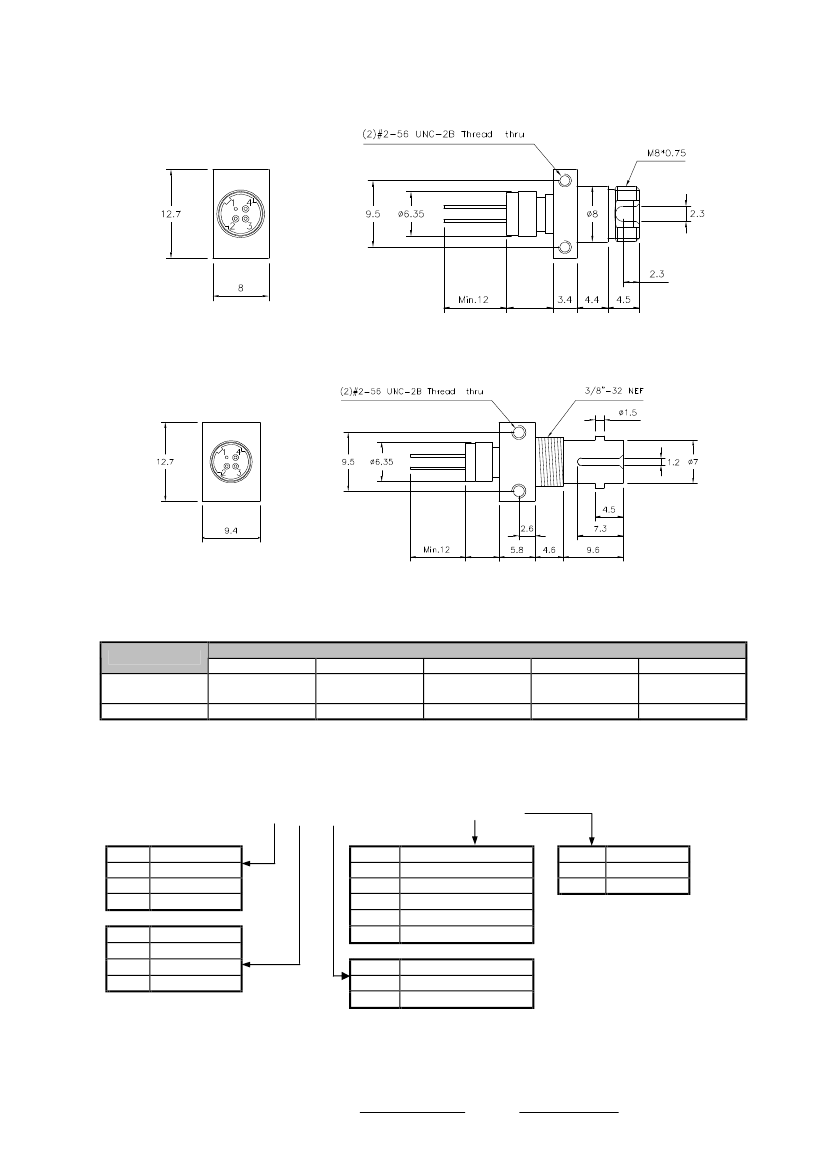

Max.L
ST RECEPTACLE
(DL-55XXX-1490-TX)
Max. L
Dimension
F
6.2
8.2
P//N
552XX-1490-XX
553XX-1490-XX
554XX-1490-XX
S
8.6
10.6
SB
8.0
10.0
FB
8.9
10.9
T
7.7
9.7
Note:
Specifications subject to change without notice.
ORDER INFORMATION
Part No.: D L
−
Code
2
3
4
Pout (mW)
1
2
3
5 5
□ □ □
−
1 4 9 0
−
□
Code
F
FB
T
S
SB
Code
Blank
S
□
Code
Blank
S
Isolator
No
Single-Stage
Code Pin Assignment
0
Type A
5
Type B
8
Type C
Connector Type
FC/PC
FC/PC (Board Mount)
ST/PC
SC/PC
SC/PC (Board Mount)
Speed
1.25 Gbps
2.5 Gbps
**********************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax:886-3-5979737
e-mail: sales@optoway.com.tw
http: // www.optoway.com.tw
12/1/2007 V2.0
Optoway
Revision History
Version
1.0
2.0
DL-5500-1490
**********************************************************************************************************************************************************
Subject
Initial datasheet
1. Combine 1.25G and 2.5G characteristics in one data sheet
2. Add 3mW products
3. Revise FC RECEPTACLE (BOARD MOUNT) thread thru dim.:
M2 =
> UNC-2B
4. Revise drawing
Release Date
2002/12/1
2007/12/1
**********************************************************************************************************************************************************
