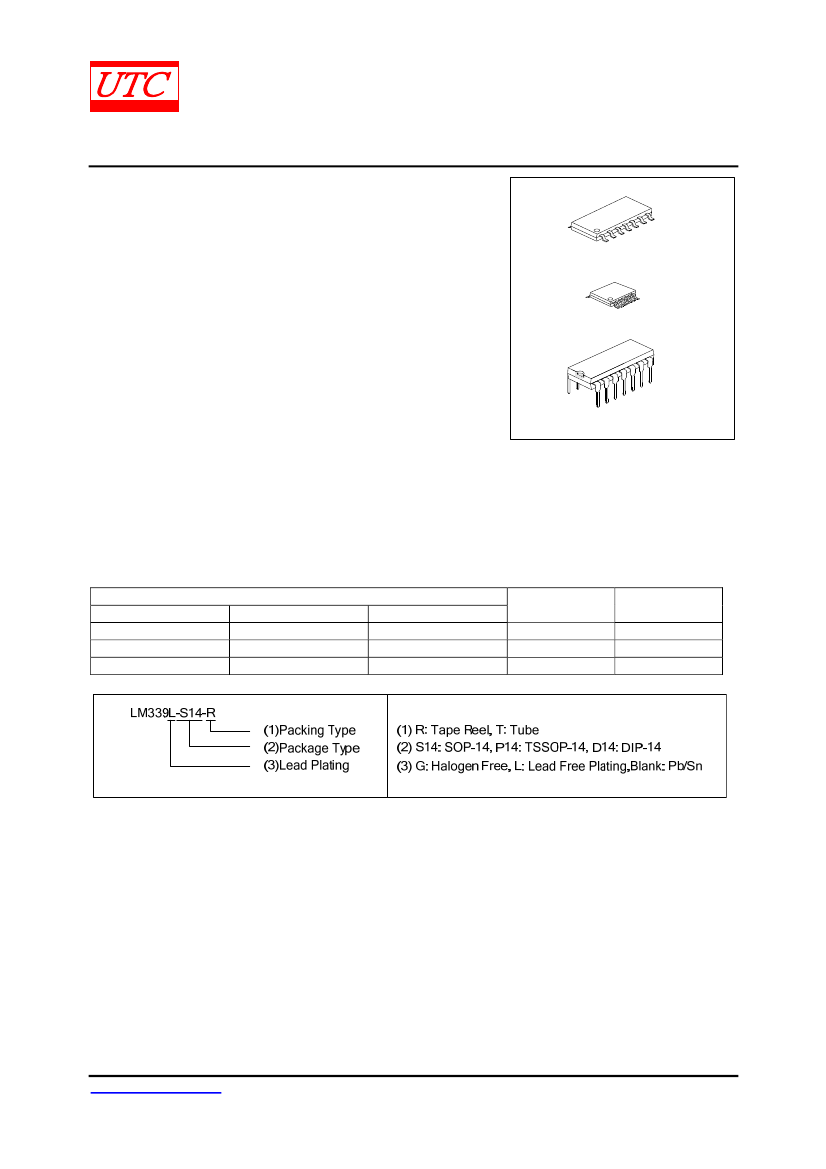

UNISONIC TECHNOLOGIES CO., LTD
LM339
QUAD DIFFERENTIAL
COMPARATOR
SOP-14
LINEAR INTEGRATED CIRCUIT
DESCRIPTION
The UTC
LM339
consists of four independent voltage
comparators, designed specifically to operate from a single
power supply over a wide voltage range.
TSSOP-14
FEATURES
*Signal or dual supply operation.
*Wide operating supply range (Vcc=2V~36V).
*Input common-mode voltage includes ground.
*Low supply current drain I
F
=0.8mA (Typical).
*Open collector outputs for wired and connection.
*Low input bias current I
BIAS
=25nA (Typical).
*Low output saturation voltage.
*Output compatible with TTL, DTL, and CMOS logic system.
DIP-14
Lead-free: LM339L
Halogen-free: LM339G
ORDERING INFORMATION
Normal
LM339-S14-R
LM339-P14-R
LM339-D14-T
Ordering Number
Lead Free Plating
LM339L-S14-R
LM339L-P14-R
LM339L-D14-T
Halogen-Free
LM339G-S14-R
LM339G-P14-R
LM339G-D14-T
Package
SOP-14
TSSOP-14
DIP-14
Packing
Tape Reel
Tape Reel
Tube
www.unisonic.com.tw
Copyright © 2010 Unisonic Technologies Co., LTD
1 of 7
QW-R104-001.H
LM339
PIN CONFIGURATION
LINEAR INTEGRATED CIRCUIT
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 7
QW-R104-001.H
LM339
BLOCK DIAGRAM
LINEAR INTEGRATED CIRCUIT
Only one section
T9
D2
D3
D4
T2
T1
T3
T4
T8
T12
T7
T5
T6
R1
D5
D6
T10
R2
D1
T11
Vcc
IN (-)
OUT
IN (+)
GND
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 7
QW-R104-001.H
LM339
ABSOLUTE MAXIMUM RATINGS
(Ta=25°C)
PARAMETER
SYMBOL
Vcc
V
I
(
DIFF
)
V
IN
LINEAR INTEGRATED CIRCUIT
RATINGS
UNIT
Supply Voltage
+- 18 or 36
V
Differential input Voltage
36
V
Input Voltage
-0.3~36
V
DIP-14
760
mW
Power Dissipation
P
D
SOP-14
560
mW
TSSOP-14
440
mW
Junction Temperature
T
J
125
°C
Operating Temperature
T
OPR
-20 ~ +85
°C
Storage Temperature
T
STG
-40 ~ 150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(Vcc=5.0V, Ta=25°C, All voltage referenced to GND unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
V
CM
=0 ~ Vcc-1.5
Input Offset Voltage
V
I(OFF)
V
OUT
(p)=1.4V, Rs=0
Input Offset Current
I
I(OFF)
Input Bias Current
I
BIAS
Input Common-Mode Voltage
V
IN(R)
Range
R
L
=∞
Supply Current
Icc
Large Signal Voltage Gain
G
V
Vcc=15V, R
L
>15kΩ
V
IN
=TTL logic wing
Large Signal Response Time
tres
V
REF
=1.4V, V
RL
=5V, R
L
=5.1kΩ
Response Time
tres
V
RL
=5V, R
L
=5.1kΩ
Output Sink Current
I
SINK
V
IN
(-)>1V, V
IN
(+)=0V, V
OUT
(p)<1.5V
Output Saturation Voltage
V
SAT
V
IN
(-)>1V, V
IN
(+)=0V, I
SINK
=4mA
V
IN
(+)=1V,V
IN
(-)=0
V
OUT
(p)= 5V
Output Leakage Current
I
LEAK
V
OUT
(p)=30V
Differential Input Voltage
V
IN
(
DIFF
)
MIN
TYP.
+-1.5
+-2.3
57
0
50
1.1
200
350
6
1400
18
140
0.1
1.0
36
MAX
+-5.0
+-50
250
Vcc-1.5
2.0
UNIT
mV
nA
nA
V
mA
V/mV
ns
ns
mA
mV
nA
μA
V
400
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 7
QW-R104-001.H
LM339
TYPICAL CHARACTERISTICS
Fig.1 Supply Current
2.2
2.0
Ta=-40℃
LINEAR INTEGRATED CIRCUIT
Fig.2 Input Current
110
100
Ta=-40℃
Supply Current (mA)
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
5
10
15
Ta=-25℃
Ta=25℃
Input Current (mA)
1.8
90
80
70
60
50
40
30
Ta=25℃
Ta=-25℃
Ta=70℃
Ta=70℃
R
L
=∞
20
10
30
35
40
0
5
10
15
Vcm=0V
DC
Rcm=1GΩ
20
25
30
35
40
20
25
Supply Voltage (V)
Supply Current (V)
Fig.4 Reponse Time For Various Input
Overdrive Negative Transition
Input Voltage
(mV)
Fig.3 Output Saturation Voltage
10
1
Ta=25℃
0
-100
1
Saturation Voltage(V)
-1
10
Output Voltage
(V)
Ta=85℃
-2
10
Ta=-40℃
Ta=25℃
-3
10
-2
10
-1
10
1
10
1
10
2
6.0
4.0
2.0
0
0
0.4
0.8
50mV
20mV
Input Overdrive
5.0mV
1.2
1.6
Output Sink Current (mA)
Time (
μs)
Fig.5 Reponse Time For Various Input
Overdrive Positive Transition
Input Voltage (mV)
Ta=25℃
100
0
Output Voltage (V)
6.0
4.0
2.0
0
0
0.4
0.8
1.2
1.6
Input Overdrive
50mV
20mV 5.0mV
Time (
μs)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 7
QW-R104-001.H
