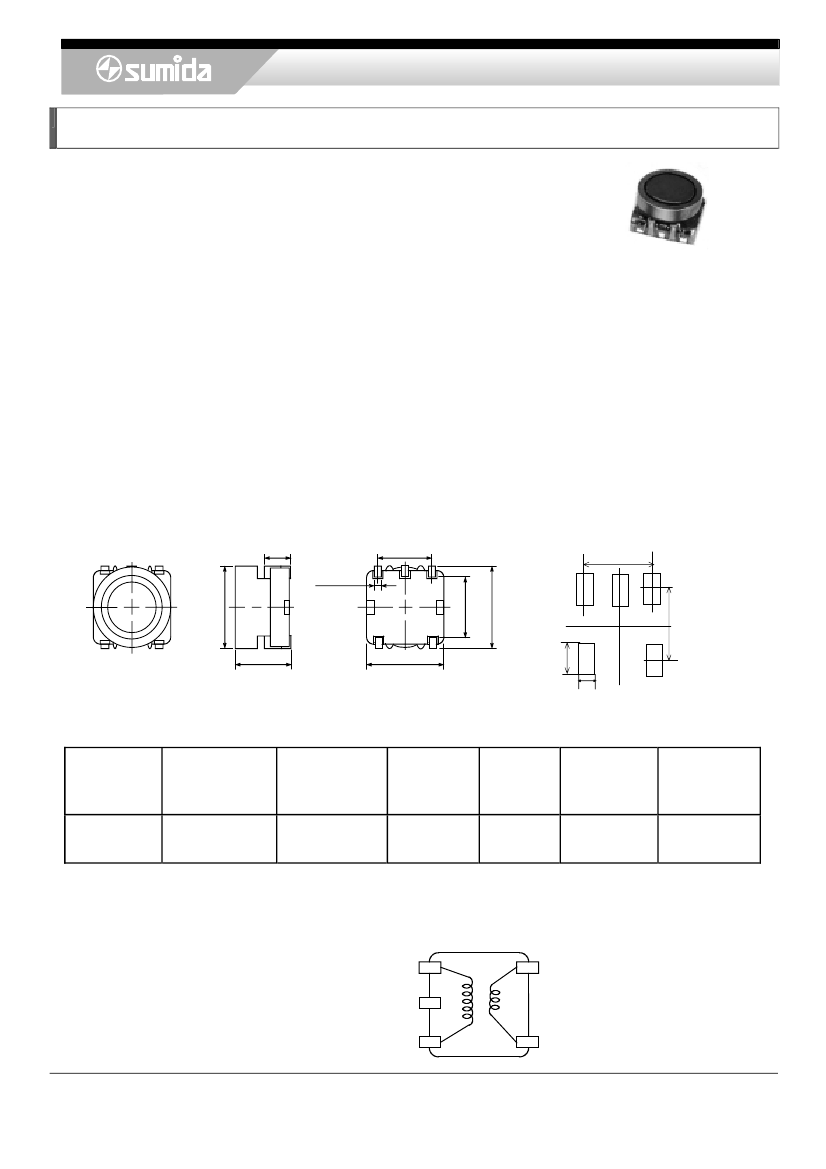

General Power Transformer <SMD Type: CM Series>
Type: CM-5LN
◆
Product Description
・5.7×5.5mm
Max.(L×W), 3.5mm Max. Height.
・Inductance
Range: 10μH½1.0mH
・Rated
current range: 55mA½545mA.
・5
Terminal pins’ type gives a flexible design as inductors or transformers.
・Custom
design is available.
◆
Feature
・Magnetically
shielded construction.
・Ideally
used in DSC/DVC, PDA, DVD, Game Machine, Power supply module etc as DC-DC
Converter inductors or transformers.
・RoHS
Compliance
◆
Dimensions (mm)
1.6
φ5.0±0.3
◆
Land Pattern (mm)
3.5±0.2
0.5±0.1
3.5±0.5
＋0.5
5.2－0.2
3.5
4.4
2.0
3.5 MAX.
5.2±0.3
1
.0
◆
Specification (for transformers)
Sample No.
Inductance (6-4) Inductance (3-1)
1kHz/1V
1kHz/1V
+40 ％
D.C.R
(6-4)
663mΩ Max.
D.C.R
(3-1)
7.0Ω Max.
Rated Current Rated Current
(6-4)
(3-1)
350mA
102mA
6315-T035
10.5µH
-20 ％
190µH
(Ref.)
※
Rated current: The D.C. current at which the inductance decreases to 90% of it’s initial value or
When
△t=40℃,
whichever is lower(Ta=20℃).
※
Schematics (Bottom)
“ S” is winding start.
S 3
4
2
1
6 S
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
General Power Transformer <SMD Type: CM Series>
Type: CM-5LN
◆
Specification (for inductors)
Part Name
※
CM5LNNP-100□
CM5LNNP-120□
CM5LNNP-150□
CM5LNNP-180□
CM5LNNP-220□
CM5LNNP-270□
CM5LNNP-330□
CM5LNNP-390□
CM5LNNP-470□
CM5LNNP-560□
CM5LNNP-680□
CM5LNNP-820□
CM5LNNP-101□
CM5LNNP-121□
CM5LNNP-151□
CM5LNNP-181□
CM5LNNP-221□
CM5LNNP-271□
CM5LNNP-331□
CM5LNNP-391□
CM5LNNP-471□
CM5LNNP-561□
CM5LNNP-681□
CM5LNNP-821□
CM5LNNP-102□
Inductance
［Within½※1
10μH
12μH
15μH
18μH
22μH
27μH
33μH
39μH
47μH
56μH
68μH
82μH
100μH
120μH
150μH
180μH
220μH
270μH
330μH
390μH
470μH
560μH
680μH
820μH
1.0 mH
D.C.R.(Ω)
[Max.](at 20℃)
0.24
0.27
0.28
0.32
0.40
0.50
0.55
0.70
0.75
0.85
1.05
1.35
1.90
2.15
3.00
3.35
4.60
5.40
5.95
8.20
9.55
10.65
12.55
12.80
15.05
Rate Current
(mA)※2
545
470
455
395
370
345
315
280
265
235
200
180
165
150
140
125
120
110
90
85
80
75
70
60
55
S
3
Measuring
Frequency
2.52 MHz
1 kHz
※
Description of part name
CM5LNNP-100□
B Box
C Carrier Tape
※
Schematics (Bottom)
“ S” is winding start.
4
2
1
6
※1:
Tolerance of inductance +40%,-20%.
※2:
Rated current: The D.C. current at which the inductance decreases to 90% of it’s initial value or when
△t=40℃,
whichever is lower(Ta=20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
