CM5NNP-270C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> CM5NNP-270C

CM5NNP-270C: DescriptionPower Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size33KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CM5NNP-270C Overview

Power Transformer, ROHS COMPLIANT

CM5NNP-270C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Center click function 1	NO
Center click function 2	NO
diameter	5.2 mm
high	4.7 mm
Manufacturer's serial number	CM
Installation features	SURFACE MOUNT
method of packing	TAPE & REEL
physical size	5.2mm x 4.7mm
surface mount	YES
Transformer type	POWER TRANSFORMER

Preview

Download Datasheet

View All

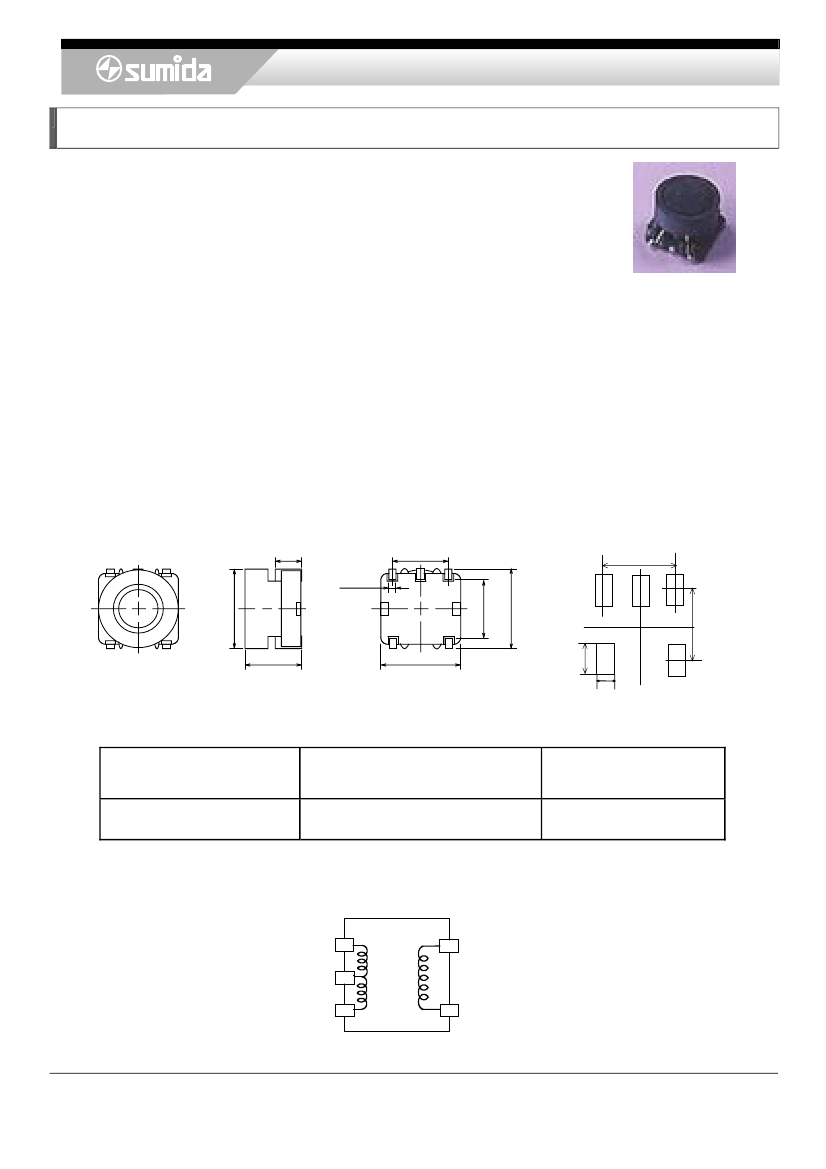

General Power Transformer <SMD Type: CM Series>

Type: CM-5N

◆

Product Description

・5.5×5.7mm

Max.(L×W), 4.7mm Max. Height.

・Inductance

range: 10μH∼5.6mH

・Rated

current range: 21mA∼490mA

・5

Terminal pins’ type gives a flexible design as inductors or transformers.

・Custom

design is available.

◆

Feature

・Magnetically

shielded construction.

・Ideally

used in Notebook PC, LCD TV,DVD, Game machine, STB , Projector, Power supply

module etc as DC-DC Converter inductors or transformers.

・RoHS

Compliance

◆

Dimensions (mm)

1.6

φ5.0±0.3

◆

Land Pattern (mm)

3.5±0.2

3.5±0.5

＋0.5

5.2−0.2

3.5

0.5±0.1

4.4

2.0

4.7 MAX.

5.2±0.3

◆

Specification (for transformers)

Sample No.

6300-T045

Inductance (6-4)

100KHz/0.1V

+40％

387µH

-20％

Ｄ.C.R

(6-4)

@ 20℃

6.2Ω

Max.

※

Schematics (Bottom)

“ S” is winding start.

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2
