TN120F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TN120F

TN120F: DescriptionRF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size185KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

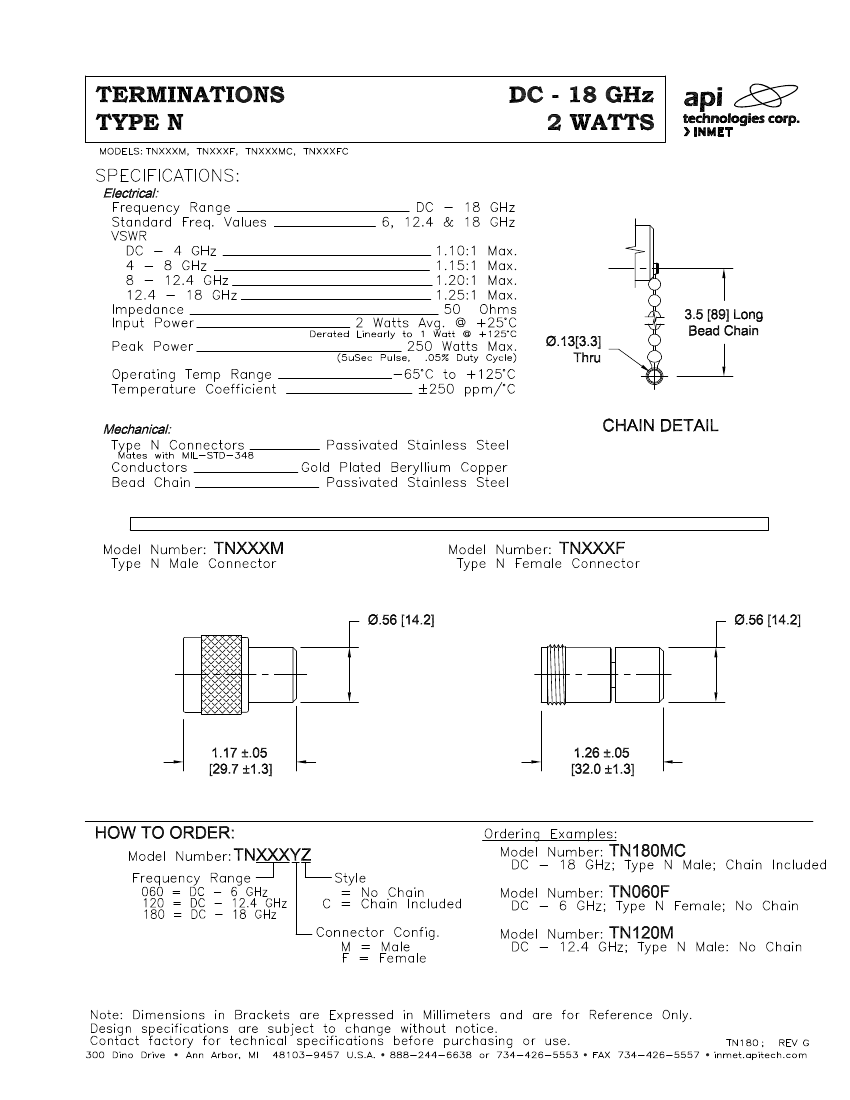

TN120F Overview

RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

TN120F Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	N-F, I/P POWER-MAX(PEAK)=250W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.2

TN120F Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TN120F Related Products

	TN120F	TN060FC	TN060MC	TN060M	TN120FC	TN120M	TN120MC	TN060F
Description	RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE
Maker	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	N-F, I/P POWER-MAX(PEAK)=250W	N-F	N-M	N-M	N-F, I/P POWER-MAX(PEAK)=250W	N-M, I/P POWER-MAX(PEAK)=250W	N-M, I/P POWER-MAX(PEAK)=250W	N-F
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Maximum operating frequency	12400 MHz	6000 MHz	6000 MHz	6000 MHz	12400 MHz	12400 MHz	12400 MHz	6000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION
Terminal surface	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Maximum voltage standing wave ratio	1.2	1.15	1.15	1.15	1.2	1.2	1.2	1.15
