LB-403-YD: Description7 SEG NUMERIC DISPLAY, YELLOW, 10.16 mm; CategoryLED optoelectronic/LED photoelectric; File Size52KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric View All

LB-403-YD Overview

7 SEG NUMERIC DISPLAY, YELLOW, 10.16 mm

LB-403-YD Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Reach Compliance Code	unknown
color	YELLOW
Configuration	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT
Display height	10.16 mm
Maximum forward current	0.02 A
Number of functions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

LB-403-YD Preview

LED displays

High efficiency, three-digit numeric

displays

LB-403 DN Series

The LB-403 DN series were designed

to meet the need for multi-digit numeric

displays. These LED numeric displays

use GaAsP on GaP for the emitting ma-

terial (with the exception of green) and

are housed in an epoxy resin package.

They are three-digit displays with a

character height of 10.16 mm.

FFeatures

1) Height of character : 10.16 mm.

2) Long 9 mm leads (minimum) on bot-

tom of case.

3) High efficiency reflectors are used

to achieve a bright, clear display.

4) The package surface is painted

black and the segments are colored

the display color.

FSelection

guide

FExternal

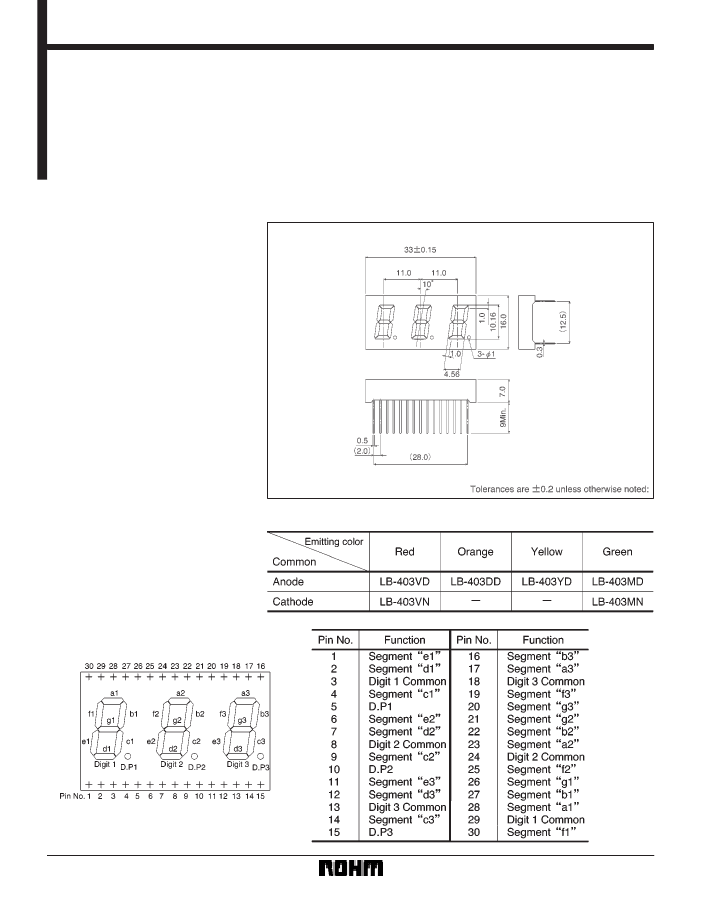

dimensions (Units: mm)

FPin

assignments

214

LED displays

FInternal

circuit schematic (example of common anode)

LB-403 DN Series

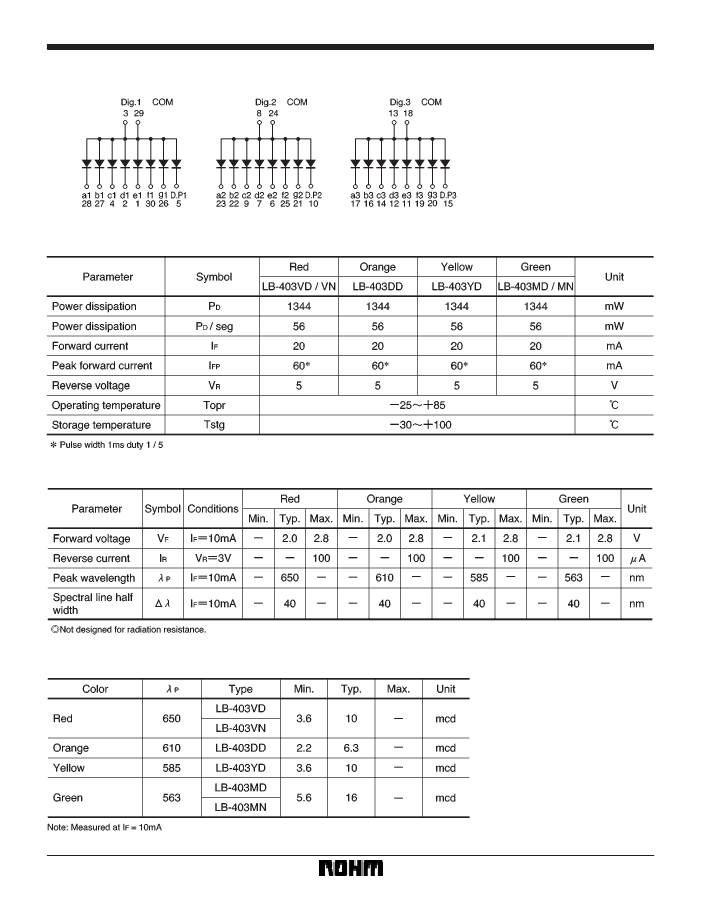

FAbsolute

maximum ratings (Ta = 25_C)

FElectrical

and optical characteristics (Ta = 25_C)

FLuminous

intensity

215

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
