CDRH50D18RLDNP-150MC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH50D18RLDNP-150MC

CDRH50D18RLDNP-150MC: Description1 ELEMENT, 15 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size139KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH50D18RLDNP-150MC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDRH50D18RLDNP-150MC	-	-	View	Buy Now

CDRH50D18RLDNP-150MC Overview

1 ELEMENT, 15 uH, GENERAL PURPOSE INDUCTOR, SMD

CDRH50D18RLDNP-150MC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2020
Reach Compliance Code	unknow
ECCN code	EAR99
Factory Lead Time	11 weeks
uppercase and lowercase codes	2020
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.012 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	1.8 mm
Package length	5 mm
Package form	SMT
Package width	5 mm
method of packing	Tape
Maximum rated current	1.4 A
series	CDRH50D18R/LD
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 20% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

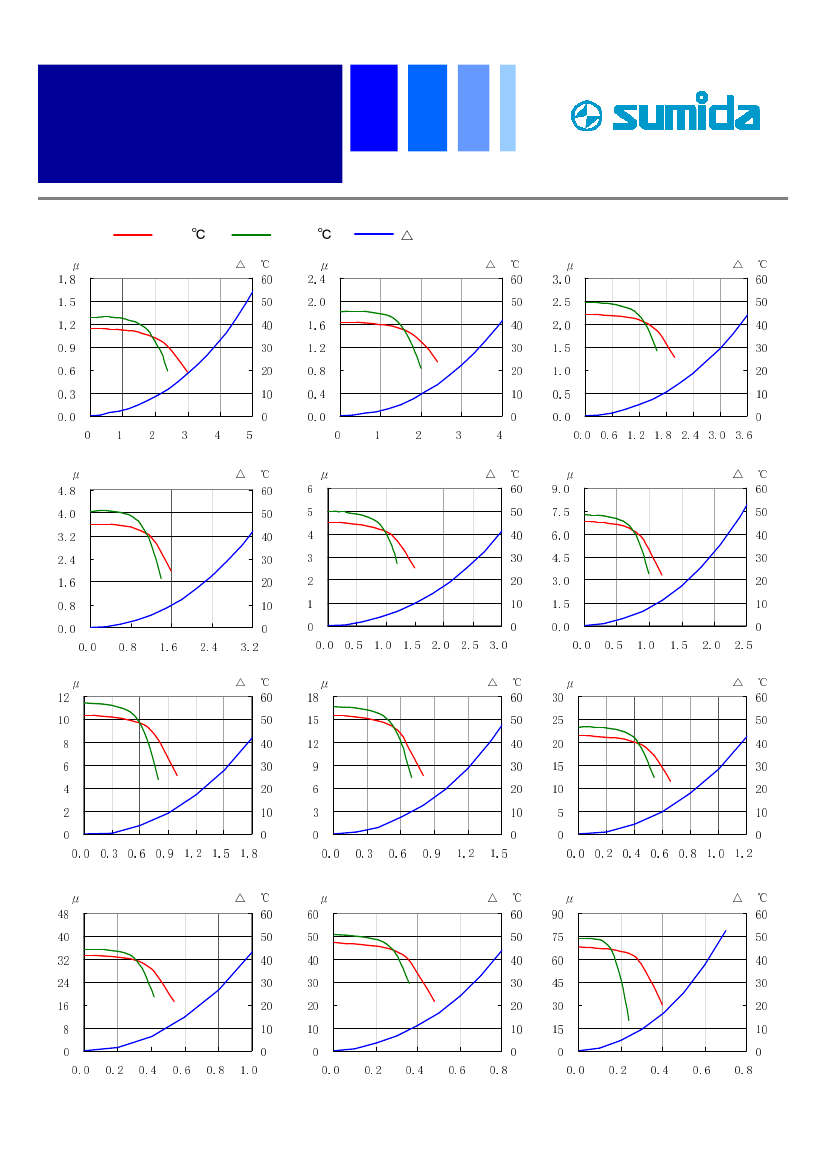

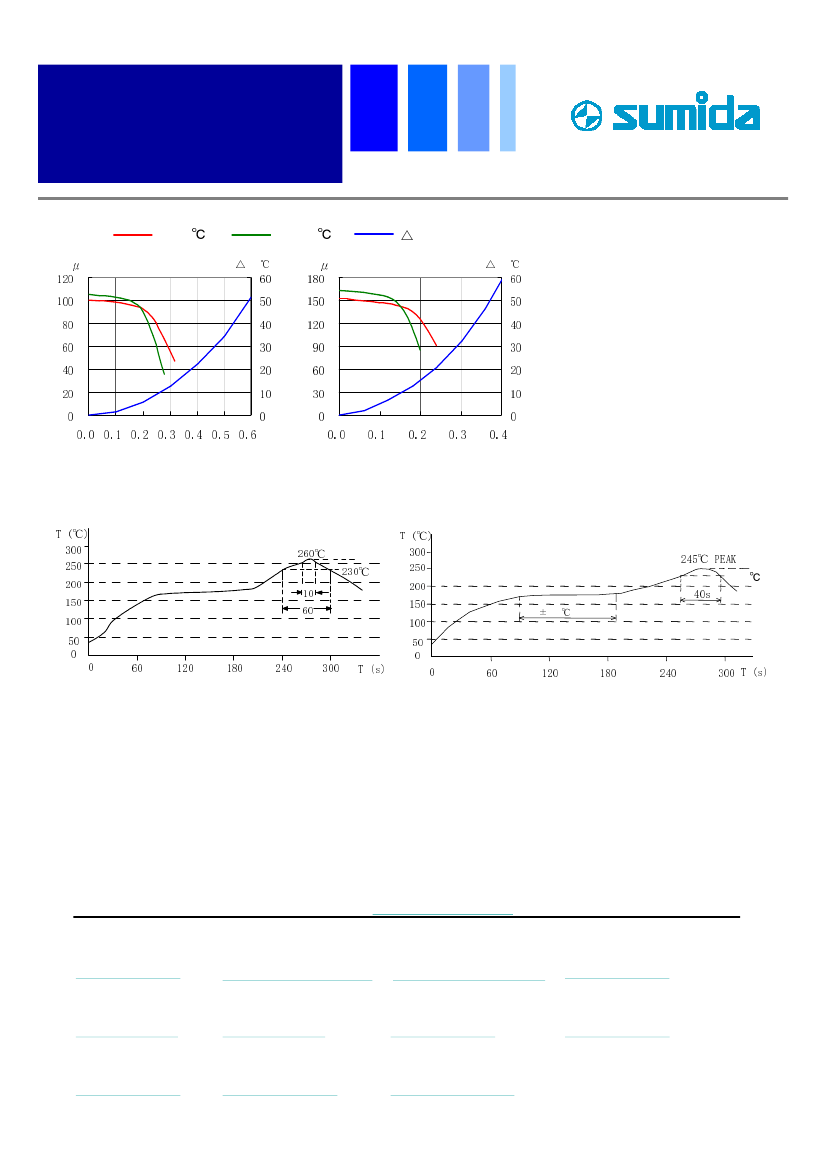

Preview

Download Datasheet

View All

SMD Power Inductor

CDRH50D18R/LD

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L W H: 5.2 5.2 2.0mm Max.

• Product weight: 0.16g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -40 ~+125

(including coil’s self temperature rise)

+125

• Storage temperature range: -40

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging.

• 13.0”diameter reel

• 3000pcs per reel

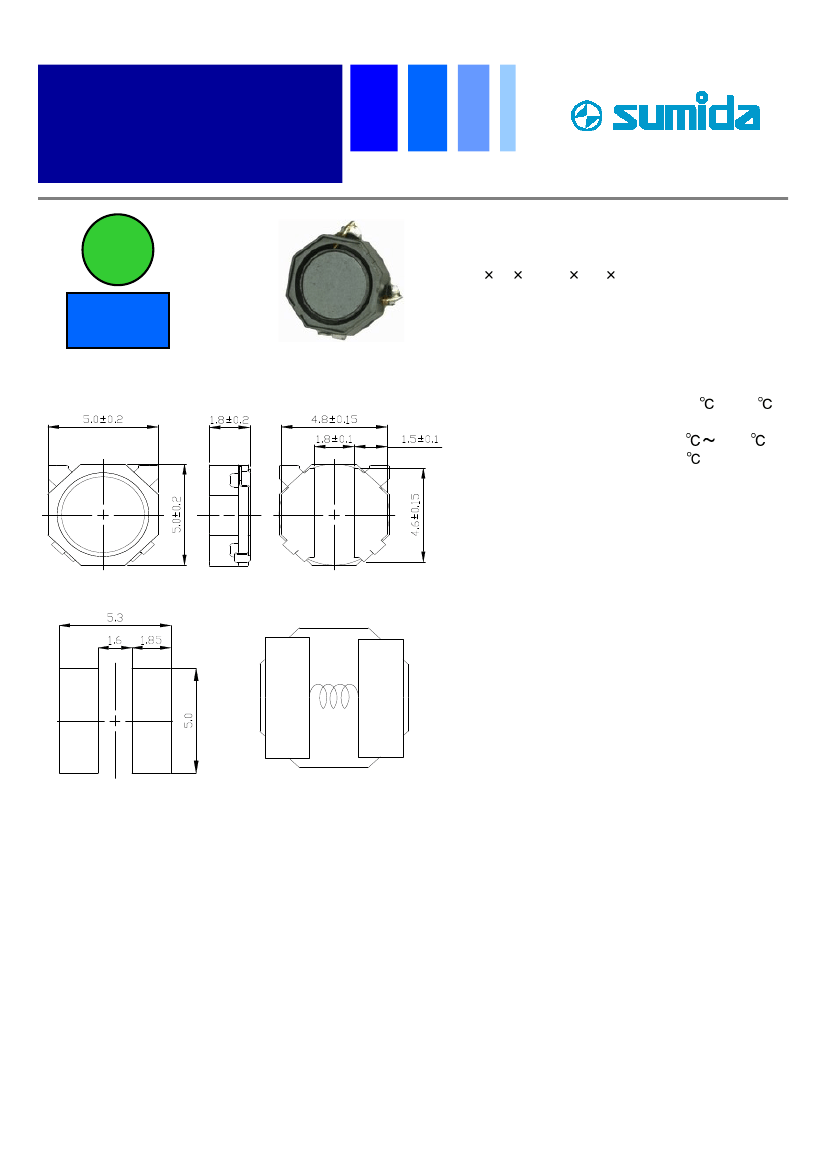

Land pattern and Schematics - [mm]

RoHS

Halogen

Free

Dimension - [mm]

Applications

• Ideally used in digital single-lens

reflex camera etc.

Page 1 of 4

Revised: 7-Jan-14

℃

½℃

℃

× ×

Recommended Resources

90MHz transistor resonant power amplifier circuit

Cicada chirping simulator circuit

Automatic light control lighting circuit one b

Loop timing circuit composed of op amp

555 bean sprout automatic watering controller circuit

Simple high and low frequency signal generator circuit

Ask a weak question: I'd like to ask how to read the parameters of a field effect tube. The formula in the book is I=K(Vgs-Vt) squared, but there is no quantity K in the parameter table, only voltage, current, and power?...; ppanxiaoyu Analog electronics

mini2440 eboot: I just bought a development board recently. But the eboot of the BSP uses CS8900, but the board has DM9000, so the main thing now is to change ether.c to the interface of DM9000. . I copied a driver s...; nuanshuiping Embedded System

PCB manufacturing experience summary (2): [i=s]This post was last edited by 18379433374 on 2019-3-7 10:46[/i] [size=5][color=#00bfff][b]This sharing is based on [url=https://bbs.eeworld.com.cn/type-68-79-1.html]PCB Production Experience Summa...; 18379433374 PCB Design

Technology Creation: Does anyone have some creative works that can be shared? Thank you!...; 奔跑1 DIY/Open Source Hardware

Can't enter lpm3 sleep mode in interrupt?: Can't enter lpm3 sleep in interrupt? Instead, it resets? What's the reason?...; ??? Microcontroller MCU

NOR FLASH boot problem: Request the detailed process of NOR FLASH startup...; zhiha258 Embedded System
