AN-682 Terminating F100K ECL Inputs
AN-682
Fairchild Semiconductor
Application Note
July 1992
Revised November 2001
Terminating F100K ECL Inputs
Introduction
Many F100K designs require that certain inputs be pre-
sented with a HIGH or LOW level. Because of the con-
struction of the F100K input circuitry, a LOW can be
realized by simply leaving the input OPEN. However, a
HIGH must be terminated in a special way. Simply tying the
input to V
CC
/V
CCA
is unacceptable.
cuit. The designer should be aware that although Figure
2A, Figure 2B, and Figure 2C supply ECL compatible sig-
nals levels, they differ in power consumption and suscepti-
bility to changes in temperature and V
EE
.
For designs where there are multiple unused inputs and
extra logic gates available, fanout from the unused gates is
possible. As an example, one gate of the 100302 is capa-
ble of driving ten quiescent inputs at voltage and current
levels typical of F100K as shown in Figure 3.

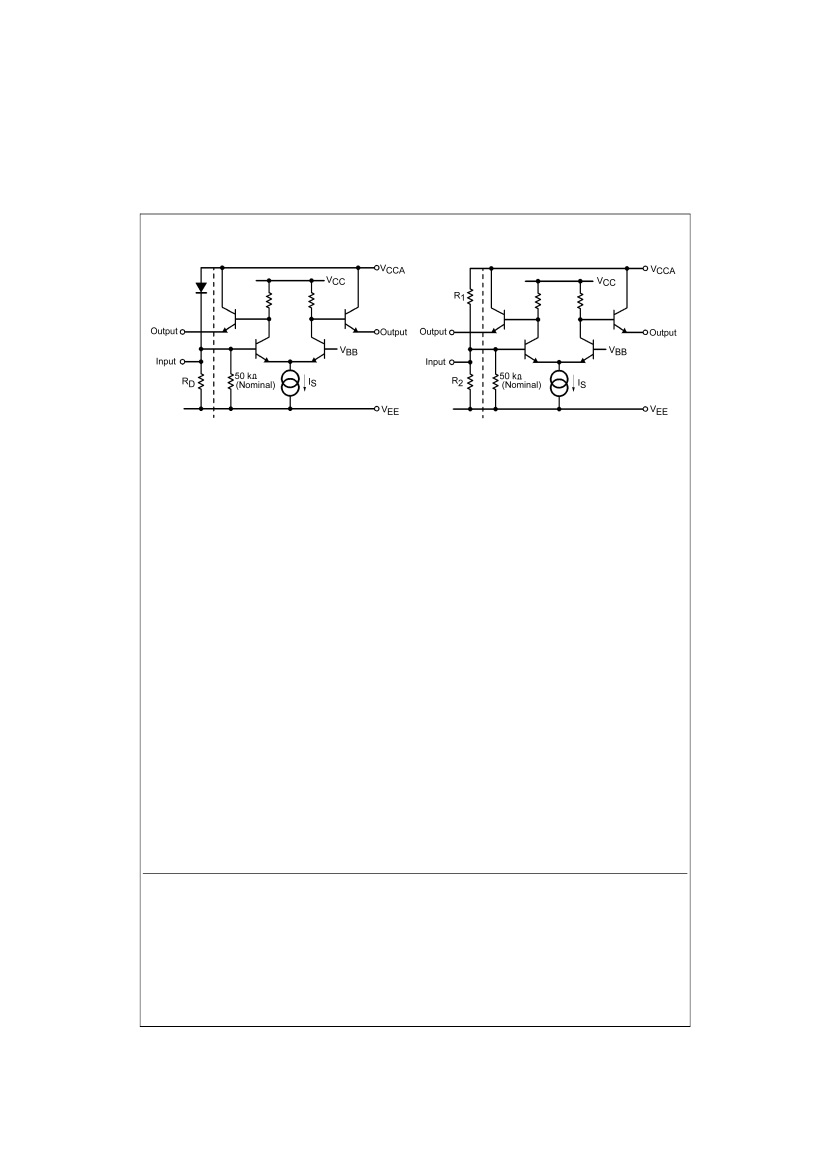

Figure 4 shows in detail the F100K pull-up scheme and the
input circuitry. Although the circuits of Figure 2 are good
examples, a detailed circuit analysis must include the
50 k
Ω
input resistor. In Figure 4A, the resistor (R
D
) which
sets the diode biasing current is in parallel with the 50 k
Ω
input resistor. Similarly, the circuit of Figure 4B shows that
R
2
is in parallel with the input resistor.
The point to emphasize is never tie an F100K input to V
CC
/
V
CCA
in order to realize a HIGH preset. Instead, the follow-
ing is recommended:
• For a LOW level — leave input open or tie to V
EE
.
• For a HIGH level — tie input to a diode drop or 0.9V
below V
CC
/V
CCA
.
Remember also that the 50 k
Ω
input resistor must be con-
sidered in the circuit parameter calculations.
Design Considerations
The ranges of V
IH
and V
IL
across V
EE
(
−
4.2V to
−
5.7V for
F100K ECL 300 Series) are
−
870 mV to
−
1165 mV and
−
1475 mV to
−
1830 mV respectively. By staying within
these ranges, proper input conditions are assured. Figure 1
shows the voltage versus current for the F100K input tran-
sistor. If the input is tied to V
CC
/V
CCA
the input transistor
saturates (Point D) which can damage internal circuitry.
The best V
IH
to realize a HIGH is a voltage drop of 0.9V
below V
CC
/V
CCA
. As can be seen from the graph, this
locates the quiescent point on the flat part of the curve
(Point C) midway within the acceptable range of V
IH
. Fig-

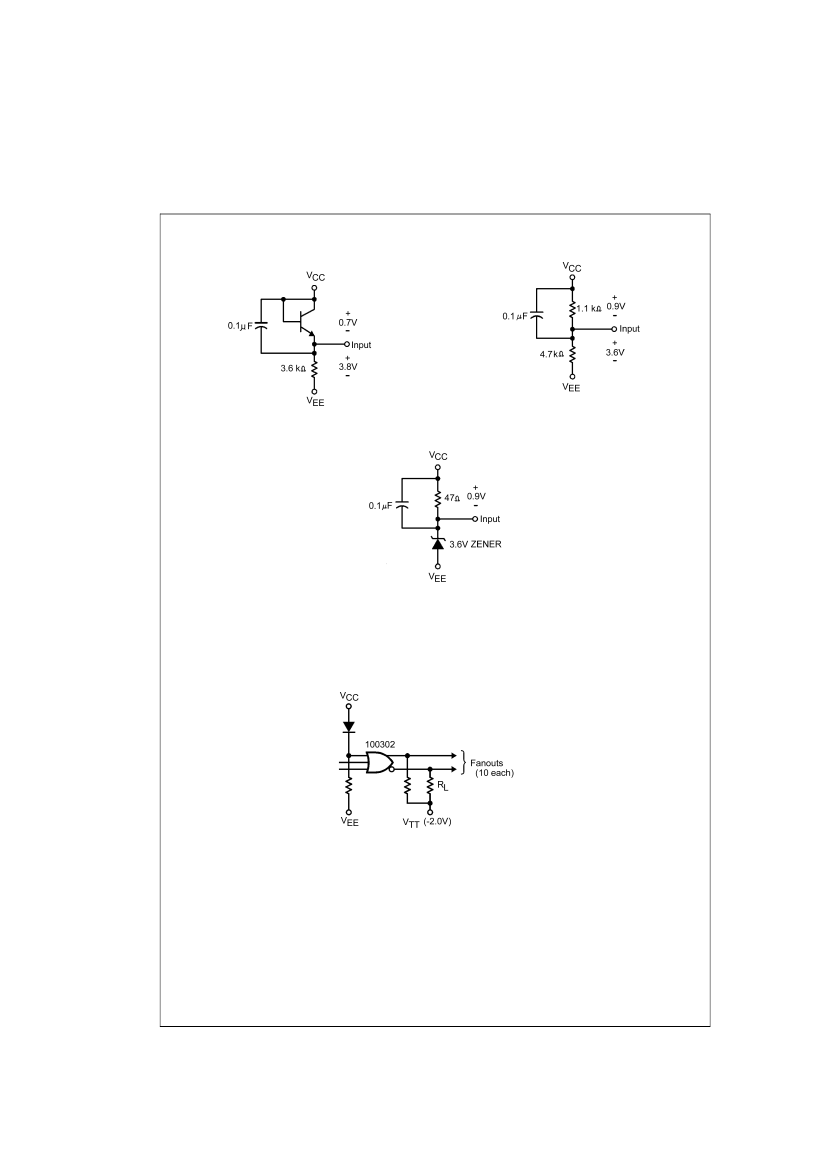

ure 2 shows three ways in which a HIGH can be realized
on the input. These circuits allow the user to maintain con-
stant input signals at optimum levels of V
EE
and tempera-
ture. Each circuit can handle multiple fanouts, the number
will depend upon the maximum current capability of the cir-
A
=
50 KΩ Pull-Down Current
B
=
Transition (Switching) Region
C
=
Base Current plus 50 kΩ
D
=
Input Transistor Saturation
FIGURE 1. Input Characteristics
© 2001 Fairchild Semiconductor Corporation
AN010644
www.fairchildsemi.com
AN-682 Terminating F100K ECL Inputs
Design Considerations
(Continued)
A
FIGURE 4. Pull-Up Circuit Examples
B
