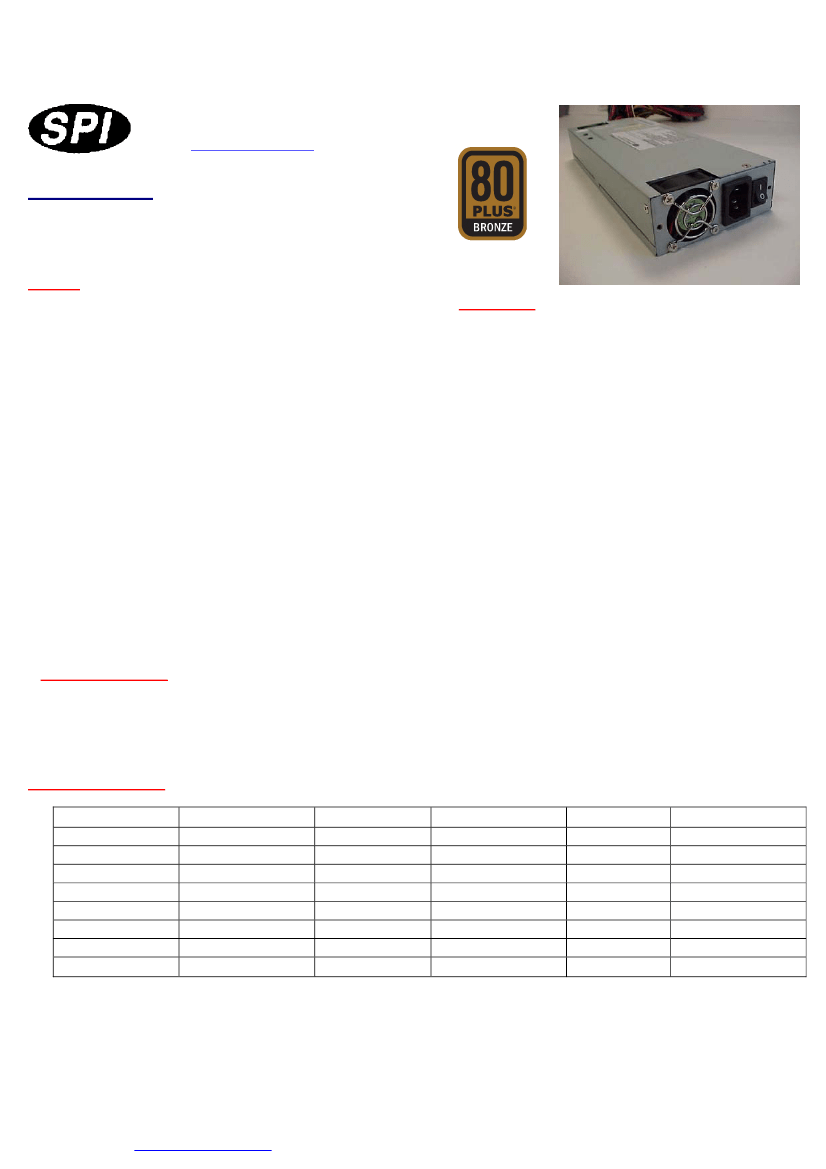

Sparkle Power Inc.
A Leading Power Supply Manufacturer
Web site:
www.sparklepower.com
SPI700U4BB
(80PLUS, RoHS Compliant)
700 Watts ATX12V/EPS12V, 1U
Switching Power Supply
Features
•
•
•
•
Complied with ATX12V / EPS12V standard
Active Power Factor Correction (PFC) meet EN61000-3-2
High efficiency and reliability
Compatible with European Union Directive 2002/95/EC (Restriction on
Hazardous Substances).
Specification
•
Temperature Range:
Operating: 0°C ~ +50°C on full load;
storage & shipping: -20°C ~ +80°C
•
•
Humidity:
85% on operating, 95% on storage
Dielectric Withstand:
Primary frame ground 1800V AC for
1 second
•
•
•
•
•
•
•
Remote ON/OFF function
Internal 12V DC fan included
Low noise and ripple
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down
Complies with FCC part 15 subpart J class B 115Vac operation, and
CISPR 22 class B at 230Vac operation
Approved by :
UL/CUL60950-1 2
nd
TUV EN60950-1 2
nd
, CB 60950-1 2
nd
,
FCC, EMC
•
•
•
•
•
•
Efficiency:
Typical up to 85%
Rise time:
Less than 20ms
Hold-up Time:
16 ms minimum at nominal input voltage
Power Good Signal:
Power on delay time 100 ~ 500ms, off
delay 1ms minimum (TTL and CMOS compatible)
Leakage Current:
Less than 3.5mA at 264Vac, 63Hz
MTBF:
100,000 hours on maximum load at +25°C
Dimensions (LxWxH):
250x100x40.5mm /9.85x3.9x 1.6
•
inch
Input Characteristics
Input Range:
90 ~ 264Vac, Full Range Input
Frequency:
47 ~ 63Hz
Input Current:
Max 10A @ 115Vac, 5.0A @ 230Vac
Inrush Current:
No Damage
Output Characteristics
Output Voltage
+3.3V
+5V
+12V1
+12V2
+12V3
+12V4
-12V
+5Vsb
Minimum Load
0.5A
0.5A
0.5A
0.5A
0.5A
0.5A
0.05A
0.1A
Normal Load
12A
15A
7.5A
7.5A
7.5A
7.5A
0.25A
2.0A
Maximum Load
24A
30A
16A
16A
16A
16A
0.5A
4.0A
Load Reg.
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 10%
± 5%
Ripple & Noise
50mV P-P
50mV P-P
120mV P-P
120mV P-P
120mV P-P
120mV P-P
120mV P-P
50mV P-P
*+3.3V and +5V total output not exceed 180W
* Total output for this subject power supply is 700W
Sparkle Power Inc.
Main Office
1000 Rock Avenue
San Jose, CA 95131
TEL: 408-519-8888
FAX: 408-519-9999
E-MAIL:
info@sparklepower.com
Sparkle Power Inc.
Los Angeles Office
17071 Green Drive
City of Industry, CA 91745
TEL: 626-839-7180
FAX: 626-839-3395
