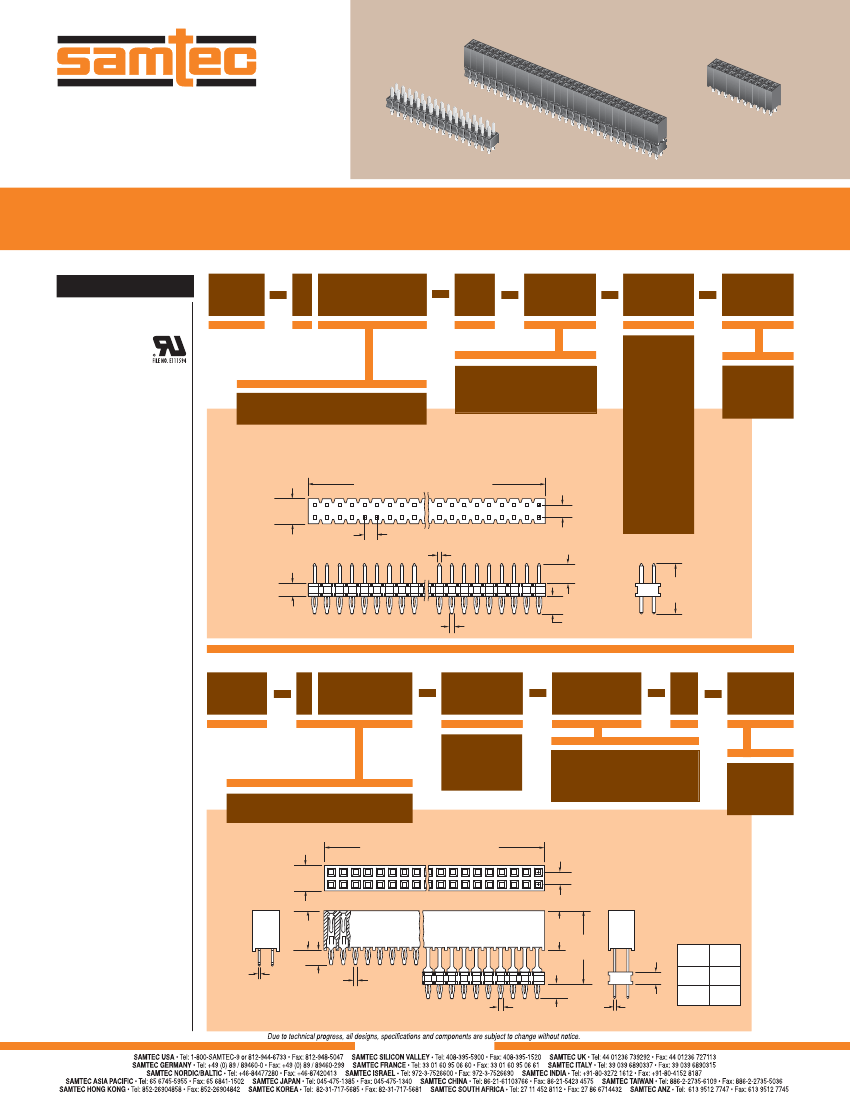

F-209-1
PTF–130–03–S–D
PTF–110–01–S–D
PTT–116–01–S–D
2mm PRESS FIT
PTT, PTF SERIES
SPECIFICATIONS
For complete specifications
see www.samtec.com?PTT
or www.samtec.com?PTF
Insulator Material:
Black Liquid Crystal
Polymer
Contact Material:
Phosphor Bronze
Plating:
Au or Sn over
50µ" (1,27µm) Ni
Current Rating:
2A @ 80°C ambient
Operating Temp Range:
-55°C to +125°C
Insertion Depth:
(2,67mm) .105" to
(3,56mm) .140"
Insertion Force:
(Single contact only)
4oz (1,11N) average
Normal Force:
60 grams (0,59N) average
Withdrawal Force:
(Single contact only)
3oz (0,83N) average
Max Cycles:
100 with 30µ" (0,76µm) Au
RoHS Compliant:
Yes
PTT
1
NO. PINS
PER ROW
01
PLATING
OPTION
ROW
OPTION
OPTION
Mates with:
PTF, ESQT, PTHF,
SQW, SQT
–D
= Double Row
–S
= 30µ" (0,76µm) Gold contact,
Matte Tin on tail
–T
= Triple Row
–“XXX”
= Polarized
Position
02 thru 50
–Q
= Four Row
No. of positions x (2,00) .0787
02
(2,00)
.0787
–5
= Five Row
(4,00)
.158
01
–6
= Six Row
(2,00) .079
(0,50) .020 SQ
(3,20) .126
(8,03)
.316
(0,91) .036
(2,86) .113
(2,00)
.079
Processing:
Max Processing Temp:
230°C for 60 seconds, or
260°C for 20 seconds 3x
Lead–Free Solderable:
Yes
PTF
1
NO. PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
D
OPTION
Mates with:
PTT, TMMH, TMM, MTMM,
MMT, TW, LTMM, ZLTMM
Specify
LEAD STYLE
from chart
–S
= 30µ" (0,76µm) Gold contact,
Matte Tin on tail
–“XXX”
= Polarized
Position
02 thru 50
No. of positions x (2,00) .0787
+ (0,30) .012
(4,00)
.158
01
02
(2,00) .0787
A
(-01)
Note:
Other Gold plating
options available.
Contact Samtec.
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
(6,35)
.250
(2,29)
.090
A
(-03)
(2,00)
.079
(0,30)
.012
LEAD
STYLE
A
(6,35)
.250
(9,14)
.360
(2,29)
.090
(0,50)
.020
Style –01
– 01
–03
(0,84) .033
Style –03
(0,30) .01
WWW.SAMTEC.COM
