ISDF-38-D-R

Description
Board Connector, 76 Contact(s), 2 Row(s), Female, Crimp Terminal
CategoryThe connector    The connector
File Size245KB,3 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

ISDF-38-D-R Overview

Board Connector, 76 Contact(s), 2 Row(s), Female, Crimp Terminal

ISDF-38-D-R Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSAMTEC
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberISDF
Mixed contactsNO
Installation typeCABLE
Number of rows loaded2
OptionsGENERAL PURPOSE
Termination typeCRIMP
Total number of contacts76
REVISION K
R.001
((No OF POS x .050) + .015)
C1
.002
.005
ISDF-10-D-X SHOWN
(No OF POS x .050) - .050
(TOL NON-ACCUM)
.025 (TYP)
.020 (TYP)
FIG. 1
SEE NOTE 2
ISDF-XX-D-X
No OF POSITIONS
-02 THRU -50
K
(PER ROW)
NOTCH SPECIFICATION
LEAVE BLANK: NO NOTCH
-C: CHAMFER (SEE SHEET 2,
FIG 2) (7 POSITION ONLY)
-L: FRICTION LOCK
(SEE SHEET 2, FIG 3)
(AVAILABLE ON POS 10 - 30)
-R: RETENTION LATCH (AVAILABLE
ON POS -05 THRU -30)
(SEE SHEET 3, FIG 4)
(SEE NOTE 11)
ROW SPECIFICATION
-D: DOUBLE ROW
"A"
DO NOT
SCALE FROM
THIS PRINT
.250
C
L
.180
.1200
C
L
.1450
A
"A"
.0800±.0020
.050
.003
C5
SEE NOTE 3
.033
.030
SEE NOTE 4
.030
'C'
"B"
C
L
.0500
.050
C4
.058
.415
.440
.4260
.003
C2
C3
.103 .077
R.005 TYP
.0420
.0260
"B"
SECTION "A"-"A"
R.001
.0525
SEE NOTE 8
C6
'E'
C8
SEE NOTE 7
'D'
"F"
02 04 06 08 10 12 14 16 18 20
.0150 REF
.0430
.2180
C7
.0410
SECTION "B"-"B"
C
L
.070
01 03 05 07 09 11 13 15 17 19
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. SAMTEC LOGOS SHALL APPEAR AT LOCATIONS ON SURFACE SHOWN,
APPROXIMATELY .075 x .055 (BOTH SIDES).
3. ALL MULTIPLE CAVITY MOLDS SHALL IDENTIFY EACH CAVITY WITH A LETTER
DESIGNATION LOCATED WHERE SHOWN.
4. IDENTIFICATION MARKS NOT TO PROTRUDE BEYOND .001 ABOVE THE SURFACE
OF THE INSULATOR MATERIAL.
5. MOLDED SURFACES SHALL BE CONSISTENT AND SMOOTH. SURFACES TO BE
FREE OF SCATCHES, NICKS, SINK AREAS, VOIDS OR OTHER BLEMISHES.
6. PART TO BE SYMMETRIC ABOUT THE CENTERLINE WITHIN +/-.0015, UNLESS
OTHERWISE STATED.
7. GATE PADS MUST BE RECESSED .005.
8. SPECIFIED POSITIONS TO BE IDENTIFIED WHERE SHOWN (NOTE 4 APPLIES).
9. R.005 OPTIONAL.
10. POSITIONS -10 THROUGH -24 WILL HAVE ONLY ONE LATCH LOCK AT DIMENSION SHOWN;
POSITIONS -25 THROUGH -30 WILL HAVE TWO LATCH LOCKS AT DIMENSION SHOWN.
11. OPTION NOT FOR SALE. FOR RETENTION LATCH FEATURE, SEE ISDF-XX-D-M PRINT.
"F"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
SECTION "F"-"F"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .003 [.08]
.XXXX: .0015 [.038]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
VECTRA S475, COLOR: BLACK
MAX REGRIND: 50%
MAX FLASH ALLOWED: .002
MAX GATE VESTIGE: .004
DO NOT SCALE DRAWING
SHEET SCALE: 4:1

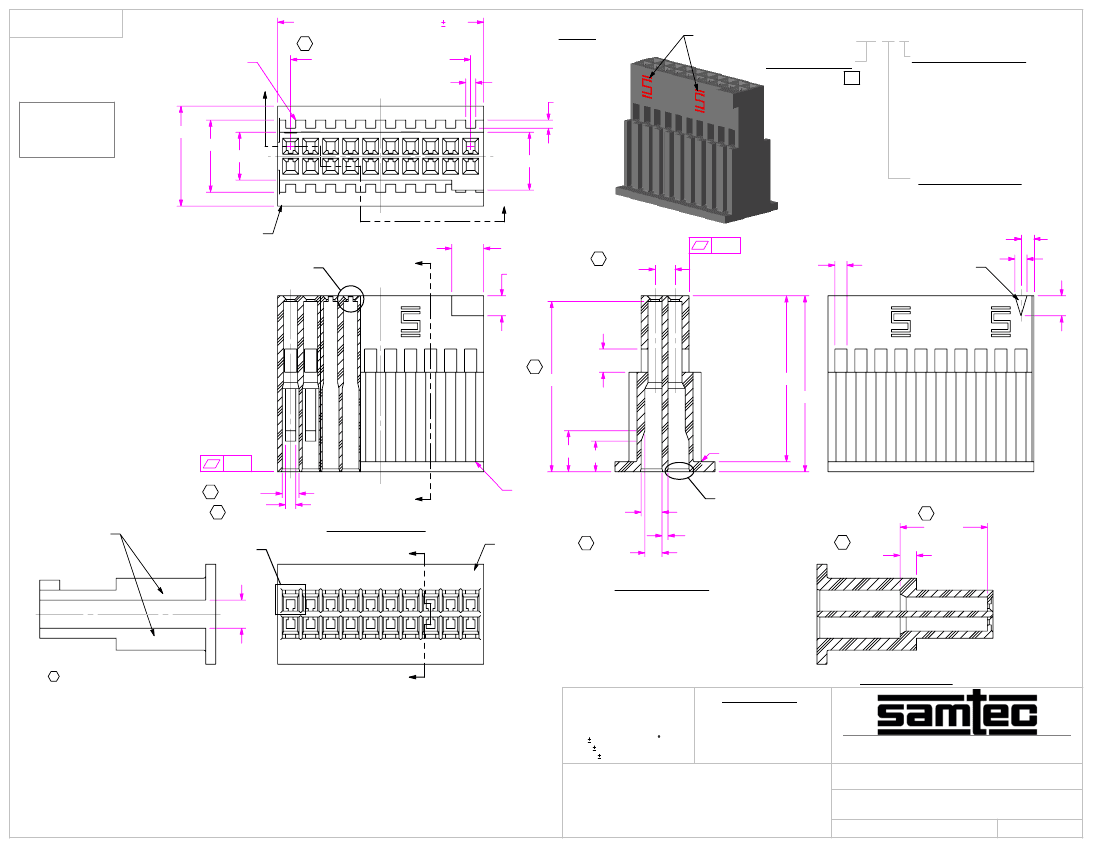

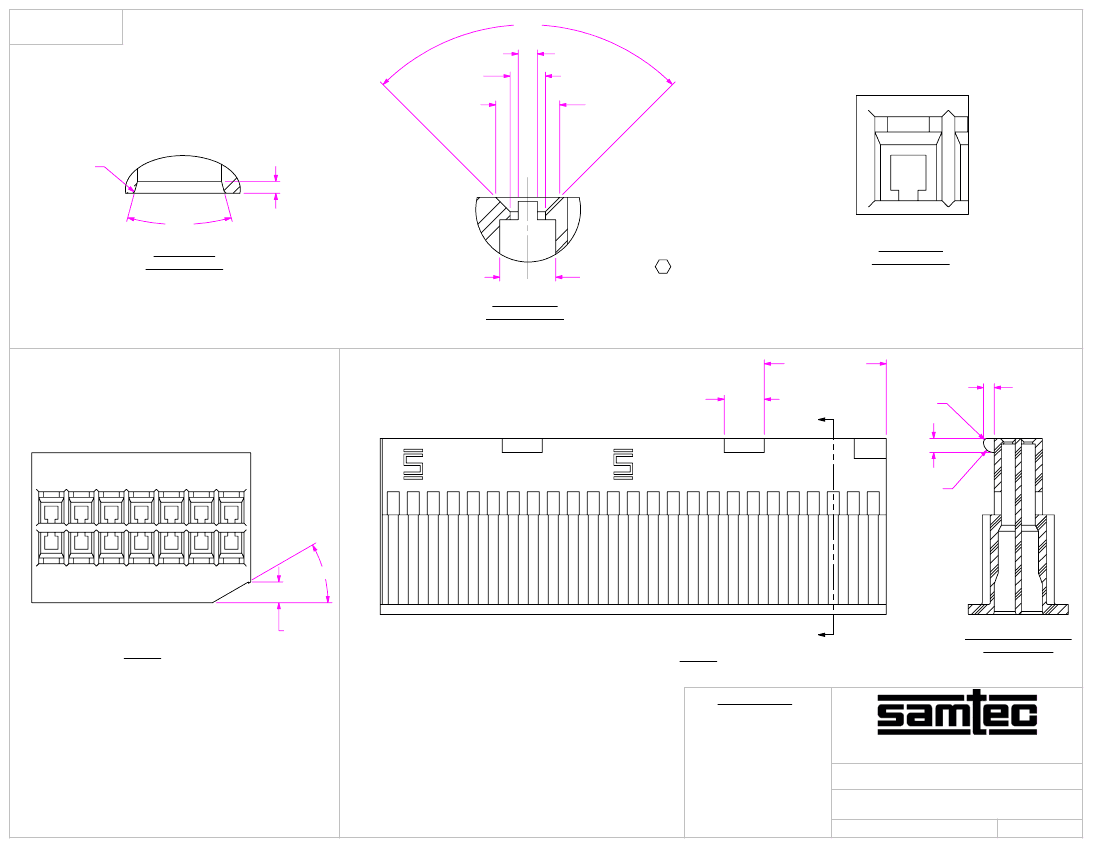

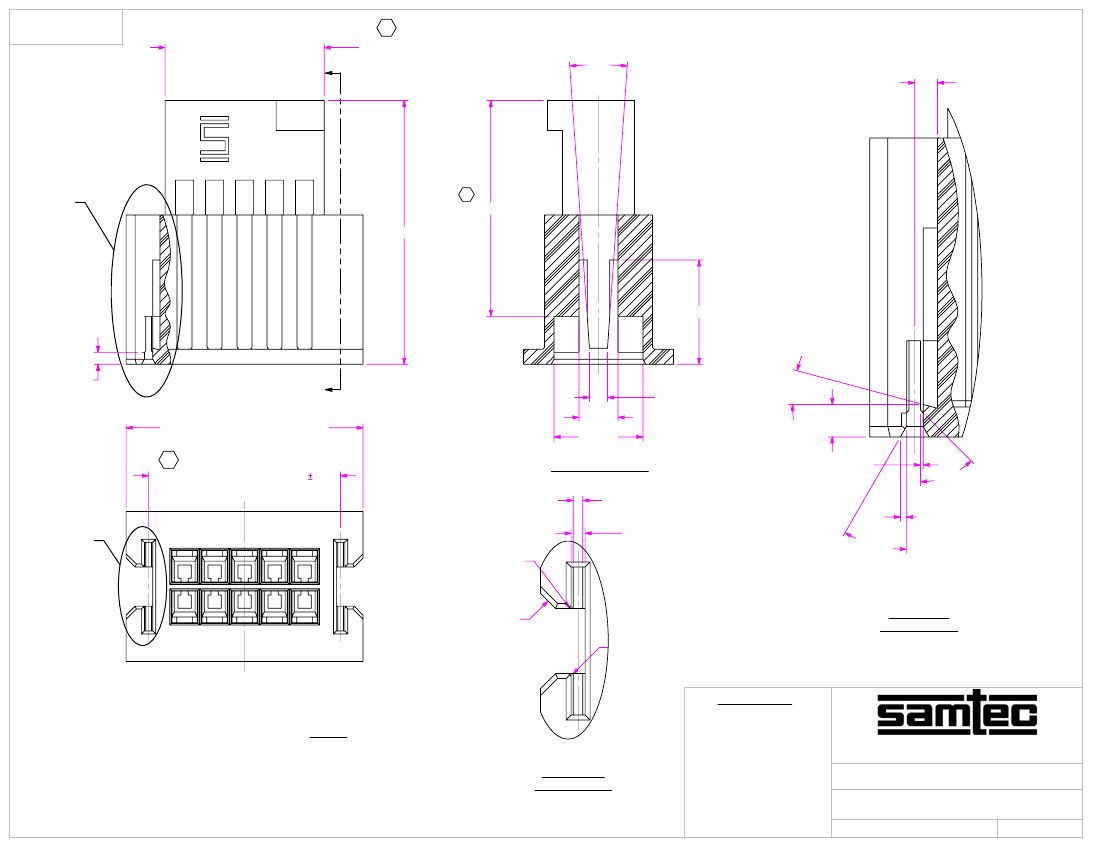

.050" CL CRIMP WIRE SOCKET INSULATOR
ISDF-XX-D-X
SHEET
1
OF
3
F:\DWG\MISC\MKTG\ISDF-XX-D-X-MKT.SLDDRW
BY:
BRATCHER 5/4/2005
