FAN7361, FAN7362 High-Side Gate Driver
November 2009
FAN7361, FAN7362
High-Side Gate Driver
Features
!
Floating Channel Designed for Bootstrap
!
!
!
!
!
!
Description
The FAN7361/FAN7362, a monolithic high-side gate
drive IC, can drive MOSFETs and IGBTs that operate up
to +600V. Fairchild’s high-voltage process and common-
mode noise canceling techniques provide stable opera-
tion of the high-side driver under high dv/dt noise circum-
stances. An advanced level shift circuit offers high-side
gate driver operation up to V
S
=-9.8V(typ.) for V
BS
=15V.
The UVLO circuit prevents malfunction when V
BS
is
lower than the specified threshold voltage. Output drivers
typically source/sink 250mA/500mA, respectively, which
is suitable for fluorescent lamp ballast, PDP scan driver,
motor control, and so on.
Operation to +600V
Typically 250mA/500mA Sourcing/Sinking Current
Driving Capability
Common-Mode dv/dt Noise Canceling Circuit
V
CC
& V
BS
Supply Range from 10V to 20V
UVLO Function for V
BS
Output In-phase with Input Signal
8-SOP
Applications
!
PDP Scan Driver
!
Motor Control
!
SMPS
!
Electronic Ballast
8-SOP
Ordering Information
Part Number
FAN7361M
(1)
FAN7361MX
(1)
Package
Operating
Temperature Range
Eco Status
Packing Method
Tube
FAN7362M
(1)
FAN7362MX
(1)
8-SOP
-40°C ~ 125°C
RoHS
Tape & Reel
Tube
Tape & Reel
Note:
1. These devices passed wave soldering test by JESD22A-111.
For Fairchild’s definition of Eco Status, please visit:
http://www.fairchildsemi.com/company/green/rohs_green.html.
© 2005 Fairchild Semiconductor Corporation
FAN7361, FAN7362 Rev. 1.0.8
www.fairchildsemi.com
FAN7361, FAN7362 High-Side Gate Driver
Typical Application Circuit
15V
R
BOOT
D
BOOT
600V
1 NC
IN1
2
3
IN2
4 GND
IN
V
CC
V
B
8
HO 7
C
BOOT
V
S
6
NC 5
Q2
R1
R2
Q1
R3
R4
Load
FAN7361 Rev.04

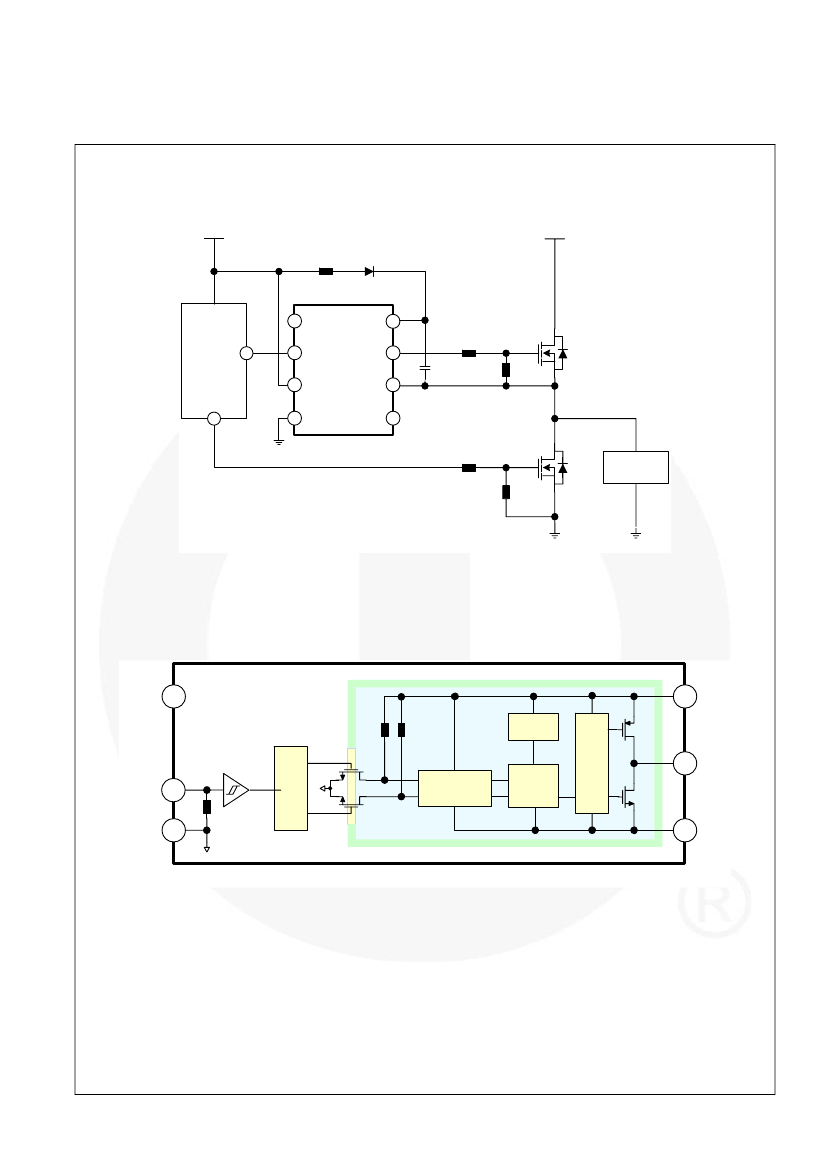

Figure 1. Typical Application Circuit
Internal Block Diagram
V
CC
3
UVLO
DRIVER
8
V
B
IN
GND
2
4
NOISE
CANCELLER
R
S
R
Q
7
HO
Pin 1 and 5 are not connection
FAN7361 Rev.04
PULSE
GENERATOR
6
V
S
Figure 2. Functional Block Diagram
© 2005 Fairchild Semiconductor Corporation
FAN7361, FAN7362 Rev. 1.0.8
2
www.fairchildsemi.com
FAN7361, FAN7362 High-Side Gate Driver
Pin Assignments
NC
IN
V
CC
GND
1
2
3
4
8
V
B
HO
V
S
NC
FAN7361
FAN7362
7
6
5
FAN7361 Rev.04

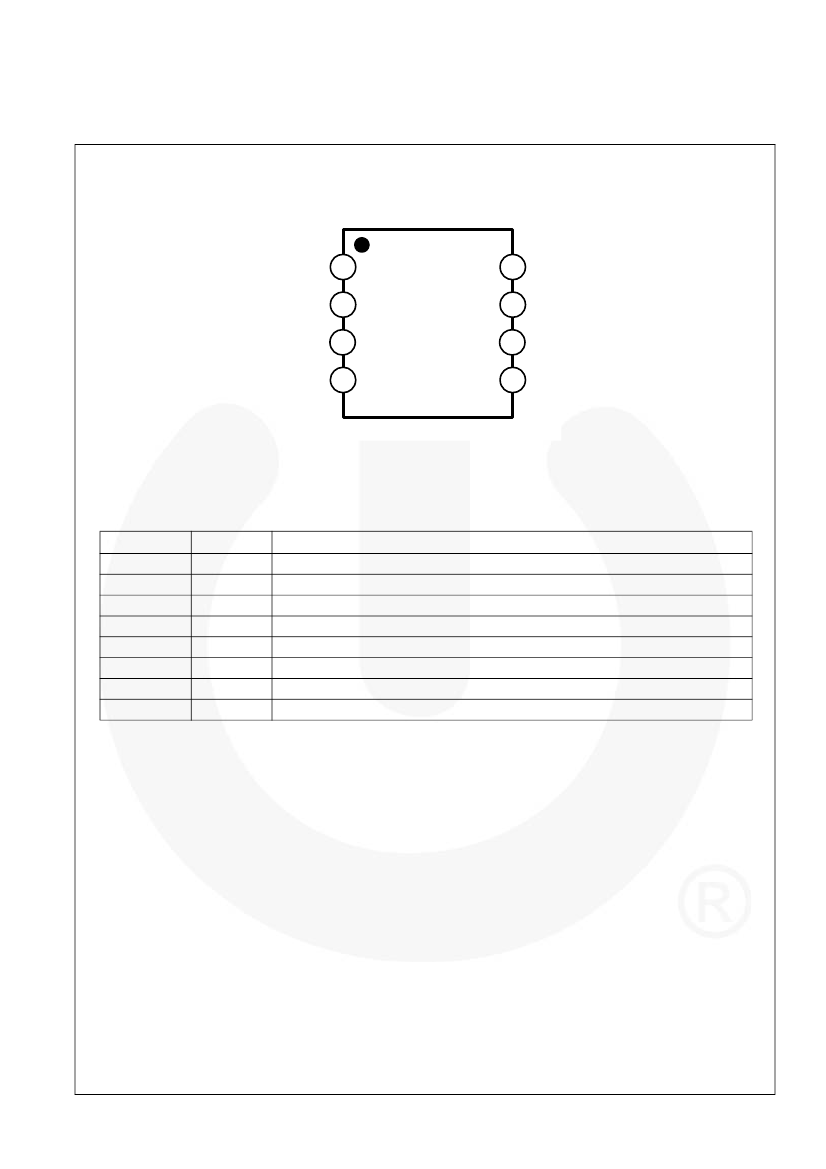

Figure 3. Pin Configuration (Top View)
Pin Definitions
Pin
1
2
3
4
5
6
7
8
Name
NC
IN
V
CC
GND
NC
V
S
HO
V
B
No Connection
Function/ Description
Logic Input for High-Side Gate Driver Output
Supply Voltage
Logic Ground
No Connection
High-Voltage Floating Supply Return
High-Side Driver Output
High-Side Floating Supply
© 2005 Fairchild Semiconductor Corporation
FAN7361, FAN7362 Rev. 1.0.8
3
www.fairchildsemi.com
FAN7361, FAN7362 High-Side Gate Driver
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. T
A
=25°C, unless otherwise specified.
Symbol
V
S
V
B
V
HO
V
CC
V
IN
dV
S
/dt
P
D(2)(3)(4)
θ
JA
T
J
T
S
T
A
Notes:
Characteristics
High-Side Offset Voltage
High-Side Floating Supply Voltage
High-Side Floating Output Voltage
Logic Fixed Supply Voltage
Logic Input Voltage
Allowable Offset Voltage Slew Rate
Power Dissipation
Thermal Resistance, Junction-to-Ambient
Junction Temperature
Storage Temperature
Ambient Temperature
Min.
V
B
-25
-0.3
V
S
-0.3
-0.3
-0.3
Max.
V
B
+0.3
625
V
B
+0.3
25
V
CC
+0.3
± 50
0.625
200
+150
+150
Unit
V
V/ns
W
°C/W
°C
°C
°C
-40
+125
2. Mounted on 76.2 x 114.3 x 1.6mm PCB (FR-4 glass epoxy material).
3. Refer to the following standards:
JESD51-2: Integral circuits thermal test method environmental conditions - Natural convection
JESD51-3: Low effective thermal conductivity test board for leaded surface mount packages
4. Do not exceed P
D
under any circumstances.
Recommended Operating Conditions
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended
operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not
recommend exceeding them or designing to Absolute Maximum Ratings.
Symbol
V
B
V
S
V
HO
V
IN
V
CC
Parameter
High-Side Floating Supply Voltage
High-Side Floating Supply Offset Voltage
High-Side Output Voltage
Logic Input Voltage
Logic Supply Voltage
Min.
V
S
+10
6-V
CC
V
S
GND
10
Max.
V
S
+20
600
V
B
V
CC
20
Unit
V
© 2005 Fairchild Semiconductor Corporation
FAN7361, FAN7362 Rev. 1.0.8
4
www.fairchildsemi.com
FAN7361, FAN7362 High-Side Gate Driver
Electrical Characteristics
V
BIAS
(V
CC
, V
BS
)=15.0V, T
A
= 25°C, unless otherwise specified. The V
IN
and I
IN
parameters are referenced to GND.
The V
O
and I
O
parameters are referenced to V
S
and are applicable to the respective output HO.
Symbol
V
BSUV
+
V
BSUV
-
V
BSHYS
I
LK
I
QBS
I
QCC
I
PBS
V
IH
V
IL
V
OH
V
OL
I
IN+
I
IN-
I
O+
I
O-
V
S
Characteristics
Test Condition
FAN7361
FAN7362
FAN7361
FAN7362
FAN7361
FAN7362
Min.
8.2
7.6
7.4
7.2
Typ. Max.
9.2
8.6
8.6
8.2
0.5
0.4
10
50
30
420
80
75
550
10.2
9.6
9.2
9.2
Unit
V
BS
Supply Under-Voltage Positive Going
V
BS
=Sweep
Threshold
V
BS
Supply Under-Voltage Negative
Going Threshold
V
BS
Supply Under-Current Lockout
Hysteresis
Offset Supply Leakage Current
Quiescent V
BS
Supply Current
Quiescent V
CC
Supply Current
Operating V
BS
Supply Current
Logic "1" Input Voltage
Logic "0" Input Voltage
High Level Output Voltage, V
B
-V
HO
Low Level Output Voltage, V
HO
Logic "1" Input Bias Current
Logic "0" Input Bias Current
Output High Short Circuit Pulse Current
Output Low Short Circuit Pulse Current
Allowable Negative V
S
Pin Voltage for IN
Signal Propagation to HO
No load
No load
V
IN
=5V
V
IN
=0V
V
BS
=Sweep
V
BS
=Sweep
V
B
=V
S
=600V
V
IN
=0V or 5V
V
IN
=0V
C
L
=1nF, f=10kHz
V
µA
FAN7361
FAN7362
FAN7361
FAN7362
3.6
2.9
1.0
0.8
0.1
0.1
50
1.0
200
400
250
500
-9.8
-7.0
90
2.0
µA
mA
V
V
V
HO
=0V, V
IN
=5V, PW
≤
10µs
V
HO
=15V, V
IN
=0V,PW
≤
10µs
Dynamic Electrical Characteristics
V
BIAS
(V
CC
, V
BS
)=15.0V, V
S
=GND, C
L
=1000pF and T
A
= 25°C, unless otherwise specified.
Symbol
t
on
t
off
t
r
t
f
Characteristics
Turn-on Propagation Delay
Turn-off Propagation Delay
(5)
Turn-on Rise Time
Turn-off Fall Time
V
S
=0V
Test Condition
V
S
=0V or 600V
Min.
Typ.
120
90
70
30
Max.
200
180
160
100
Unit
ns
Note:
5. This parameter guaranteed by design.
© 2005 Fairchild Semiconductor Corporation
FAN7361, FAN7362 Rev. 1.0.8
5
www.fairchildsemi.com
