KSC184L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> KSC184L

KSC184L: DescriptionSmall Signal Bipolar Transistor, 0.05A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92; CategoryDiscrete semiconductor The transistor; File Size101KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

KSC184L Overview

Small Signal Bipolar Transistor, 0.05A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92

KSC184L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
Minimum DC current gain (hFE)	350
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.25 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

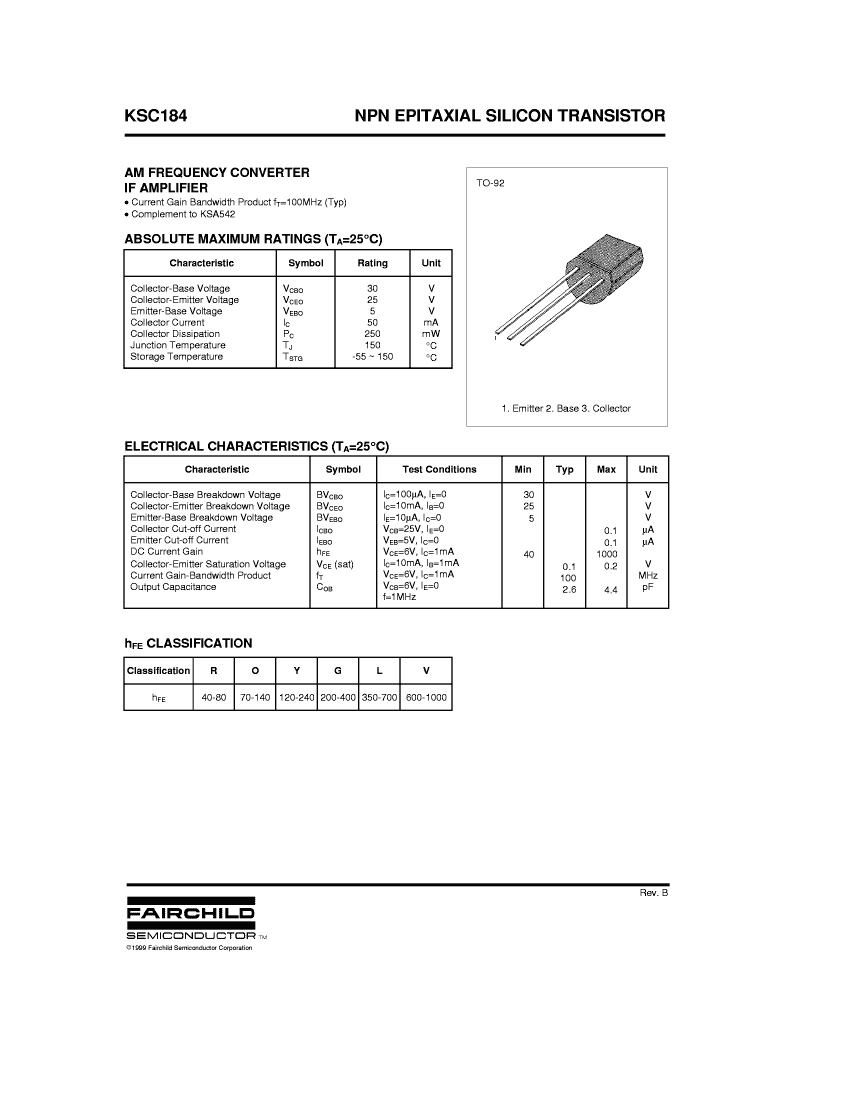

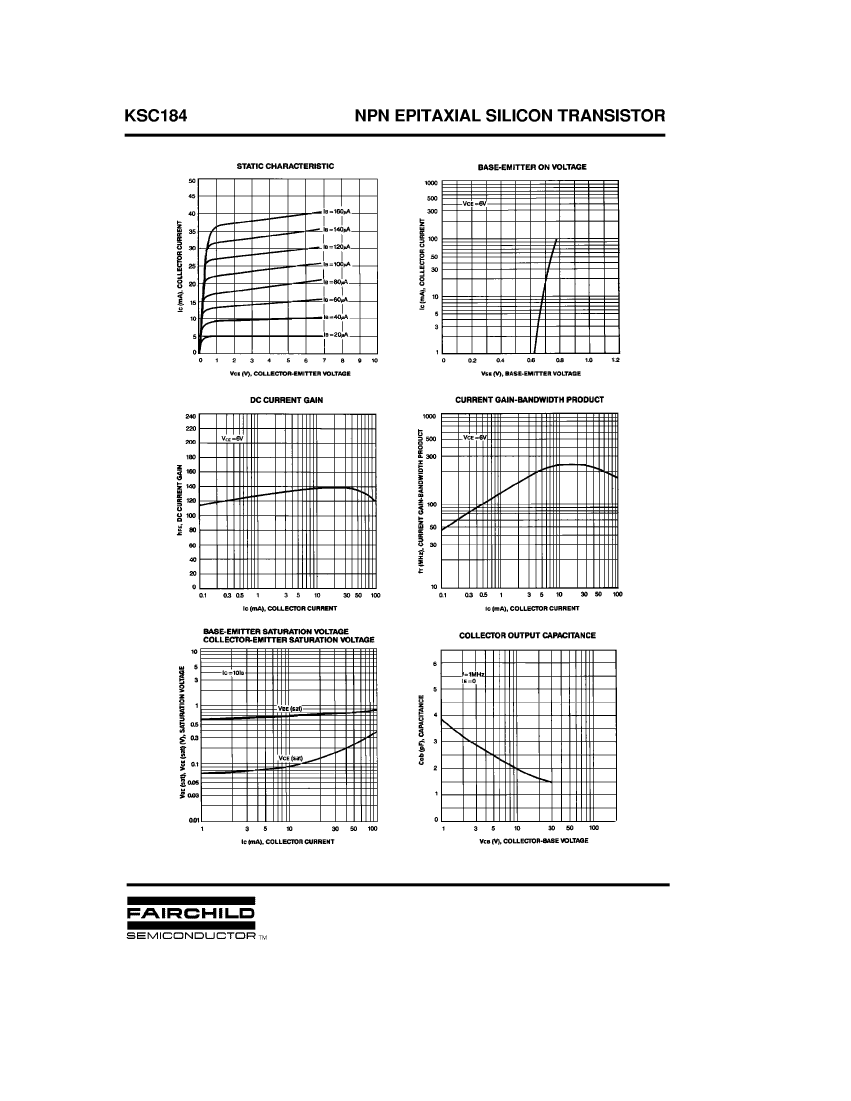

Preview

Download Datasheet

View All

KSC184L Related Products

	KSC184L	KSC184O	KSC184V	KSC184G	KSC184Y	KSC184R
Description	Small Signal Bipolar Transistor, 0.05A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 0.05A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 0.05A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 0.05A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 0.05A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 0.05A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.05 A	0.05 A	-	-	0.05 A	0.05 A
Collector-emitter maximum voltage	25 V	25 V	-	-	25 V	25 V
Configuration	SINGLE	SINGLE	-	-	SINGLE	SINGLE
Minimum DC current gain (hFE)	350	70	-	-	120	40
JEDEC-95 code	TO-92	TO-92	-	-	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	-	-	O-PBCY-T3	O-PBCY-T3
JESD-609 code	e0	e0	-	-	e0	e0
Number of components	1	1	-	-	1	1
Number of terminals	3	3	-	-	3	3
Maximum operating temperature	150 °C	150 °C	-	-	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	-	-	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	-	-	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	-	-	NPN	NPN
Maximum power dissipation(Abs)	0.25 W	0.25 W	-	-	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified
surface mount	NO	NO	-	-	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	-	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	-	-	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
transistor applications	AMPLIFIER	AMPLIFIER	-	-	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	-	-	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	-	-	100 MHz	100 MHz
package instruction	-	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	-	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
