REVISION B
DO NOT
SCALE FROM
THIS PRINT
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
RS316-XXXXX-XXXXXX-XXXX
CABLE CALL OUT
RS316: CCA-316-S (RG316 CABLE,
DOUBLE SHIELD)
OVERALL CABLE LENGTH
MILLIMETERS OF CABLE
0100 MIN. (SEE NOTE 8 & 9)
CABLE STRIPPING DIMENSIONS
PER CONFIGURATIONS
(SEE TABLE 1)(SEE NOTES 12,13,14,15)
"A" mm C
"B" mm
"C" mm
FIG 2
-01SP: SMA-P-C-XX-ST-CA1S (SEE SHEET 2)
*
-01BJ: SMA-J-C-XX-ST-BH1S (SEE SHEET 3)
*
-02SP: MCX-P-C-XX-ST-CA1S (SEE SHEET 3)
*
-02SJ: MCX-J-C-XX-ST-CA1S (SEE SHEET 3)
*
-03SP: MMCX-P-C-XX-ST-CA1S (SEE SHEET 3)
*
-04BJ: BNC5-J-C-XX-ST-BH1S (SEE SHEET 3)
*
-05SP: TNC-P-C-XX-ST-CA1S (SEE SHEET 3)
END 1 PLATING OPTION
END 1 CONNECTOR
END 2 PLATING OPTION
1: GOLD ALL COMPONENTS
2: GOLD / NICKEL COMBINATION
3: ALTERNATE GOLD / NICKEL
(LEAVE BLANK FOR -SING OR -XXXXXX
END 2 PREPARATION)
"D" mm C
"E" mm C
1: GOLD ALL COMPONENTS
2: GOLD / NICKEL COMBINATION
3: ALTERNATE GOLD / NICKEL
(SEE SHEET 2 FOR PLATING SPECIFICS)
* = NOT RELEASED
-01SP: SMA-P-C-XX-ST-CA1S (SEE SHEET 2)
*
-01BJ: SMA-J-C-XX-ST-BH1S (SEE SHEET 3)
*
-02SP: MCX-P-C-XX-ST-CA1S (SEE SHEET 3)
*
-02SJ: MCX-J-C-XX-ST-CA1S (SEE SHEET 3)
*
-03SP: MMCX-P-C-XX-ST-CA1S (SEE SHEET 3)
*
-04BJ: BNC5-J-C-XX-ST-BH1S (SEE SHEET 3)
*
-05SP: TNC-P-C-XX-ST-CA1S (SEE SHEET 3)
-SING: SINGLE ENDED (ONE END ONLY, SEE NOTE 11)
-XXXXXX: STRIPPED AND TINNED (THIS END ONLY-
SEE NOTES 11-15, 18 & SHEET 2, FIG 3)
(SEE FIG 2) "C" FORMAT: X.X mm
(SEE FIG 2) "B" FORMAT: X.X mm
(SEE FIG 2) "A" FORMAT: X.X mm
END 2 CONNECTOR OR PREPARATION
C
DO NOT LEAVE ANY SPACE BLANK,
EACH MUST CONTAIN A
NUMERIC CHARACTER 0 THRU 9.
RS316-01SPX-01SPX-XXXX SHOWN
FIG 1
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. CABLE CUT LENGTH:
= (LENGTH: XXXX) - (SUBTRACTOR FOR END 1) - (SUBTRACTOR FOR END 2).
(SEE TABLE 1 FOR SUBTRACTORS)
C
3. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS.
C
4. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1.
5. AFTER FINAL ELECTRICAL TESTS, LABEL EACH CABLE ASSEMBLY WITH 1 LABEL -ET
6. CRITICALS ON CONNECTOR PRINTS TO BE CHECKED IN PROCESS.
7. FINISHED ASSEMBLIES TO BE PACKAGED PER PACKAGING STANDARD CO-HD-WI-3040-M.
LOCK WASHERS AND NUTS TO BE SHIPPED UNASSEMBLED. GASKETS TO BE INSTALLED ON CABLE.
8. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS.
9. CABLE LENGTHS LONGER THAN 1000 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA.
10. MINIMUM BEND RADIUS FOR RS316 = 12.8 [0.50]
11. FOR SING ENDED OR STRIPPED AND TINNED ASSEMBLIES: MAKE A DOUBLE ENDED
ASSEMBLY AT TWICE THE CABLE LENGTH AND TEST BEFORE CUTTING ASSEMBLY IN HALF.
12. DIM "A", "B", AND "C" HAVE A MINIMUM VALUE OF 0.0mm & A MAXIMUM VALUE OF 9.9mm.
13. PRODUCTION OF STRIP AND TIN FOR CENTER DIELECTIC USE: A.
14. PRODUCTION OF STRIP AND TIN FOR SHIELD USE: D=A+B.
15. PRODUCTION OF STRIP AND TIN FOR JACKET USE: E=A+B+C.
16. CONNECTORS TO BE ORIENTED ACCORDING TO C0-HD-WI-3048-M.
17. FOR BULKHEAD APPLICATIONS, THE END USER SHOULD TIGHTEN THE THREADED NUT TO 15
IN-LB MINIMUM.
18. FOR STRIPPED AND TINNED OPTION, ONLY THE CENTER CONDUCTOR IS TINNED.
C:\EnterpriseVault\DWG\MISC\MKTG\RS316-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TOLERANCES ARE:
DECIMALS
.X: 0.3 [.01]
5
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
SEE END 1 AND END 2 ASSEMBLY PRINTS
RG316 (DOUBLE SHIELD) CABLE ASSEMBLY
RS316-XXXXX-XXXXXX-XXXX
3/20/2013
BY:
EMMA CHEN
SHEET
1
OF
3
REVISION B

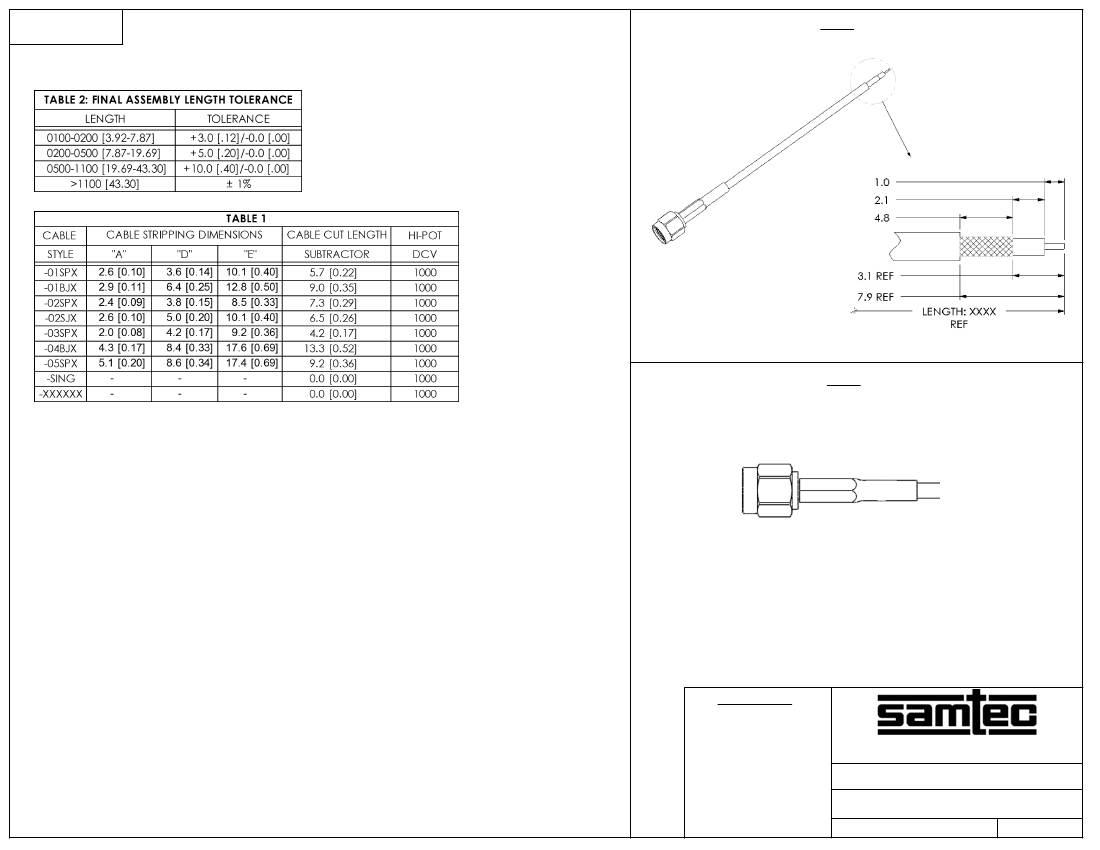

RS316-01SPX-102148-XXXX SHOWN
FIG 3
*
*
*
*
*
*
(STRAIGHT PLUG)
* = NOT RELEASED
-01SP
(USE DRAWING No. SMA-P-C-XX-ST-CA1S
FOR ASSEMBLY INSTRUCTIONS)
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-HF-ST-CA1S)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-P-C-XX-ST-CA1S
THAT APPLY MUST BE VERIFIED.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
RG316 (DOUBLE SHIELD) CABLE ASSEMBLY
DWG. NO.
SHEET SCALE: 1:1
RS316-XXXXX-XXXXXX-XXXX
3/20/2013
C:\EnterpriseVault\DWG\MISC\MKTG\RS316-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
BY:
EMMA CHEN
SHEET
2
OF
3
REVISION B

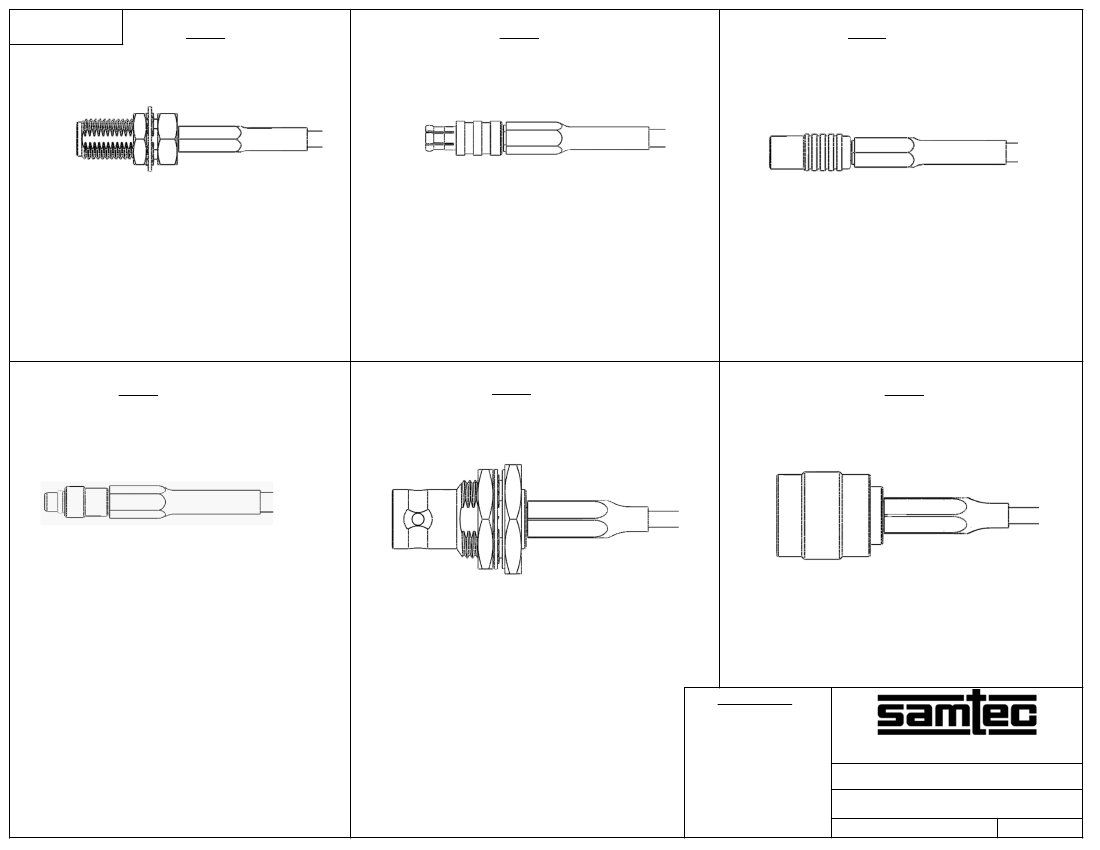

(STRAIGHT BULKHEAD JACK)
*-01BJ
(STRAIGHT PLUG)
(USE DRAWING No. MCX-P-C-XX-ST-CA1S
FOR ASSEMBLY INSTRUCTIONS)
*-02SP
(STRAIGHT JACK)
(USE DRAWING No. MCX-J-C-XX-ST-CA1S
FOR ASSEMBLY INSTRUCTIONS)
*-02SJ
(USE DRAWING No. SMA-J-C-XX-ST-BH1S
FOR ASSEMBLY INSTRUCTIONS)
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-J-C-HF-ST-BH1S)
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: MCX-P-C-HF-ST-CA1S)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-J-C-XX-ST-BH1S
THAT APPLY MUST BE VERIFIED.
2: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: MCX-P-C-HN-ST-CA1S)
NOTE: ALL CRITICAL DIMENSIONS ON MCX-P-C-XX-ST-CA1S
THAT APPLY MUST BE VERIFIED.
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: MCX-J-C-HF-ST-CA1S)
NOTE: ALL CRITICAL DIMENSIONS ON MCX-J-C-XX-ST-CA1S
THAT APPLY MUST BE VERIFIED.
(STRAIGHT PLUG)
(USE DRAWING No. MMCX-P-C-XX-ST-CA1S
FOR ASSEMBLY INSTRUCTIONS)
*-03SP
(STRAIGHT BULKHEAD JACK)
*-04BJ
(STRAIGHT PLUG)
(USE DRAWING No. TNC-P-C-XX-ST-CA1S
FOR ASSEMBLY INSTRUCTIONS)
*-05SP
(USE DRAWING No. BNC5-J-C-XX-ST-BH1S
FOR ASSEMBLY INSTRUCTIONS)
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: MMCX-P-C-HF-ST-CA1S)
2: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: MMCX-P-C-HN-ST-CA1S)
NOTE: ALL CRITICAL DIMENSIONS ON MMCX-P-C-XX-ST-CA1S
THAT APPLY MUST BE VERIFIED.
PLATING
2: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: BNC5-J-C-HN-ST-BH1S)
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: BNC5-J-C-GN-ST-BH1S)
NOTE: ALL CRITICAL DIMENSIONS ON BNC5-J-C-XX-ST-BH1S
THAT APPLY MUST BE VERIFIED.
PLATING
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: TNC-P-C-GN-ST-CA1S)
NOTE: ALL CRITICAL DIMENSIONS ON TNC-P-C-XX-ST-CA1S
THAT APPLY MUST BE VERIFIED.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
RG316 (DOUBLE SHIELD) CABLE ASSEMBLY
DWG. NO.
SHEET SCALE: 1:1
RS316-XXXXX-XXXXXX-XXXX
3/20/2013
C:\EnterpriseVault\DWG\MISC\MKTG\RS316-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
BY:
EMMA CHEN
SHEET
3
OF
3
