FV1400AMFREQ datasheet, PDF - EEWORLD Datasheet

FV1400AMFREQ: DescriptionSine Output Oscillator, 70MHz Min, 170MHz Max; CategoryPassive components oscillator; File Size62KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric Compare View All

FV1400AMFREQ Overview

Sine Output Oscillator, 70MHz Min, 170MHz Max

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	40%
linearity	10%
Manufacturer's serial number	FV1400A
Installation features	SURFACE MOUNT
Maximum operating frequency	170 MHz
Minimum operating frequency	70 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	SINE
Output impedance	50 Ω
physical size	14.22mm x 9.4mm x 5.46mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES

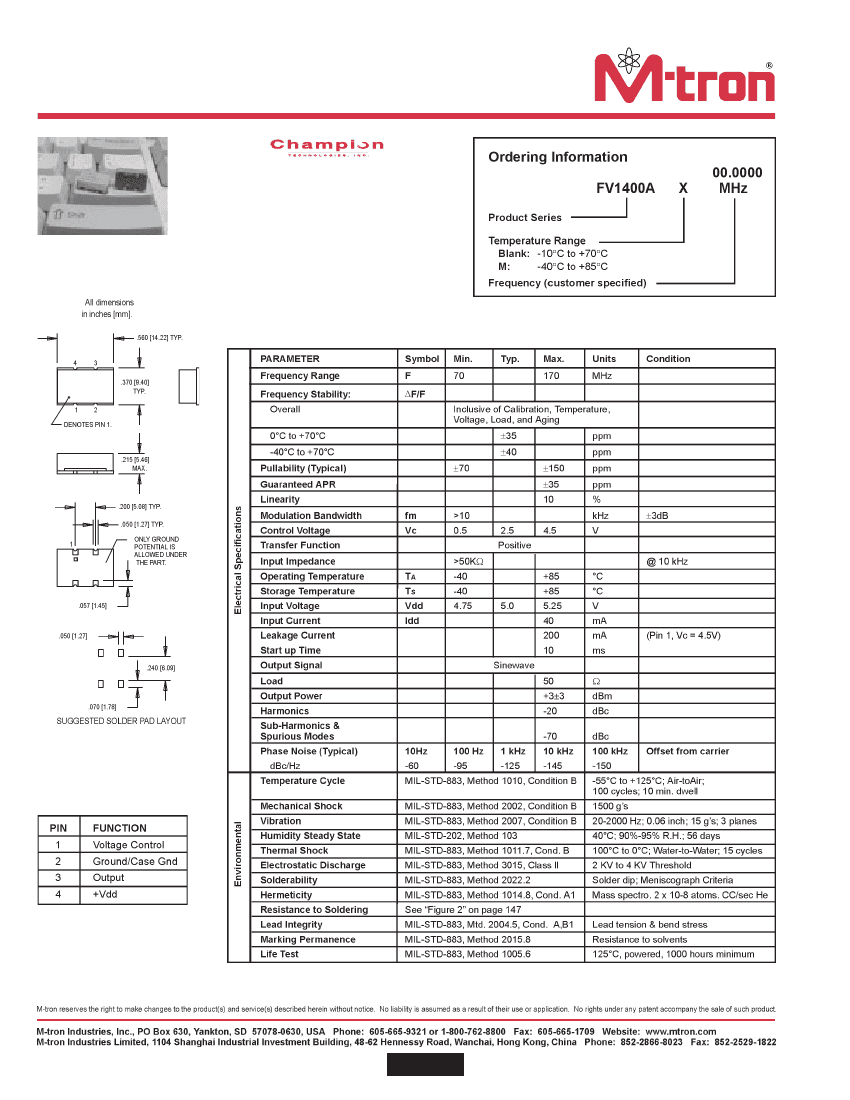

FV1400A Series

9x14 mm FR-4, 5.0 Volt, Sinewave, VCXO

•

Former

Product

•

Phase Locked Loops (PLL’s) & Clock

Recovery where phase noise integrity is

critical

Pin Connections

	FV1400AMFREQ	FV1400AFREQ
Description	Sine Output Oscillator, 70MHz Min, 170MHz Max	Sine Output Oscillator, 70MHz Min, 170MHz Max
Maker	MtronPTI	MtronPTI
Reach Compliance Code	unknown	unknown
Maximum control voltage	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V
Frequency Adjustment - Mechanical	NO	NO
Frequency offset/pull rate	150 ppm	150 ppm
frequency stability	40%	35%
linearity	10%	10%
Manufacturer's serial number	FV1400A	FV1400A
Installation features	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	170 MHz	170 MHz
Minimum operating frequency	70 MHz	70 MHz
Maximum operating temperature	85 °C	70 °C
Minimum operating temperature	-40 °C	-10 °C
Oscillator type	SINE	SINE
Output impedance	50 Ω	50 Ω
physical size	14.22mm x 9.4mm x 5.46mm	14.22mm x 9.4mm x 5.46mm
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
