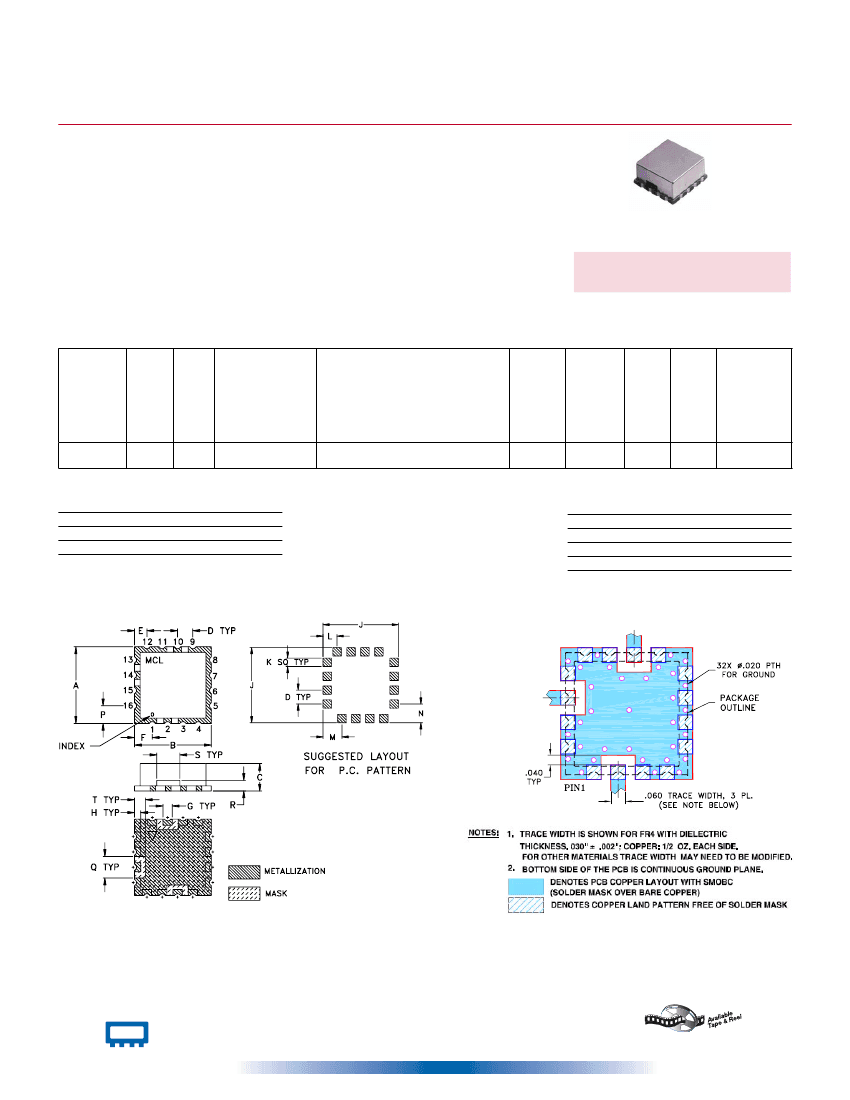

ROS-470-319+ Overview

Voltage Controlled Oscillator, 460MHz Min, 470MHz Max, ROHS COMPLIANT, CASE CK605, 16 PIN

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	LCC16,.5SQ,100
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum control voltage	10 V
Minimum control voltage	1 V
JESD-609 code	e4

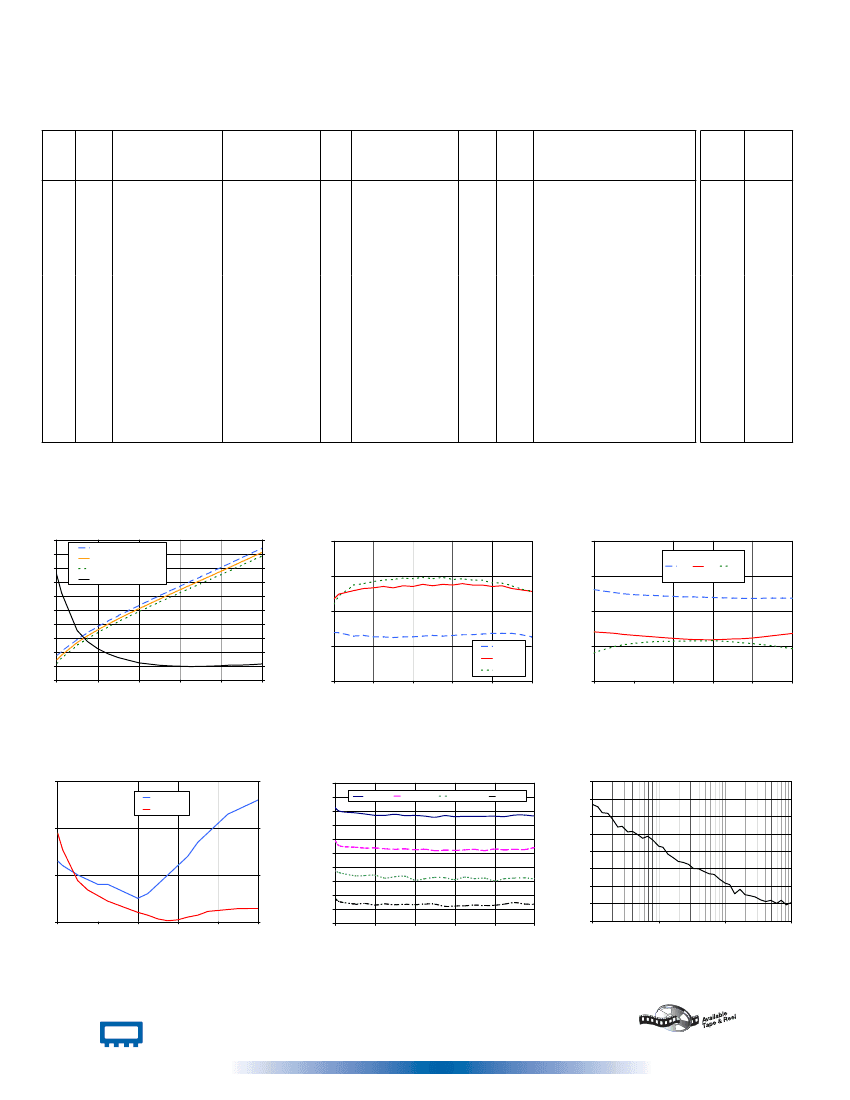

Modulation sensitivity	6 MHz/V
Installation features	SURFACE MOUNT
Number of terminals	16
offset frequency	1 kHz
Maximum operating frequency	470 MHz
Minimum operating frequency	460 MHz
Nominal operating frequency	470 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	2.5 dBm
Package body material	METAL
Encapsulate equivalent code	LCC16,.5SQ,100
phase noise	-94 dBc/Hz
physical size	12.7mm x 12.7mm x 4.57mm
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	22 mA
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
