BMB-2A-1500L-N2 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> BMB-2A-1500L-N2

BMB-2A-1500L-N2: Description1 FUNCTIONS, 0.35A, FERRITE CHIP, EIA STD PACKAGE SIZE 0805, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size1MB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

BMB-2A-1500L-N2 Overview

1 FUNCTIONS, 0.35A, FERRITE CHIP, EIA STD PACKAGE SIZE 0805, 2 PIN

BMB-2A-1500L-N2 Parametric

Parameter Name	Attribute value
Objectid	1925985699
package instruction	EIA STD PACKAGE SIZE 0805, 2 PIN
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	6.89
shell code	0805
structure	Multilayer Chip
Maximum DC resistance	0.35 Ω
filter type	FERRITE CHIP
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.9 mm
length	2 mm
Installation type	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	1500 OHM Ω
method of packing	TR
Rated current	0.35 A
width	1.2 mm

Preview

Download Datasheet

View All

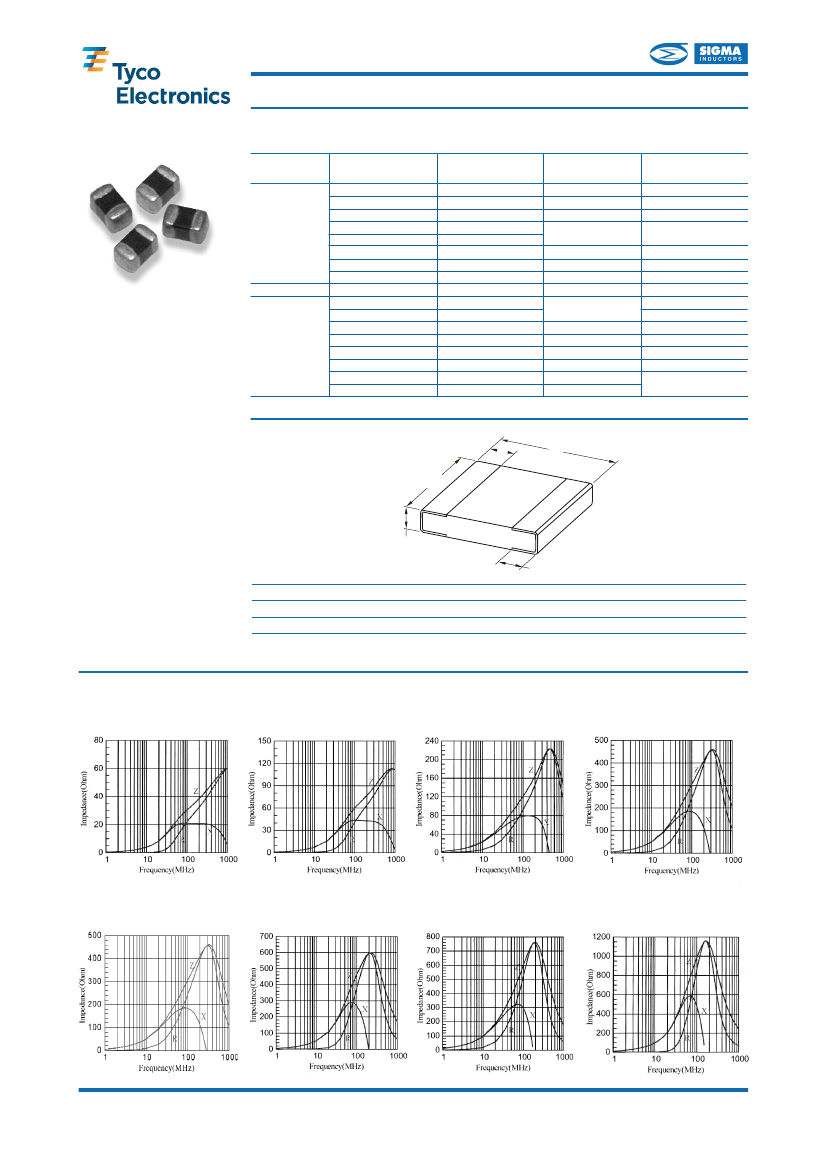

Multilayer Ferrite Beads

Type BMB-L Series

Specifications

Package

Size

Part

Number

BMB-1J-0030L-N2

BMB-1J-0060L-N2

BMB-1J-0120L-N2

BMB-1J-0300L-N2

BMB-1J-0330L-N8

BMB-1J-0470L-N2

BMB-1J-0600L-N2

BMB-1J-1000L-N2

BMB-2A-0030L-N2

BMB-2A-0060L-N2

BMB-2A-0120L-N2

BMB-2A-0300L-N2

BMB-2A-0470L-N2

BMB-2A-0600L-N2

BMB-2A-1000L-N2

BMB-2A-1500L-N2

Impedance (ohms)

DC Resistance

at 100MHz (±25%) (ohms) maximum

120

300

330

470

600

1000

120

300

470

600

1000

1500

0.05

0.10

0.15

0.25

0.30

0.35

0.40

0.05

0.10

0.15

0.20

0.25

0.30

0.35

Rated Current

(mA) maximum

750

650

550

500

450

350

300

1000

850

700

600

500

400

350

0603

The L series exhibits a low DC

resistance across a wide range of

impedance with a higher current

capability than the A series. These

are suitable for use on signal delay

lines handling larger current and

are available in 06:03 and 08:05

packages according to impedance

requirements.

0805

Chip Dimensions

Key Features

■

Low DC Resistance

High Current

Capability

0603 and 0805

Package Sizes

Suited to Signal Delay

Line Applications

Designed for

Telecommunications

Size

0603

0805

1.6 ±0.15

2.0 ±0.20

0.8 ±0.15

1.2 ±0.20

0.8 ±0.15

0.9 ±0.20

0.3 ±0.20

0.5 ±0.30

Operating Temperature Range: -55°C to +125°C

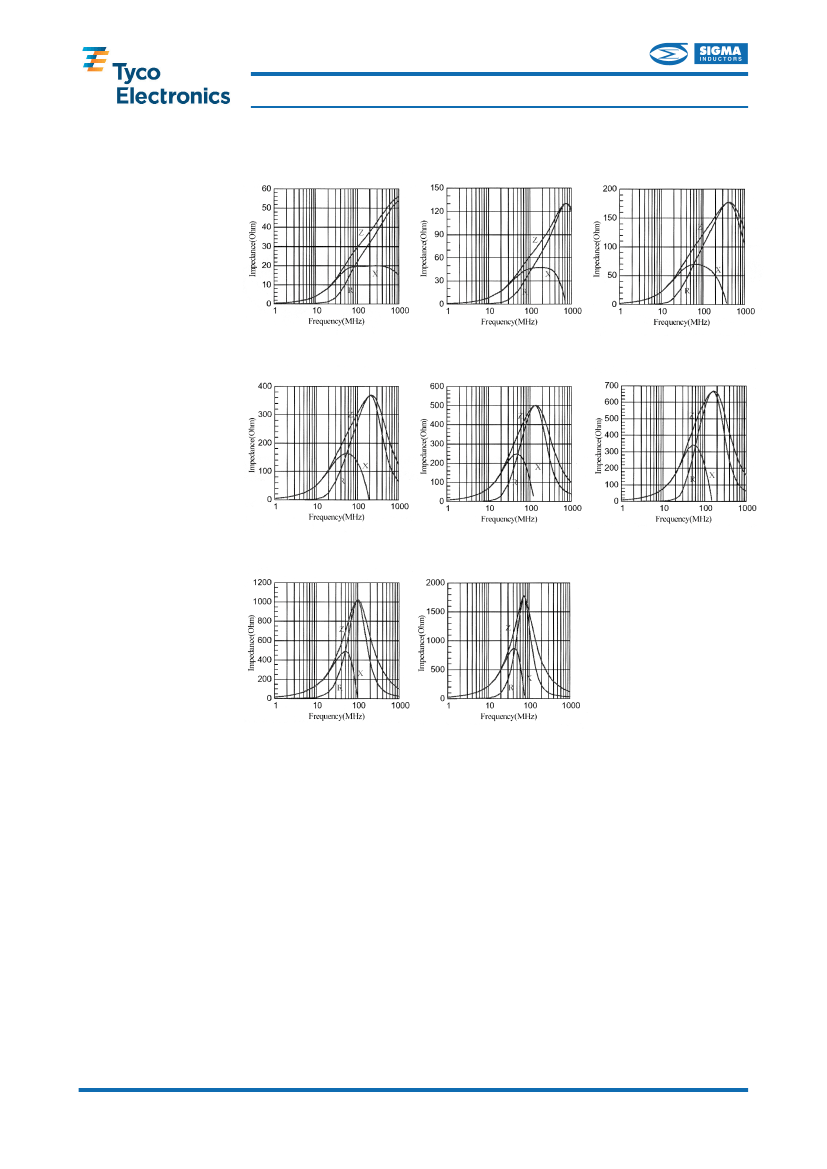

Characteristic Curves

BMB-1J-0030L-N2

BMB-1J-0060L-N2

BMB-1J-0120L-N2

BMB-1J-0300L-N2

BMB-1J-0330L-N8

BMB-1J-0470L-N2

BMB-1J-0600L-N2

BMB-1J-1000L-N2

Literature No. 1773181

Issued: 06-08

Dimensions are shown for

reference purposes only.

Dimensions are in

millimetres unless

otherwise specified.

Specifications subject to

change.

tycoelectronics.com

passives.tycoelectronics.com
