B84143A0180R000: DescriptionThree Phase EMI Filter, 275V, 50/60HzHz, METAL PACKAGE; CategoryAnalog mixed-signal IC filter; File Size630KB，13 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B84143A0180R000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B84143A0180R000	-	-	View	Buy Now

B84143A0180R000 Overview

Three Phase EMI Filter, 275V, 50/60HzHz, METAL PACKAGE

B84143A0180R000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
Reach Compliance Code	compliant
Certification	UL; CUL; CSA; IEC
filter type	THREE PHASE EMI FILTER
high	141 mm
high potential	2700 V
Maximum leakage current	2.73 mA
length	301 mm
Installation type	SURFACE MOUNT
working frequency	50/60Hz Hz
physical size	L301.0XB171.0XH141.0 (mm)/L11.85XB6.732XH5.551 (inch)
Rated current	180 A
Rated voltage	480 V
width	171 mm

B84143A0180R000 Preview

EMC filters

3-line filters

for converters and power electronics

Series/Type:

Date:

B84143A*R000

May 2014

information contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

3-line filters

for converters and power electronics

B84143A*R000

Power line filters for 3-phase systems

Rated voltage V

R

: 480/275 V AC

Rated current I

R

: 8 A to 180 A

Alternative version

Series B84143A*R105 or B84143A*166

offers a cost-optimized solution

Construction

3-line filters

Metal case

Features

High insertion loss

Optimized leakage current

Easy to install

Degree of protection: IP 20

1)

Optimized for long motor cables

and operation under full load

Design complies with

IEC 60939, CSA C22.2 No.8

UL and cUL approval

Typical applications

Frequency converters for motor drives, e.g.

elevators

pumps

traction systems

conveyor systems

HVAC systems (heating, ventilation and air

conditioning)

Wind farms

Power supplies

Terminals

Finger-safe terminal blocks

Marking

Marking on component:

Manufacturer's logo, ordering code, rated voltage, rated

current, rated temperature, climatic category, date code,

approvals

Minimum data on packaging:

Manufacturer's logo, ordering code, quantity, date code

1) According to IEC 60529

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 2 of 13

3-line filters

for converters and power electronics

B84143A*R000

Typical circuit diagram

Technical data and measuring conditions

Rated voltage V

R

Rated current I

R

Test voltage V

test

Overload capability (thermal)

Leakage current l

LK

Climatic category (IEC 60068-1)

Approvals

480/275 V AC (50/60 Hz)

Referred to 40

°C

rated temperature

1770 V DC, 2 s (line/line)

2700 V DC, 2 s (lines/case)

1.5 I

R

for 3 min per hour or

2.5 I

R

for 30 s per hour

At V

R

and 50 Hz

25/100/21 ( 25

°C/+100 °C/21

days damp heat test)

UL 1283, CSA C22.2 No.8 (440 V, 480 V)

Characteristics and ordering codes

I

R

A

Terminal cross section

mm

2

I

LK

mA

0.224

0.418

1.56

2.73

3.3

2.73

R

typ

mΩ

Approx. Ordering code

weight

kg

B84143A0008R000

B84143A0012R000

B84143A0016R000

B84143A0025R000

B84143A0036R000

B84143A0050R000

B84143A0080R000

B84143A0120R000

B84143A0150R000

B84143A0180R000

Approvals

(440/250 V)

V

R

= 480/275 V AC

8

4

12

4

16

4

25 10

36 10

50 10

80 25

120 50

150 50

180 95

×

= Approval granted

1) 480/275 V

40

2.2

20

2.2

15

2.2

8

3.7

3.8

3.7

2.0

4.0

1.0

9.5

0.75 10

0.4 10

0.4 13

×

1)

×

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 3 of 13

3-line filters

for converters and power electronics

B84143A*R000

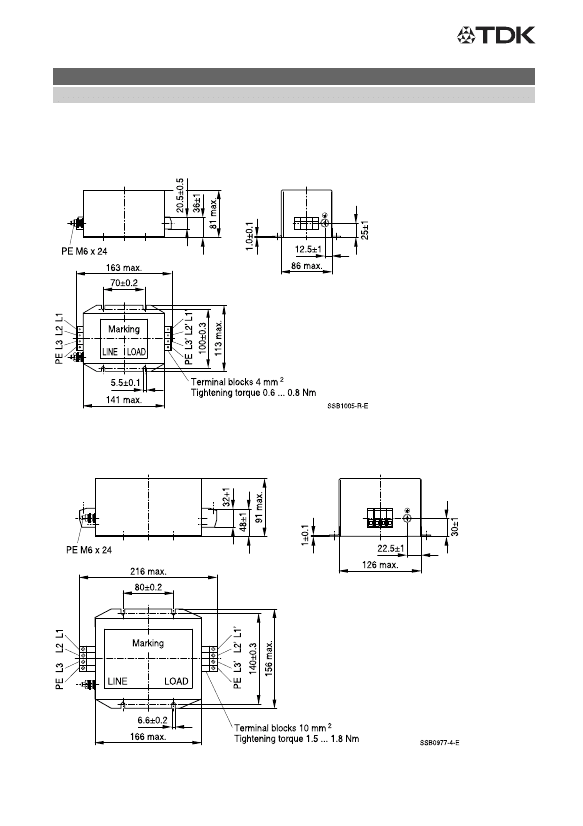

Dimensional drawings

B84143A0008R000 ... B84143A0016R000 (8 A ... 16 A)

General tolerances according to ISO 2768 cL

Dimensions in mm

B84143A0025R000 ... B84143A0050R000 (25 A ... 50 A)

General tolerances according to ISO 2768 cL

Dimensions in mm

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 4 of 13

3-line filters

for converters and power electronics

B84143A*R000

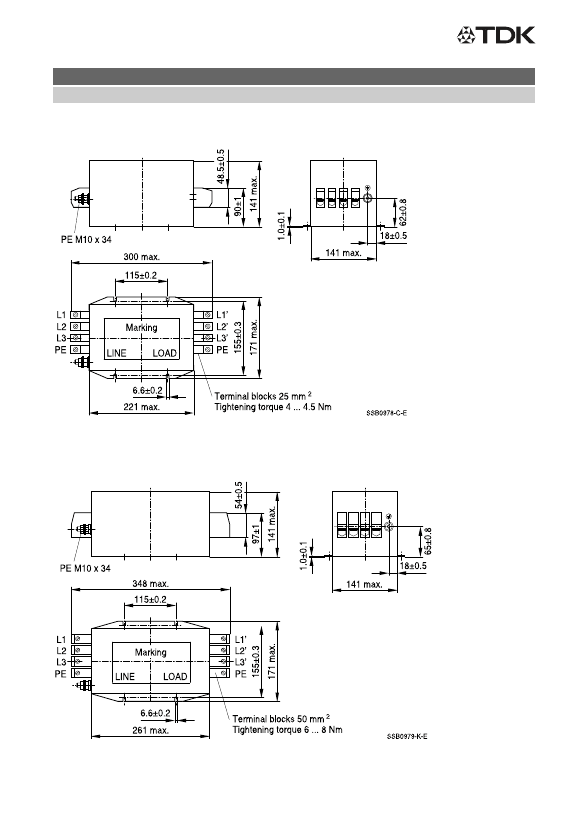

B84143A0080R000 (80 A)

General tolerances according to ISO 2768 cL

Dimensions in mm

B84143A0120R000, B84143A0150R000 (120 A and 150 A)

General tolerances according to ISO 2768 cL

Dimensions in mm

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 5 of 13

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
