Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
1
For Automotive
I
Dimensions
0.4±0.2
Chip Ferrite Bead for Automotive
BLM18A Series (0603 Size)
I
Equivalent Circuit
1.6±0.15
0.8±0.15
0.8±0.15
(Resistance element becomes dominant
at high frequencies.)
: Electrode
(in mm)
I
Packaging
Code
D
J
B
Packaging
180mm Paper Tape
330mm Paper Tape
Bulk(Bag)
Minimum Quantity
4000
10000
1000
I
Rated Value (p: packaging code)
Part Number
BLM18AG121SH1p
BLM18AG151SH1p
BLM18AG221SH1p
BLM18AG331SH1p
BLM18AG471SH1p
BLM18AG601SH1p
BLM18AG102SH1p
Number of Circuits: 1
Continued on the following page.
Impedance
(at 100MHz/20°C)
120ohm
±25%
150ohm
±25%
220ohm
±25%
330ohm
±25%
470ohm
±25%
600ohm
±25%
1000ohm
±25%
Impedance
(at 1GHz/20°C)
-
-
-
-
-
-
-
Rated Current
500mA
500mA
500mA
500mA
500mA
500mA
400mA
DC Resistance
0.18ohm max.
0.25ohm max.
0.25ohm max.
0.30ohm max.
0.35ohm max.
0.38ohm max.
0.50ohm max.
Operating
Temperature Range
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
o
This data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
Continued from the preceding page.
2
I

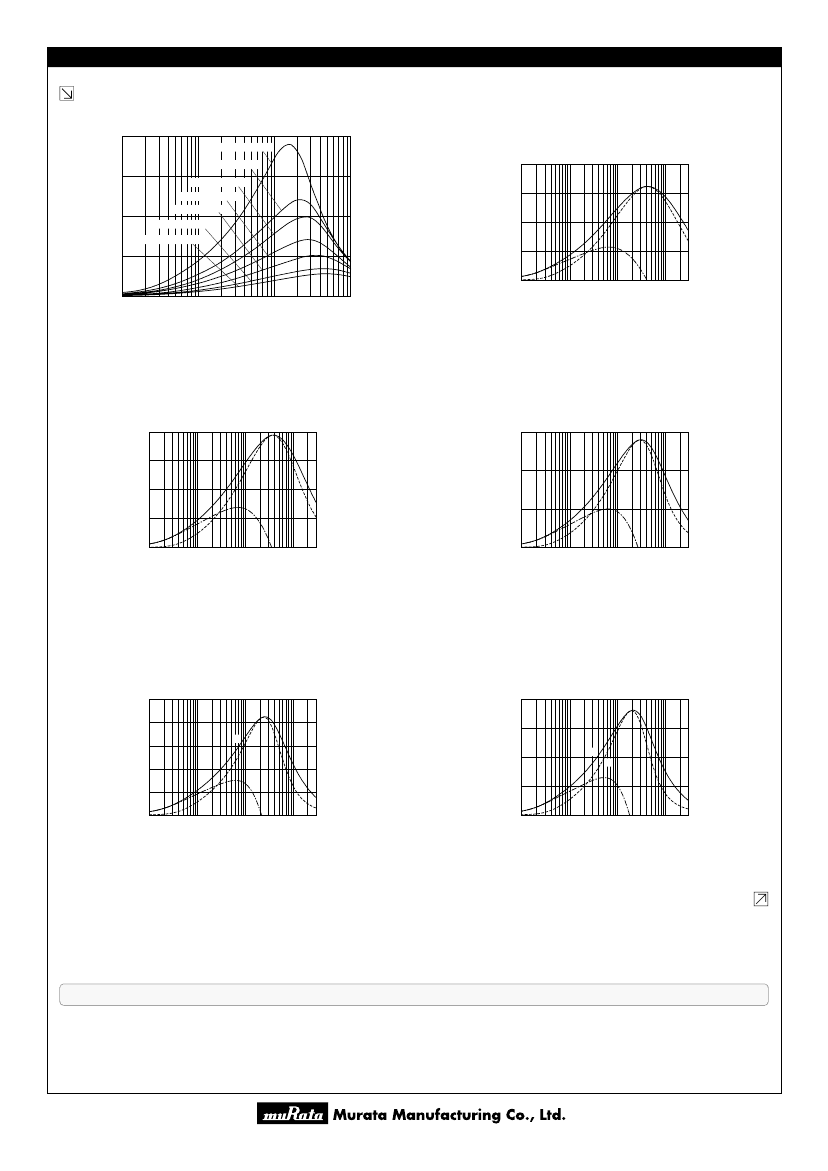

Impedance-Frequency Characteristics (Main Items)
1200
BLM18AG102SH1
BLM18AG601SH1
900
Impedance (Ω)
BLM18AG471SH1
I
Impedance-Frequency Characteristics
BLM18AG121SH1
200
600
BLM18AG221SH1
BLM18AG151SH1
BLM18AG121SH1
Impedance (Ω)
BLM18AG331SH1
150
Z
R
100
300
50
X
0
0
1
10
100
Frequency (MHz)
1000
1
10
100
Frequency (MHz)
1000
3000
I
Impedance-Frequency Characteristics
BLM18AG151SH1
200
Z
150
Impedance (Ω)
I
Impedance-Frequency Characteristics
BLM18AG221SH1
300
Z
Impedance (Ω)
R
R
100
X
50
200
100
X
0
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
I
Impedance-Frequency Characteristics
BLM18AG331SH1
500
400
Impedance (Ω)
300
200
X
100
0
Z
R
I
Impedance-Frequency Characteristics
BLM18AG471SH1
600
450
Impedance (Ω)
300
Z
R
X
150
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
Continued on the following page.
o
This data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
Continued from the preceding page.
3
I
Impedance-Frequency Characteristics
BLM18AG601SH1
800
I
Impedance-Frequency Characteristics
BLM18AG102SH1
1200
600
Impedance (Ω)
Impedance (Ω)
Z
400
R
900
Z
600
R
200
X
300
X
0
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
I
!Caution/Notice
!Caution
(Rating)
1. Do not use products beyond the rated current as
this may create excessive heat and deteriorate
the insulation resistance.
2. Be sure to provide an appropriate fail-safe
function on your product to prevent a second damage
that may be caused by the abnormal function or
the failure our product.
Notice
Solderability of Tin plating termination chip might be
deteriorated when low temperature soldering profile
where peak solder temperature is below the Tin melting
point is used. Please confirm the solderability of Tin
plating termination chip before use.
o
This data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
