SURFACE MOUNT LED LAMP
SUPER BRIGHT RIGHT ANGLE
QTLP610C-R
Red
QTLP610C-Y
Yellow
QTLP610C-IB
Blue
PACKAGE DIMENSIONS
0.126 (3.2)
0.110 (2.8)
QTLP610C-E
Orange
QTLP610C-AG
Yellow-Green
QTLP610C-O
Yellow-Orange
QTLP610C-IG
True Green
0.043 (1.1)
0.035 (0.9)
FRONT
0.020 (0.50)
0.087 (2.2)
0.071 (1.8)
0.087 (2.2)
0.071 (1.8)
0.039 (1.0)
TOP
0.035 (0.9)
R0.017 (0.4)
CATHODE MARK
BACK
0.016 (0.4)
POLARITY
NOTE:
Dimensions for all drawings are in inches (mm).
APPLICATIONS
• LCD edge-lighting
• Edge card edge-lighting
DESCRIPTION
These super bright right angle surface mount chip LEDs emit light in the lateral direction. Small size and wide viewing angle make
these LEDs ideal choices for status indication in consumer electronics, industrial control and other applications.
FEATURES
• Small footprint - 3.0(L) X 2.0(W) X 1.0(H) mm
• AllnGaP technology for -R, -E, -O, -Y and -AG
• InGaN/SiC technology for -IG and -IB
• Wide viewing angle of 120°
• Water clear optics
• Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel
2001 Fairchild Semiconductor Corporation
DS300215
8/30/01
1 OF 8
www.fairchildsemi.com
SURFACE MOUNT LED LAMP
SUPER BRIGHT RIGHT ANGLE
QTLP610C-R
Red
QTLP610C-Y
Yellow
QTLP610C-IB
Blue
QTLP610C-E
Orange
QTLP610C-AG
Yellow-Green
QTLP610C-O
Yellow-Orange
QTLP610C-IG
True Green
ABSOLUTE MAXIMUM RATINGS
Parameter
Continuous Forward Current
Peak Forward Current
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage (I
R
= 10 µA)
Power Dissipation
Operating Temperature
Storage Temperature
Lead Soldering Time
(T
A
=25°C Unless otherwise specified)
QTLP610C
-O
30
160
5
72
-40 to +85
-40 to +90
260 for 5 sec
Units
mA
mA
V
mW
°C
°C
°C
Symbol
I
F
I
FM
V
R
P
D
T
OPR
T
STG
T
SOL
-R
30
160
5
72
-E
30
160
5
72
-Y
25
120
5
60
-AG
30
160
5
72
ABSOLUTE MAXIMUM RATINGS
Parameter
Continuous Forward Current
Peak Forward Current
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage (I
R
= 10 µA)
Power Dissipation
Operating Temperature
Storage Temperature
Lead Soldering Time
(T
A
=25°C Unless otherwise specified)
QTLP610C
-IB
30
100
5
120
-40 to +85
-40 to +90
260 for 5 sec
-IG
30
100
5
120
Units
mA
mA
V
mW
°C
°C
°C
Symbol
I
F
I
FM
V
R
P
D
T
OPR
T
STG
T
SOL
www.fairchildsemi.com
2 OF 8
8/30/01
DS300215
SURFACE MOUNT LED LAMP
SUPER BRIGHT RIGHT ANGLE
QTLP610C-R
Red
QTLP610C-Y
Yellow
QTLP610C-IB
Blue
QTLP610C-E
Orange
QTLP610C-AG
Yellow-Green
QTLP610C-O
Yellow-Orange
QTLP610C-IG
True Green
ELECTRICAL / OPTICAL CHARACTERISTICS
Part Number
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Wavelength (nm)
Peak
Dominant
Spectral Line Half Width (nm)
Viewing Angle (°)
Symbol
-R
20
45
2.4
2.0
630
624
20
120
(T
A
=25°C)
QTLP610C
-O
20
45
2.4
2.0
610
605
18
120
Condition
-E
20
45
2.4
2.0
620
615
18
120
-Y
20
45
2.4
2.0
590
589
15
120
-AG
10
20
2.4
2.0
575
573
20
120
I
V
I
F
= 20mA
V
F
I
F
= 20mA
P
D
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
2
1/2
ELECTRICAL / OPTICAL CHARACTERISTICS
Part Number
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Wavelength (nm)
Peak
Dominant
Spectral Line Half Width (nm)
Viewing Angle (°)
Symbol
(T
A
=25°C)
QTLP610C
-IB
20
30
4.0
3.5
465
470
25
120
-IG
60
100
4.0
3.5
520
525
35
120
Condition
I
V
I
F
= 20mA
V
F
I
F
= 20mA
P
D
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
2
1/2
DS300215
8/30/01
3 OF 8
www.fairchildsemi.com
SURFACE MOUNT LED LAMP
SUPER BRIGHT RIGHT ANGLE
QTLP610C-R
Red
QTLP610C-Y
Yellow
QTLP610C-IB
Blue
QTLP610C-E
Orange
QTLP610C-AG
Yellow-Green
QTLP610C-O
Yellow-Orange
QTLP610C-IG
True Green

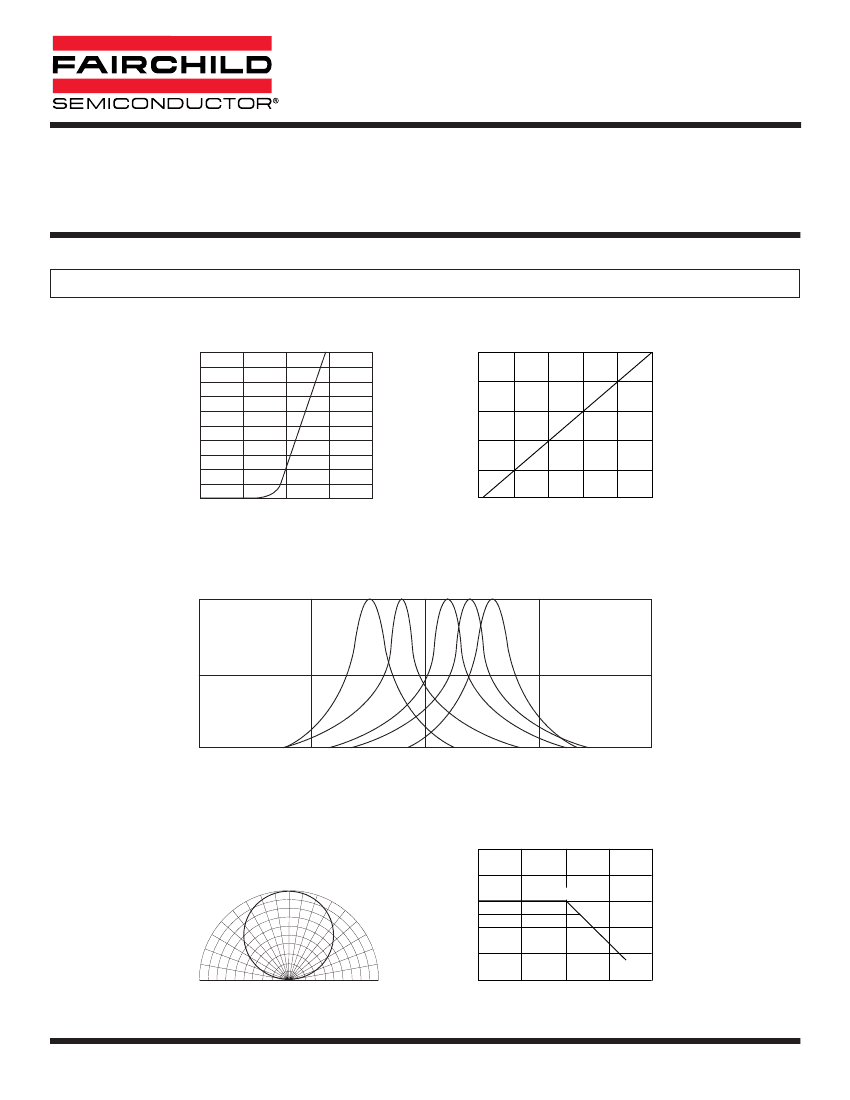

TYPICAL PERFORMANCE CURVES
(QTLP610C-R, -E, -O, -Y and -AG)
Fig. 1 Forward Current vs. Forward Voltage
100
90
80
70
60
50
40
30
20
10
0
1.0
1.5
2.0
2.5
3.0
2.5
Fig. 2 Relative Luminous Intensity
vs. DC Forward Current
RELATIVE LUMNOUS INTENSITY
(NORMALIZED AT 20 mA)
I
F
- FORWARD CURRENT (mA)
2.0
1.5
1.0
0.5
0.0
0
10
20
30
40
50
VF - FORWARD VOLTAGE (V)
I
F
- DC FORWARD CURRENT (mA)
Fig. 3 Relative Intensity vs. Peak Wavelength
1.0
AG
Y
O
E
R
RELATIVE INTENSITY
0.5
0
500
550
600
650
700
WAVELENGTH (nm)
Fig.4 Radiation Diagram
I
F
- FORWARD CURRENT (mA)
50
40
Fig.5 Maximum Forward Current
vs. Ambient Temperature
-30˚
-40˚
-50˚
-60˚
-70˚
-80˚
-20˚ -10˚
0˚ 10˚
20˚
30˚
40˚
50˚
60˚
70˚
80˚
R, E, O and AG
30
20
10
0
Y
-90˚
1.0 0.8 0.6 0.4
0.2 0
0.2
0.4 0.6 0.8 1.0
90˚
0
25
50
75
100
REL. LUMINOUS INTENSITY (%)
AMBIENT TEMPERATURE T
A
(˚C)
www.fairchildsemi.com
4 OF 8
8/30/01
DS300215
SURFACE MOUNT LED LAMP
SUPER BRIGHT RIGHT ANGLE
QTLP610C-R
Red
QTLP610C-Y
Yellow
QTLP610C-IB
Blue
QTLP610C-E
Orange
QTLP610C-AG
Yellow-Green
QTLP610C-O
Yellow-Orange
QTLP610C-IG
True Green
TYPICAL PERFORMANCE CURVES
(QTLP610C-IG and -IB)
Fig. 1 Forward Current vs. Forward Voltage
100
90
80
70
60
50
40
30
20
10
0
2.0
2.5
3.0
3.5
4.0
4.5
5.0
IG
IB
2.5
Fig. 2 Relative Luminous Intensity
vs. DC Forward Current
RELATIVE LUMNOUS INTENSITY
(NORMALIZED AT 20 mA)
I
F
- FORWARD CURRENT (mA)
2.0
1.5
1.0
0.5
0.0
0
10
20
30
40
50
V
F
- FORWARD VOLTAGE (V)
I
F
- DC FORWARD CURRENT (mA)
Fig. 3 Relative Intensity vs. Peak Wavelength
IB
1.0
IG
RELATIVE INTENSITY
0.5
0
400
450
500
550
600
650
WAVELENGTH (nm)
Fig.4 Radiation Diagram
I
F
- FORWARD CURRENT (mA)
50
40
30
20
10
0
Fig.5 Maximum Forward Current
vs. Ambient Temperature
-30˚
-40˚
-50˚
-60˚
-70˚
-80˚
-20˚ -10˚
0˚ 10˚
20˚
30˚
40˚
50˚
60˚
70˚
80˚
-90˚
1.0 0.8 0.6 0.4
0.2 0
0.2
0.4 0.6 0.8 1.0
90˚
0
25
50
75
100
REL. LUMINOUS INTENSITY (%)
AMBIENT TEMPERATURE T
A
(˚C)
DS300215
8/30/01
5 OF 8
www.fairchildsemi.com
