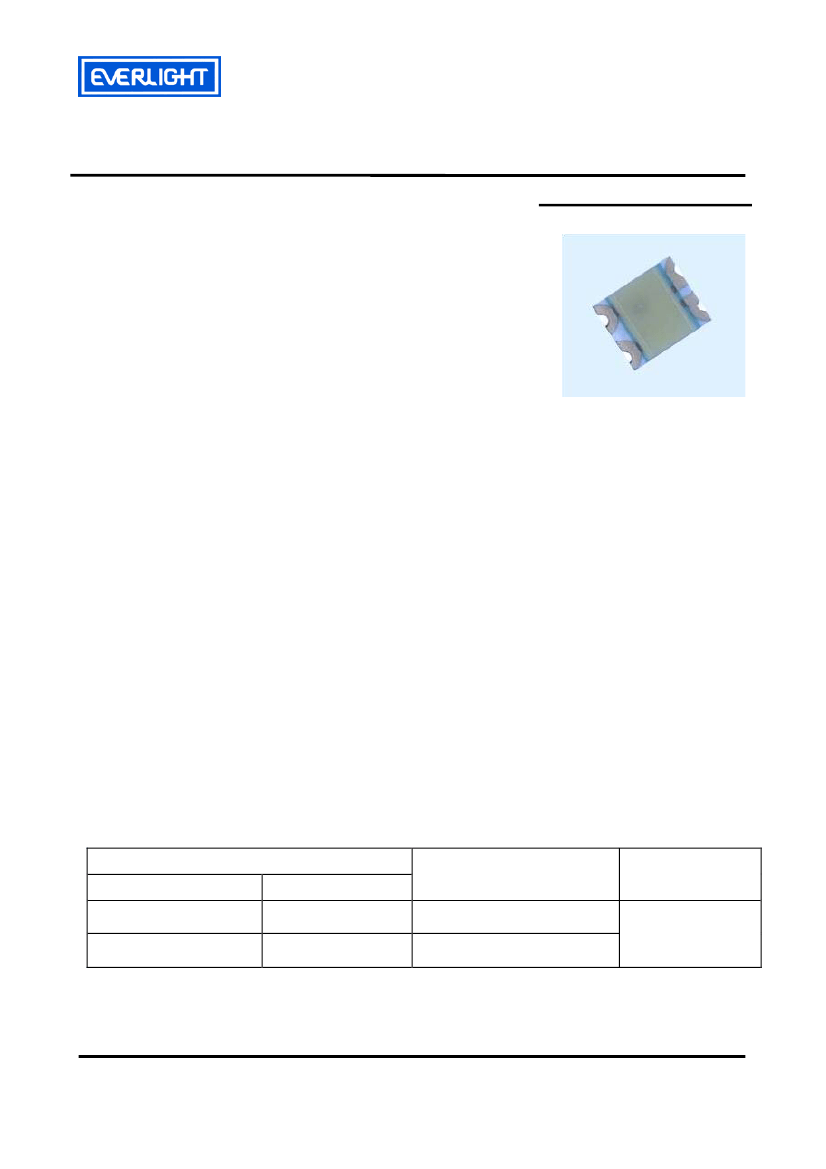

EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
Chip LED with Bi-Color(Multi-Color)
19-223/S2T1D-C30/2T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Multi-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
19-223 SMD LED is much smaller
than lead frame type components, thus
enable smaller board size, higher packing
density, reduced storage space and finally
smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Type
S2
T1
Material
AlGaInP
InGaN
Emitted Color
Brilliant Orange
Resin Color
Yellow Diffused
Pure White
Everlight Electronics Co., Ltd.
Device No:DSE-0000260
http://www.everlight.com
Prepared date:25-Oct.-2008
Rev 1
Page: 1 of 14
Prepared by: Wang zhiqin
EVERLIGHT ELECTRONICS CO.,LTD.
19-223/S2T1D-C30/2T
Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No:DSE-0000260
http://www.everlight.com
Prepared date:25-Oct.-2008
Rev 1
Page: 2 of 14
Prepared by: Wang zhiqin
EVERLIGHT ELECTRONICS CO.,LTD.
19-223/S2T1D-C30/2T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
P
d
I
F
Symbol
V
R
S2
T1
I
FP
S2
T1
S2
T1
ESD
Electrostatic Discharge (HBM)
T1
Operating Temperature
Storage Temperature
Soldering Temperature
Topr
Tstg
Tsol
150
-40 ~ +85
-40 ~ +90
℃
℃
S2
Rating
5
25
mA
25
60
mA
100
60
mW
95
2000
V
Unit
V
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Everlight Electronics Co., Ltd.
Device No:DSE-0000260
http://www.everlight.com
Prepared date:25-Oct.-2008
Rev 1
Page: 3 of 14
Prepared by: Wang zhiqin
EVERLIGHT ELECTRONICS CO.,LTD.
19-223/S2T1D-C30/2T
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Symbol
I
v
S2
T1
Min.
18.0
45.0
-----
-----
Typ.
----
----
140
611
-----
605
-----
17
Max.
45.0
112
-----
-----
-----
Unit
mcd
deg
nm
Condition
2θ1/2
λ
p
S2
T1
Dominant Wavelength
λ
d
S2
T1
-----
-----
-----
nm
-----
-----
-----
1.55
2.70
-----
-----
-----
2.15
3.30
10
50
μA
V
nm
I
F
=5mA
Spectrum Radiation
Bandwidth
△λ
S2
T1
Forward Voltage
V
F
S2
T1
Reverse Current
I
R
S2
T1
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No:DSE-0000260
http://www.everlight.com
Prepared date:25-Oct.-2008
Rev 1
Page: 4 of 14
Prepared by: Wang zhiqin
EVERLIGHT ELECTRONICS CO.,LTD.
19-223/S2T1D-C30/2T
S2
Bin Range Of Luminous Intensity
Bin
M
N
Min
18.0
28.5
Max
28.5
45.0
Unit
mcd
Condition
I
F
=5mA
T1
Bin Range Of Luminous Intensity
Bin
P
Q
Min
45.0
72.0
Max
72.0
112
Unit
mcd
Condition
I
F
=5mA
Notes:
1.Tolerance of Luminous Intensity
±11%
Everlight Electronics Co., Ltd.
Device No:DSE-0000260
http://www.everlight.com
Prepared date:25-Oct.-2008
Rev 1
Page: 5 of 14
Prepared by: Wang zhiqin
