EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
Full Color Chip LED
19-237B/R6GHBHC-C01/2T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Multi-color
type.
․Pb-free.
․The
product itself will remain within RoHS
compliant version.
Descriptions
․The
19-237B SMD LED is much smaller
than lead frame type components, thus
enable smaller board size, higher packing
density, reduced storage space and finally
smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Type
R6
GH
BH
Material
AlGaInP
InGaN
InGaN
Emitted Color
Brilliant Red
Brilliant Green
Blue
Water Clear
Resin Color
Everlight Electronics Co., Ltd.
Device No. : DSE-937-C01
http://www.everlight.com
Prepared date: 15-Aug-2008
Rev. 2
Page: 1 of 12
Prepared by : Ashley Kuo
Revision
:2
Release Date:2008-09-20 00:15:58.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
19-237B/R6GHBHC-C01/2T

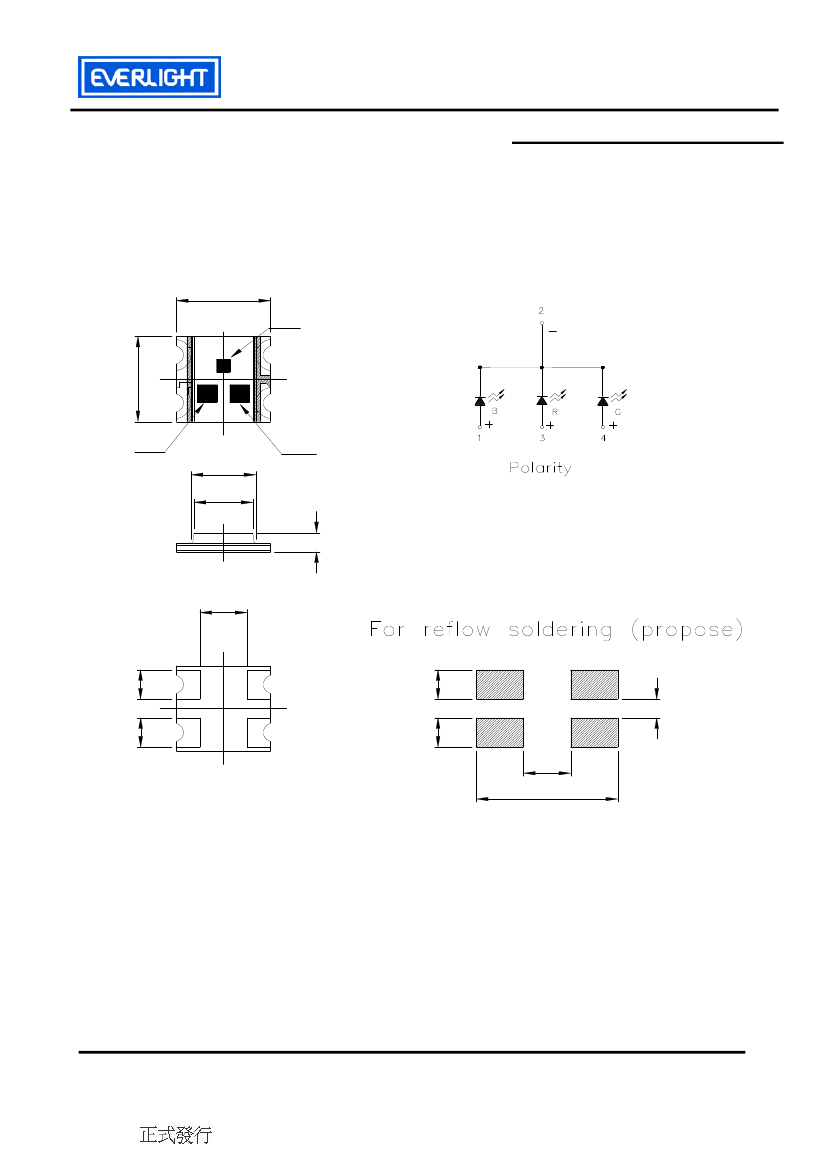

Package Outline Dimensions
1.6
Red
2
1.6
1
Blue
3
4
Green
1.1
1.0
0.35
0.8
1
0.55
4
0.55
1
4
0.35
0.55
2
3
0.55
2
0.8
2.4
3
Note:
The tolerances unless mentioned is
±0.1mm,Unit
= mm
Everlight Electronics Co., Ltd.
Device No. : DSE-937-C01
http://www.everlight.com
Prepared date: 15-Aug-2008
Rev. 2
Page: 2 of 12
Prepared by : Ashley Kuo
Revision
:2
Release Date:2008-09-20 00:15:58.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
19-237B/R6GHBHC-C01/2T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Symbol
V
R
Rating
5
R6:25
Forward Current
I
F
GH:25
BH:25
Peak Forward Current
(Duty 1/10 @1KHz)
R6:60
I
FP
GH:100
BH:100
R6:60
Power Dissipation
Pd
GH:110
BH:110
R6:2000
Electrostatic Discharge (HBM)
ESD
GH:150
BH:150
Operating Temperature
Storage Temperature
Soldering Temperature
Topr
Tstg
Tsol
-40 ~ +85
-40 ~ +90
℃
℃
V
mW
mA
mA
Unit
V
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Everlight Electronics Co., Ltd.
Device No. : DSE-937-C01
http://www.everlight.com
Prepared date: 15-Aug-2008
Rev. 2
Page: 3 of 12
Prepared by : Ashley Kuo
Revision
:2
Release Date:2008-09-20 00:15:58.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
19-237B/R6GHBHC-C01/2T
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
R6
Min.
18
28.5
11.5
-----
Typ.
30
60
18
120
632
Max.
57
112
28.5
-----
Unit
Condition
Luminous Intensity
Iv
GH
BH
mcd
Viewing Angle
2θ1/2
R6
deg
Peak Wavelength
λp
GH
BH
R6
-----
518
468
-----
nm
613
520
465
20
-----
35
35
1.7
2.6
2.6
2.0
3.0
3.0
----
627
535
475
nm
I
F
=5mA
Dominant Wavelength
λd
GH
BH
R6
Spectrum Radiation
Bandwidth
△λ
GH
BH
R6
-----
nm
2.2
3.3
3.3
10
V
Forward Voltage
V
F
GH
BH
R6
Reverse Current
I
R
GH
BH
-----
-----
50
50
μA
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Dominant Wavelength
±1nm
3
.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No. : DSE-937-C01
http://www.everlight.com
Prepared date: 15-Aug-2008
Rev. 2
Page: 4 of 12
Prepared by : Ashley Kuo
Revision
:2
Release Date:2008-09-20 00:15:58.0
Expired Period: Forever
LifecyclePhase:
EVERLIGHT ELECTRONICS CO.,LTD.
19-237B/R6GHBHC-C01/2T

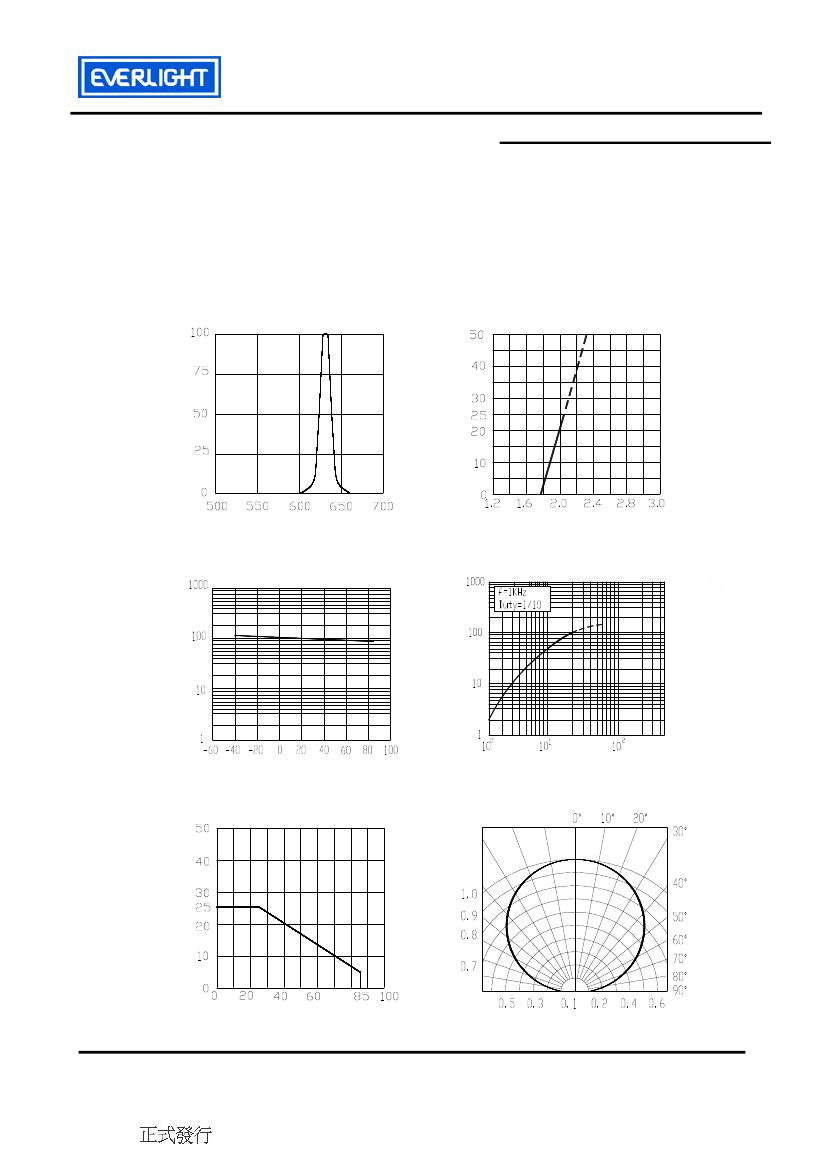

Typical Electro-Optical Characteristics Curves
R6
Spectrum Distribution
Ta=25°C
Relative luminous intensity (%)
Forward Current F (mA)
I
Forward Current vs.
Forward Voltage
Ta=25°C
Wavelength λ (nm)
Luminous Intensity vs.
Ambient Temperature
Relative luminous intensity ( )
%
Relative luminous intensity ( )
%
Forward Voltage V
F
(V)
Luminous Intensity vs.
Forward Current
Ta=25°C
Ambient Temperature Ta (°C)
Forward Current Derating Curve
Radiation Diagram
Ta=25°C
Forward Current F (mA)
I
Ambient Temperature Ta (°C)
Everlight Electronics Co., Ltd.
Device No. : DSE-937-C01
http://www.everlight.com
Prepared date: 15-Aug-2008
Rev. 2
Page: 5 of 12
Prepared by : Ashley Kuo
Revision
:2
Release Date:2008-09-20 00:15:58.0
Expired Period: Forever
LifecyclePhase:
