Preview

5272-37F: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size224KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

5272-37F Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking, Plug

5272-37F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.585 inch
body length	2.732 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5272
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.794 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Terminal length	0.15 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

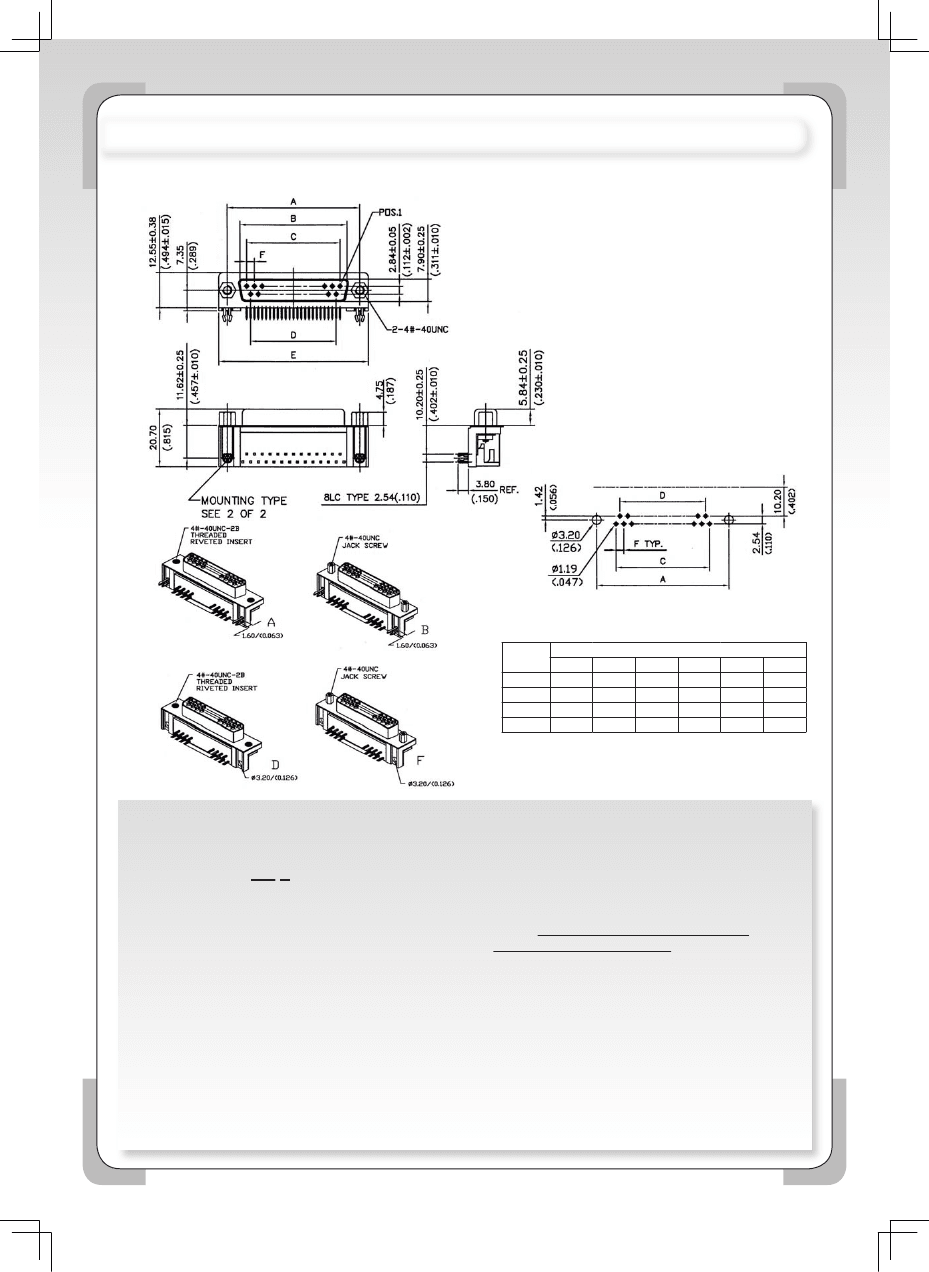

EUROPEAN STANDARD D-SUB. FEMALE CONNECTOR RIGHT ANGLE TYPE (9.4MM)

SPECIFICATIONS

Current Rating:

3.0 Amperes

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

Recommended P.C.Board Layout

A MOUNTING TYPE

B MOUNTING TYPE

No. of

Contacts

A±0.13

09

24.99

15

33.32

25

47.04

37

63.50

Dimensions(mm)

B±0.25 C±0.13 D±0.13

16.33 10.96

8.22

24.66 19.19 16.44

38.38 33.24 30.47

54.84 49.86 47.09

E±0.38 F±0.05

30.89

2.74

39.10

2.74

53.09

2.77

69.40

2.77

D MOUNTING TYPE

F MOUNTING TYPE

ORDERING INFORMATION:

P/N 5 2 7 2 - x x x

1 2

1. NO. OF CONTACTS:

09, 15, 25, 37

2. MOUNTING TYPE:

"A" WITH BOARDLOCK GROUNDING

BRACKET & WITH UNC4-40

THREADED RIVETED INSERT

"B" WITH BOARDLOCK GROUNDING

BRACKET & SCREW LOCK

"D" WITH Ø3.2MM MOUNTING HOLE

& UNC4-40 THREADED

RIVETED INSERT

"F" WITH Ø3.2MM MOUNTING HOLE

& WITH SCREW LOCK

NOTE: THE SPECIFICATION CONFORMS

TO EUROPEAN STANDARD:

* CONTACT EXTENTION: 9.4MM

* CONTACT CENTER SPACING: 2.54MM

C0058

5272-37F Related Products

	5272-37F	5272-09F	5272-15F
Description	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking, Plug	D Type Connector, 9 Contact(s), Female, 0.107 inch Pitch, Solder Terminal, Locking, Plug	D Type Connector, 15 Contact(s), Female, 0.107 inch Pitch, Solder Terminal, Locking, Plug
Is it Rohs certified?	conform to	conform to	conform to
Maker	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics
Reach Compliance Code	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch
subject depth	0.585 inch	0.585 inch	0.585 inch
body length	2.732 inch	1.216 inch	1.539 inch
Body/casing type	PLUG	PLUG	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5272	5272	5272
Plug contact pitch	0.109 inch	0.107 inch	0.107 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.794 mm	2.794 mm	2.794 mm
Rated current (signal)	3 A	3 A	3 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Terminal length	0.15 inch	0.15 inch	0.15 inch
Terminal pitch	2.7686 mm	2.7178 mm	2.7178 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	37	9	15
Base Number Matches	-	1	1
