ASA2-FREQ-L-J-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASA2-FREQ-L-J-T

ASA2-FREQ-L-J-T: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Min, 80MHz Max; CategoryPassive components oscillator; File Size303KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASA2-FREQ-L-J-T Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Min, 80MHz Max

ASA2-FREQ-L-J-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRI-STATE FUNCTION; SYMMETRY 45/55 POSSIBLE
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	ASA
Installation features	SURFACE MOUNT
Maximum operating frequency	80 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	3 TTL, 15 pF
physical size	2mm x 1.6mm x 0.7mm
longest rise time	10 ns
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

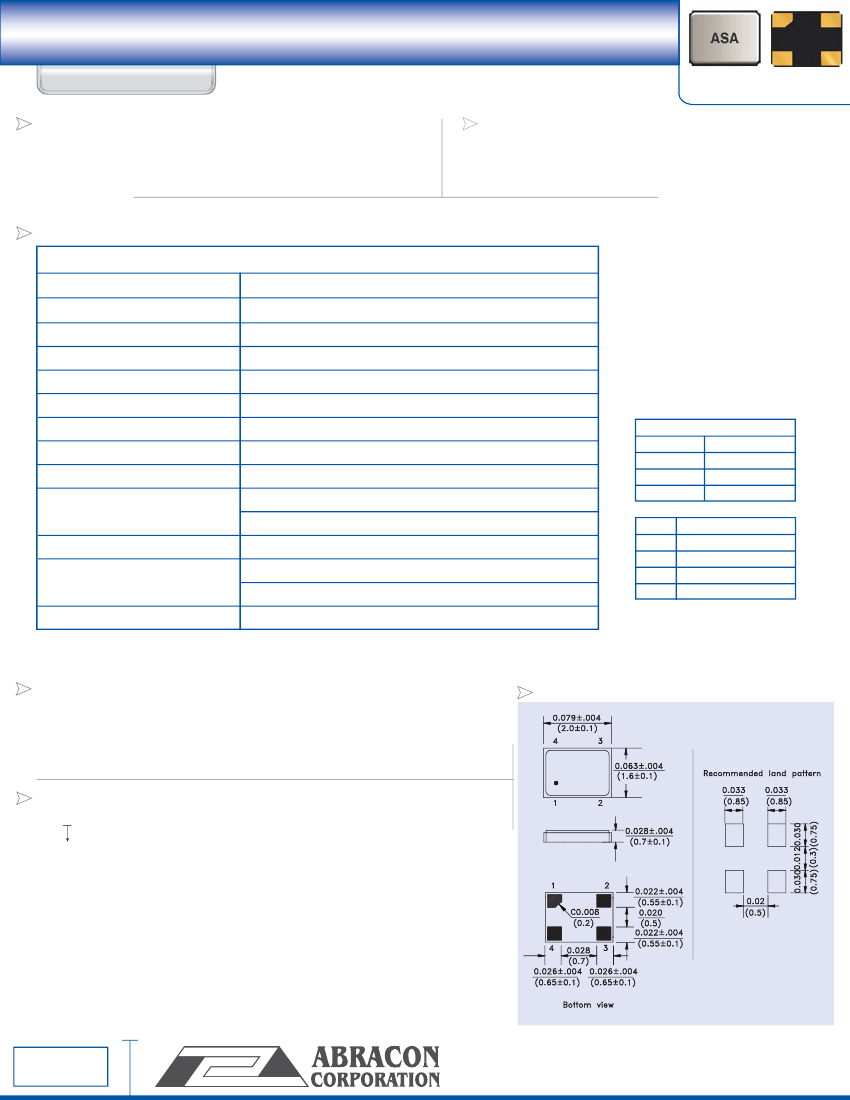

HCMOS SURFACE-MOUNT CRYSTAL CLOCK OSCILLATOR

ASA SERIES

FEATURES:

• Pb-Free/RoHS Compliant

• Smallest industry package

• Tri state function

: PRELIMINARY

• Suitable for high density SMT.

Reflow capable

• Hermetically sealed

*RoHS COMPLIANT

APPLICATIONS:

• CCD clock for VTR camera

• Computers and peripherals

• Portable electronics

2.0 X 1.6 X 0.7mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

Frequency Range

Operating Temperature

Storage Temperature

Overall Frequency Stability

Supply Voltage (Vdd)

Input Current

Symmetry

Rise and Fall Time (Tr/Tf)

Output Load

Output Voltage

Start-up Time

Tristate Function

(stand-by)

Aging at 25°C/year

1.000 MHz to 80 MHz

-10°C to + 60°C (See Options)

- 40°C to + 85°C

± 50 ppm max. (see options)

See Table 1

20mA max

40/60 % max.@ 1/2Vdd (see options)

10ns max

15 pF (3TTL)

VOH = 0.9* Vdd min.

VOL = 0.1* Vdd max.

10ms max.

"1" (VIH >= 0.7* Vdd) or open: Oscillation

"0" (VIL < 0.3* Vdd) : No oscillation/Hi Z

± 5ppm max.

TABLE 1

P/N

Vdd (V)

ASA

3.3

±0.1

2.5

±0.1

ASA1

1.8

±0.1

ASA2

FUNCTION

Tri-State

GND/Case

Output

Vdd

* "H" or "open": Oscillation

"L": Oscillation stops/Hi impedance

Note: Decoupling capacitor shall be connected between Vdd and GND for best performance and stability.

MARKING:

- XX.X R

- A1 ZYW

(XX.X

First 3 digits of frequency)

(Z: month A to L; Y: year 4 for 2004

W: Traceability code (A-Z))

(1 for ASA1, 2 for ASA2, None for ASA)

OUTLINE DRAWING:

OPTIONS AND PART IDENTIFICATION (Left blank if standard):

ASAX - Frequency - Temperature - Overall Frequency Stability - Packaging

Vdd options:

Blank

(3.3Vdc±0.1V),

(2.5Vdc±0.1V),

(1.8Vdc±0.1V)

(See table 1)

Symmetry option:

for 45/55% at 1/2Vdd

Packaging option:

T for Tape and Reel (1,000pcs/reel, Dia.180mm)

Temperature options:

for -20°C to +70°C

for -30°C to +70°C

for -30°C to +85°C

for -40°C to +85°C

rev2.1-4/06

Overall Frequency stability options:

R15

for ± 15 ppm max.

for ± 20 ppm max.

*Please contact factory

for ± 30 ppm max.

for frequency stability /

temperature range options.

for ± 50 ppm max.

Dimensions: inch (mm)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
