MTE8800C

Infrared Emitter

Features:

• High Output Power

• Parallel Rays

• High Reliability in Demanding Environments

Applications:

• Optical Switches

• Linear Rotary Encoder

Absolute Maximum Ratings (Ta=25ºC)

Items

Forward Current (DC)

Forward Current (Pulse)

*1

Reverse Voltage

Power Dissipation

Operating Temperature

Storage Temperature

Junction Temperature

Lead Soldering Temp

*2

Symbol

IF

IFP

VR

PD

Topr

Tstg

Tj

Tsol

Ratings

60

0.5

5

100

-20 ~ +85

-30 ~ +100

100

260

Unit

mA

A

V

mW

ºC

*1: Tw=10μS, T=10mS

*2: Time 5 Sec max, Position: Up to 3mm from the body.

Anode

Cathode

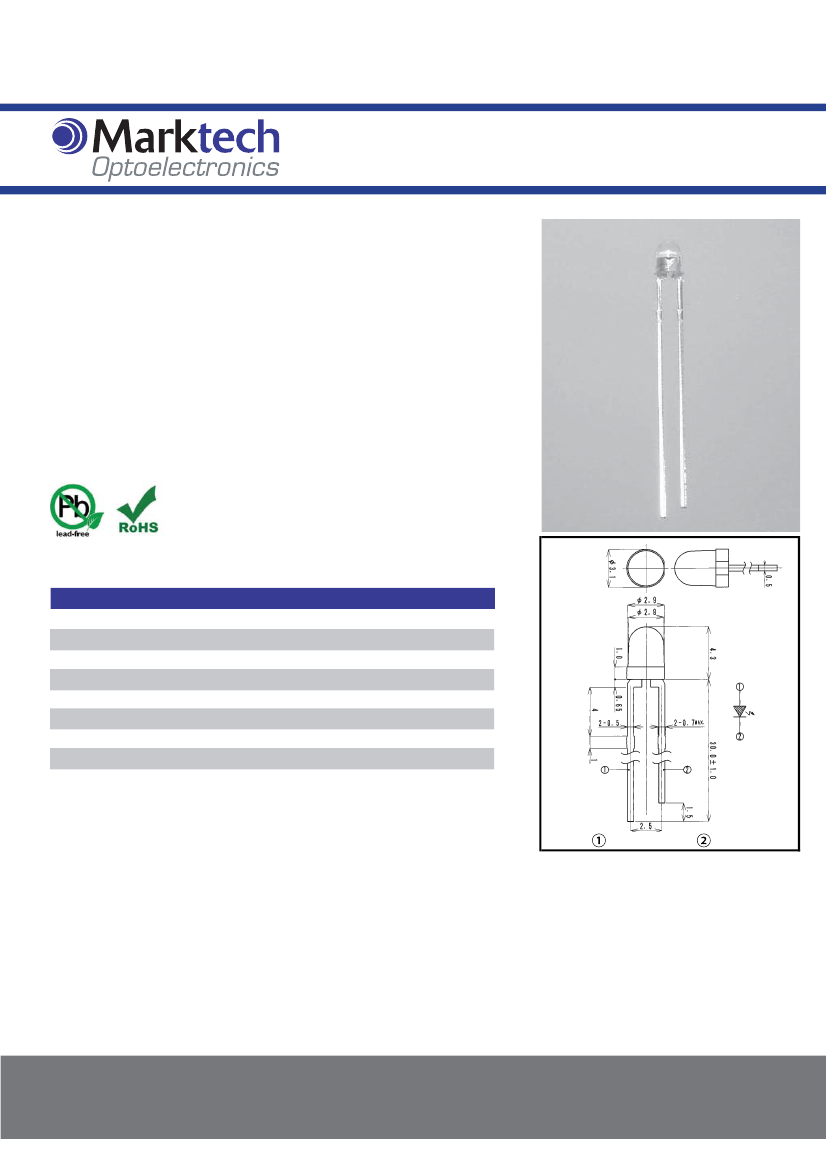

Dimensions (Unit:mm)

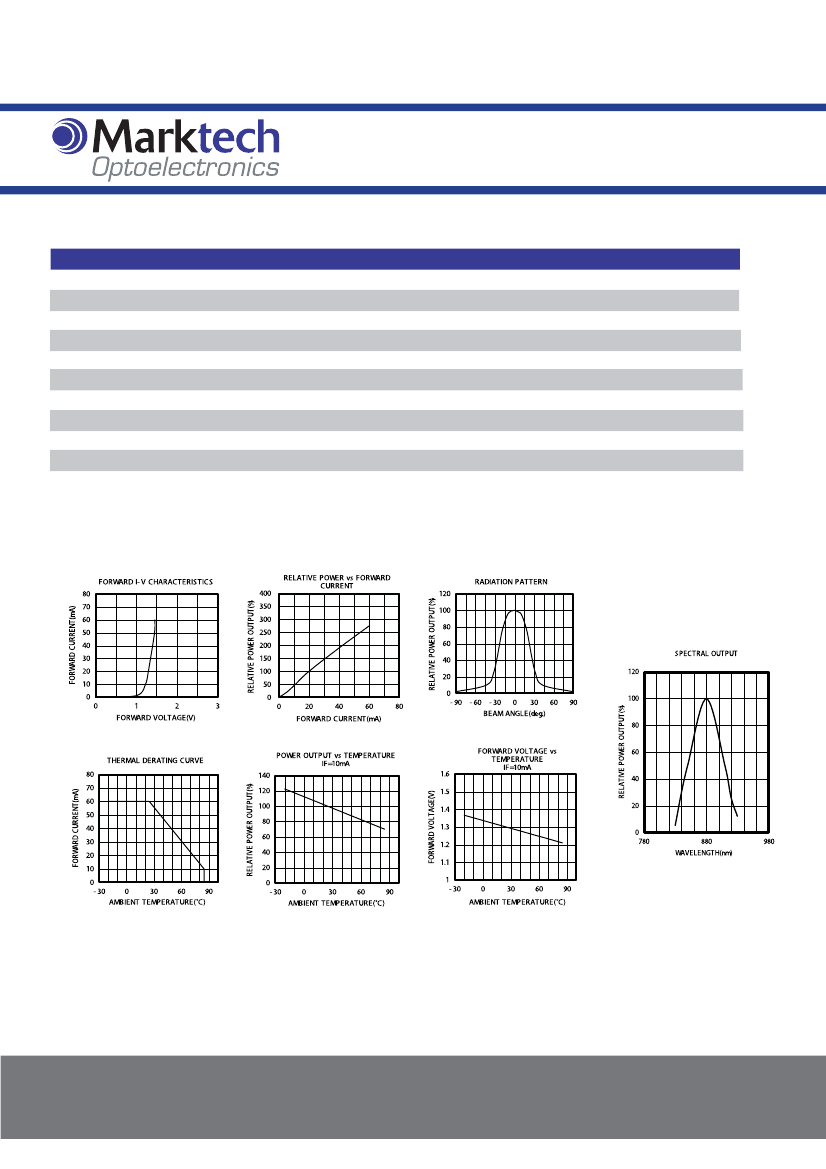

www.marktechopto.com

800.984.5337
