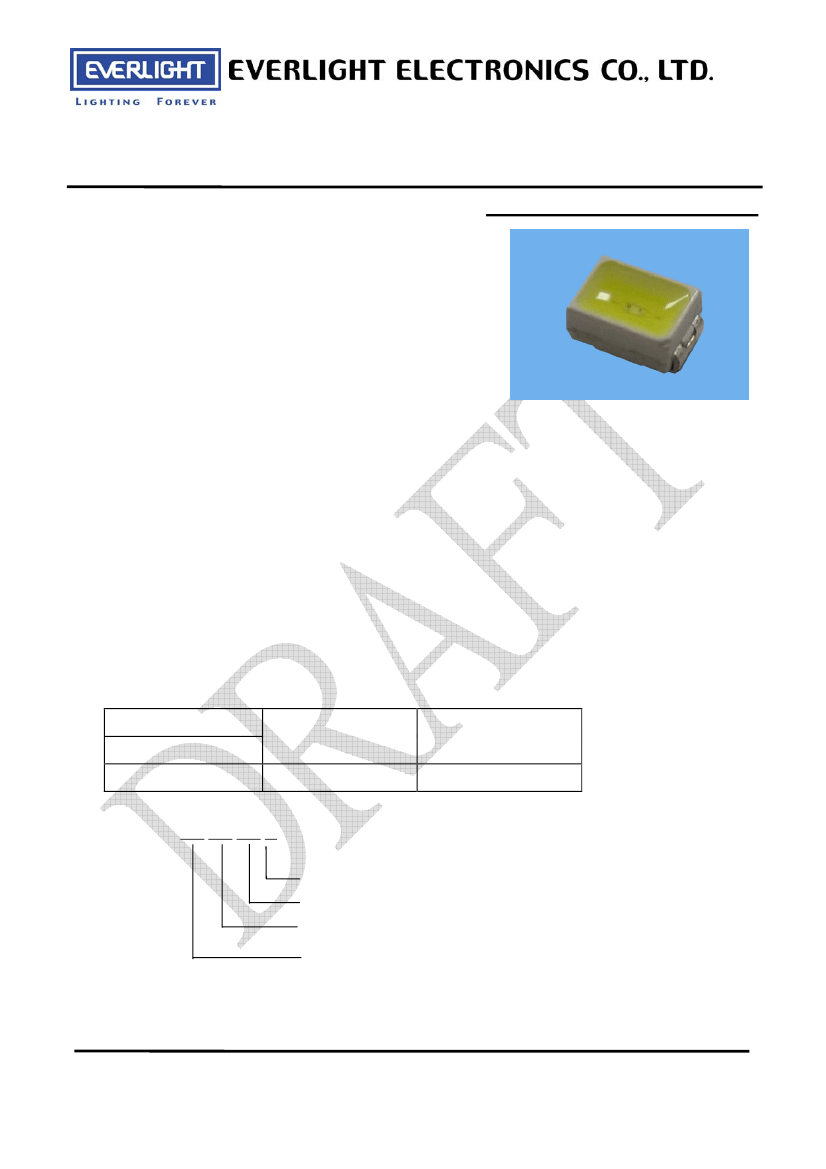

Technical Data Sheet
Top View White LEDs
45-21UMC/XXXXXXX/TR8
Features
․Top
View White LEDs
․Lead
frame package with individual 2 pins
․Wide
viewing angle
․Soldering
methods: IR reflow soldering
․Pb-free
․The
product itself will remain within RoHS compliant
version.
Descriptions
․Due
to the package design, 45-21 has wide viewing angle, low power consumption and white
LEDs are devices which are materialized by combing blue chips and special phosphor. This
feature makes the LED ideal for light guide application.
Applications
․LCD
back light
․Mobile
phones
․Indicators
․Illuminations
․Switch
Lights
Device Selection Guide
Chip
Material
InGaN
Emitted Color
White
Resin Color
Water Clear
Coding:
45-21UMC/XX XX XX X/TR8
Bin Group of Forward Voltage
Bin Group of Chromaticity Coordinates
Bin Code of Max. Luminous Intensity
Bin Code of Min. Luminous Intensity
Everlight Electronics Co., Ltd.
Device No. : DSE-0000098
http://www.everlight.com
Prepared date: 13-May-2010
Rev. 4
Page: 1 of 17
Prepared by: Marry
Technical Data Sheet
Top View White LEDs
45-21UMC/XXXXXXX/TR8

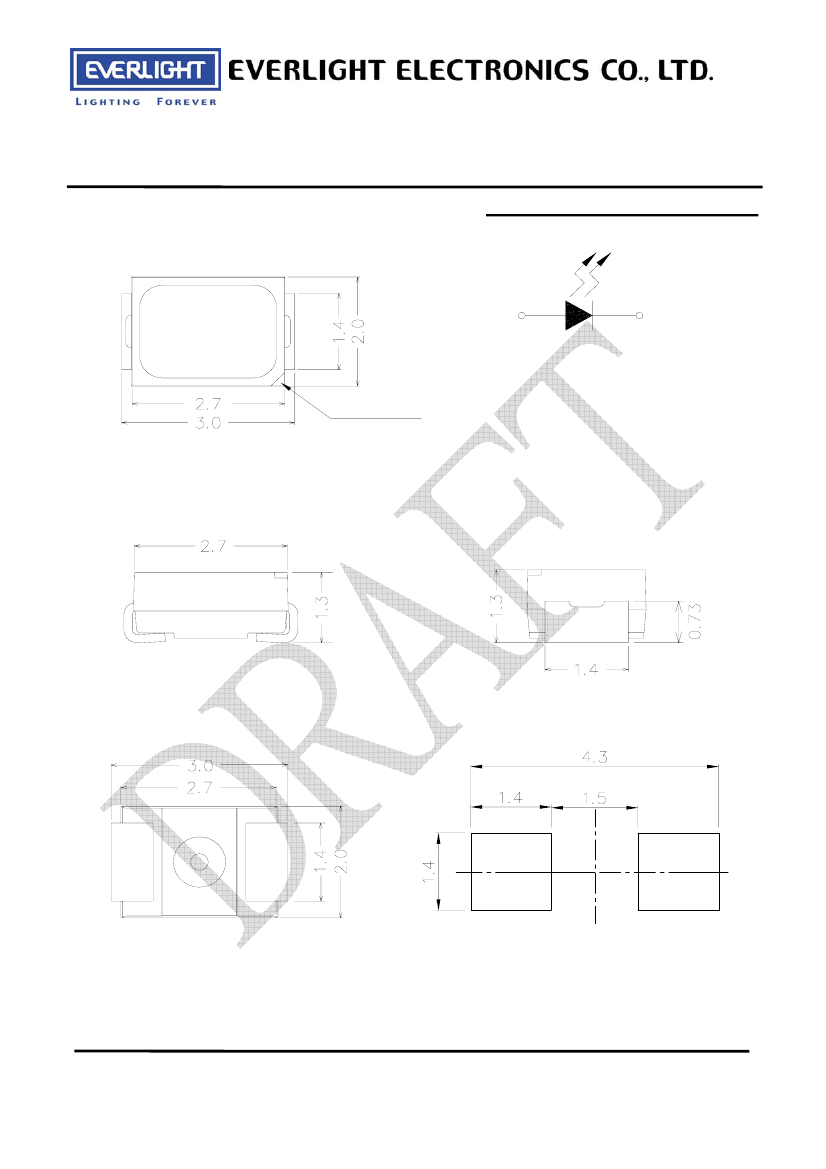

Package Outline Dimensions
Polarity
Cathode Mark
Recommended soldering pad design
Note:
Tolerances unless dimension are ±0.1mm, unit = mm.
Everlight Electronics Co., Ltd.
Device No. : DSE-0000098
http://www.everlight.com
Prepared date: 13-May-2010
Rev. 4
Page: 2 of 17
Prepared by: Marry
-
+
Technical Data Sheet
Top View White LEDs
45-21UMC/XXXXXXX/TR8
Absolute Maximum Ratings (Ta=25
℃
)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current (Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Tsol
Rating
5
30
100
110
1000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering: 260
℃
for 10 sec.
Hand Soldering: 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25
℃
)
Parameter
Viewing Angle
Luminous Intensity
Forward Voltage
Reverse Current
Symbol
2θ1/2
I
V
V
F
I
R
Min.
-----
1200
2.80
-----
Typ.
120
-----
-----
-----
Max.
-----
2200
3.55
50
Unit
deg
mcd
V
μA
Condition
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
Notes:
1. Tolerance of Luminous Intensity
±11%
2. Tolerance of Forward Voltage
±0.05V
Everlight Electronics Co., Ltd.
Device No. : DSE-0000098
http://www.everlight.com
Prepared date: 13-May-2010
Rev. 4
Page: 3 of 17
Prepared by: Marry
Technical Data Sheet
Top View White LEDs
45-21UMC/XXXXXXX/TR8
Bin Range of Luminous Intensity
Bin Code
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
Min.
1200
1250
1300
1350
1400
1450
1500
1550
1600
1650
1700
1750
1800
1850
1900
1950
2000
2050
2100
2150
Max.
1250
1300
1350
1400
1450
1500
1550
1600
1650
1700
1750
1800
1850
1900
1950
2000
2050
2100
2150
2200
Unit
Condition
mcd
I
F
=20mA
Notes:
1. Tolerance of Luminous Intensity
±11%
Everlight Electronics Co., Ltd.
Device No. : DSE-0000098
http://www.everlight.com
Prepared date: 13-May-2010
Rev. 4
Page: 4 of 17
Prepared by: Marry
Technical Data Sheet
Top View White LEDs
45-21UMC/XXXXXXX/TR8
Bin Range of Forward Voltage
Group
Bin Code
6-1
1
0
2
3
7
4
5
6
8
6-2
7-1
7-2
8-1
8-2
Min.
2.95
3.05
3.15
3.25
3.35
3.45
Max.
3.05
3.15
3.25
3.35
3.45
3.55
V
I
F
=20mA
Unit
Condition
Group
Bin Code
6-11
6-2
Min.
3.00
3.05
3.15
3.25
3.35
3.45
Max.
3.05
3.15
3.25
3.35
3.45
3.50
Unit
Condition
9
7-1
7-2
8-1
8-11
V
I
F
=20mA
Group
Bin Code
5-1-3
5-2-3
K
H
E
6-1-3
F
6-2-3
7-1-3
7-2-3
8-1-3
Min.
2.80
2.90
3.00
3.10
3.20
3.30
3.40
Max.
2.90
3.00
3.10
3.20
3.30
3.40
3.50
Unit
Condition
R
C
L
N
B
V
I
F
=20mA
Note:
Tolerance of Forward Voltage: ±0.05V
